Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail

1 / 5

Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

SGM-IIK

Material

Titanium Alloy

Product Name

Proximal Femoral Nail, Long

Diameter

9.0/10.0/11.0mm

Angle

130°

Length

320-420mm

Origin

China

Capacity

10,000 Sets/Year

Product Description

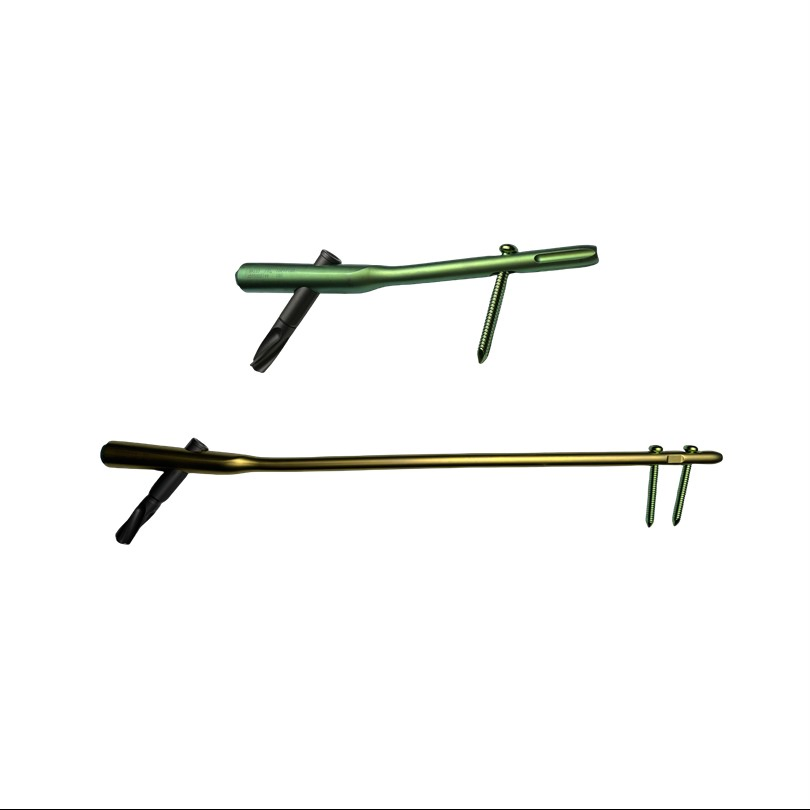

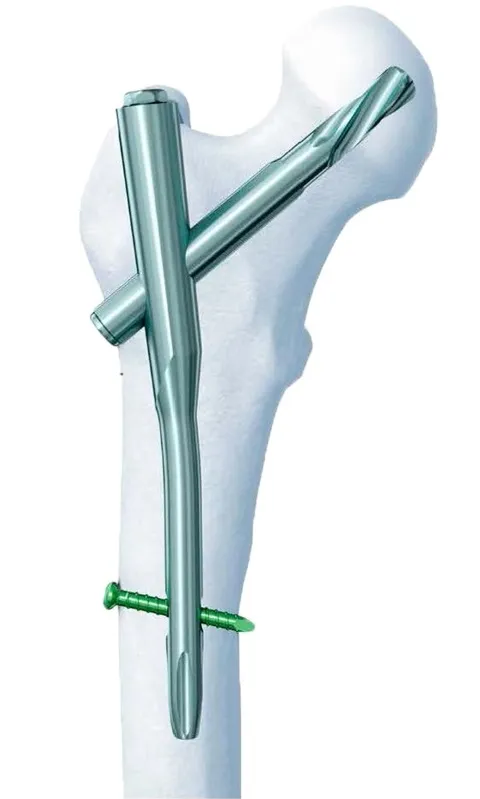

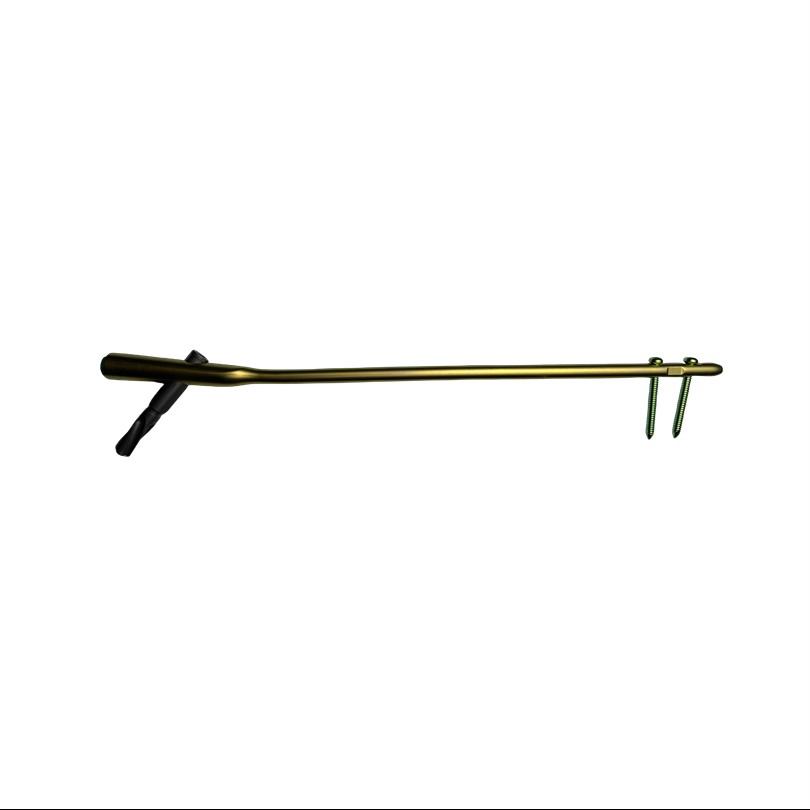

Proximal Femoral Nail System

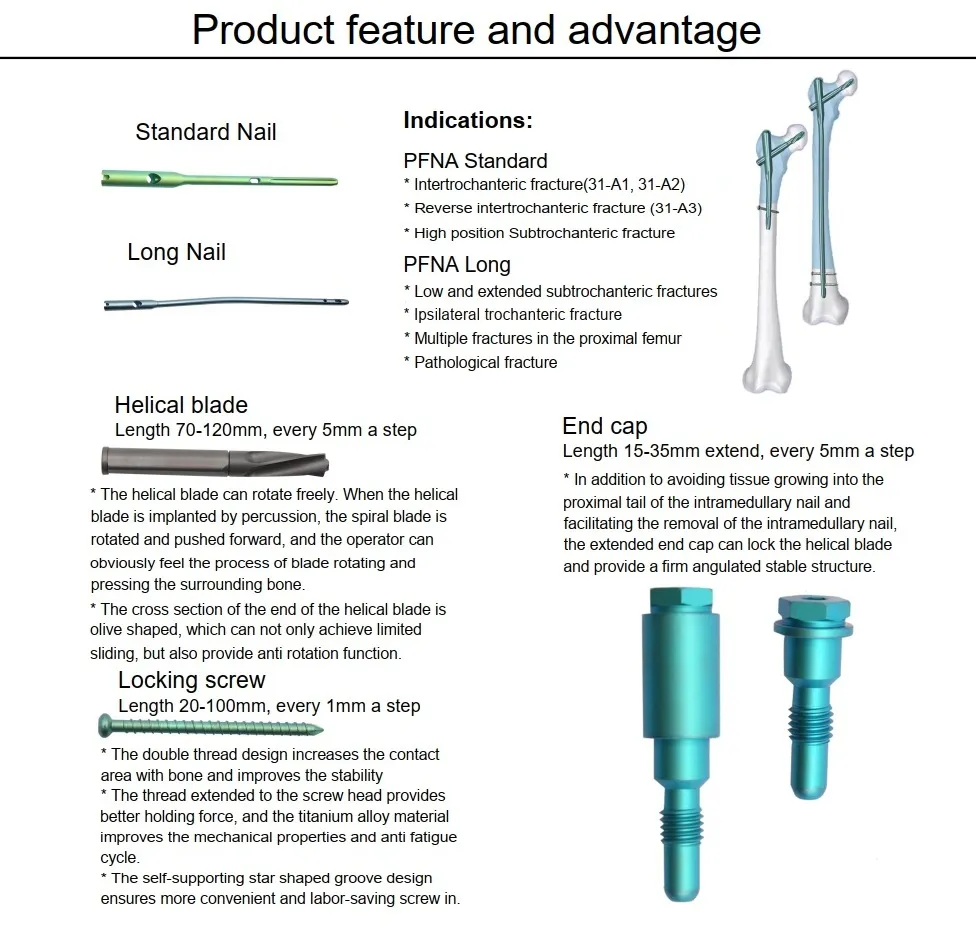

Product Features:

Medial-lateral angle of 5°, allowed to be placed from the top of the greater trochanter.
The flattened proximal lateral design makes it easier for nail insertion.
Optimal stress distribution throughout the implant.
Elastic tip and groove design simplify nail insertion and avoid distal stress concentration.

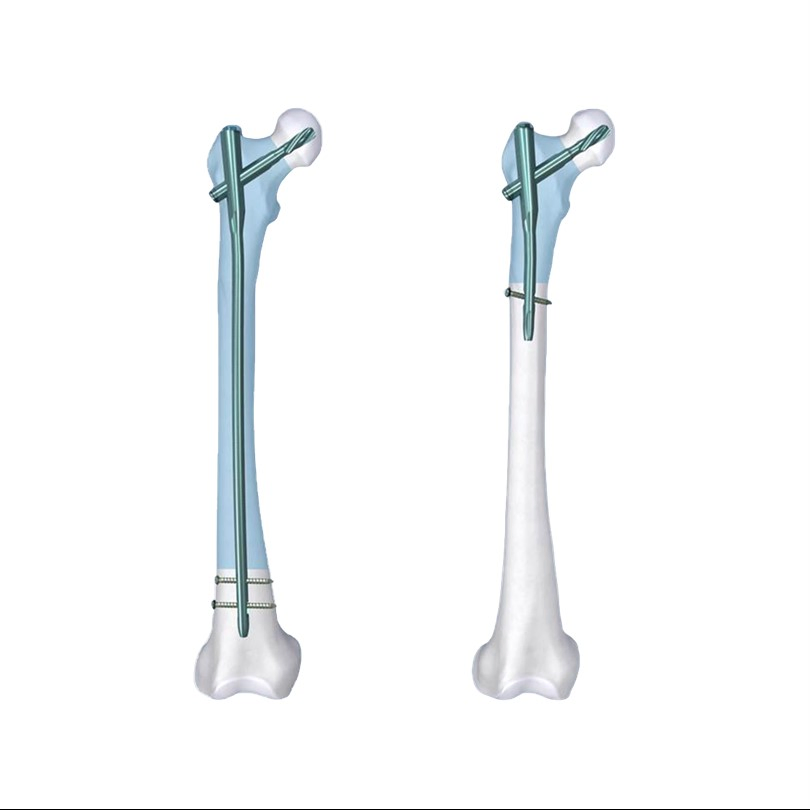

Indications

PFNA Standard:

Intertrochanteric fracture (31-A1, 31-A2)
Reverse intertrochanteric fracture (31-A3)
High position Subtrochanteric fracture

PFNA Long:

Low and extended subtrochanteric fractures
Ipsilateral trochanteric fracture
Multiple fractures in the proximal femur
Pathological fracture

Product Name	Specification
Proximal Femoral Nail	Diameter: 9.0-12.0mm \| Angle: 130° \| Length: 170-240mm

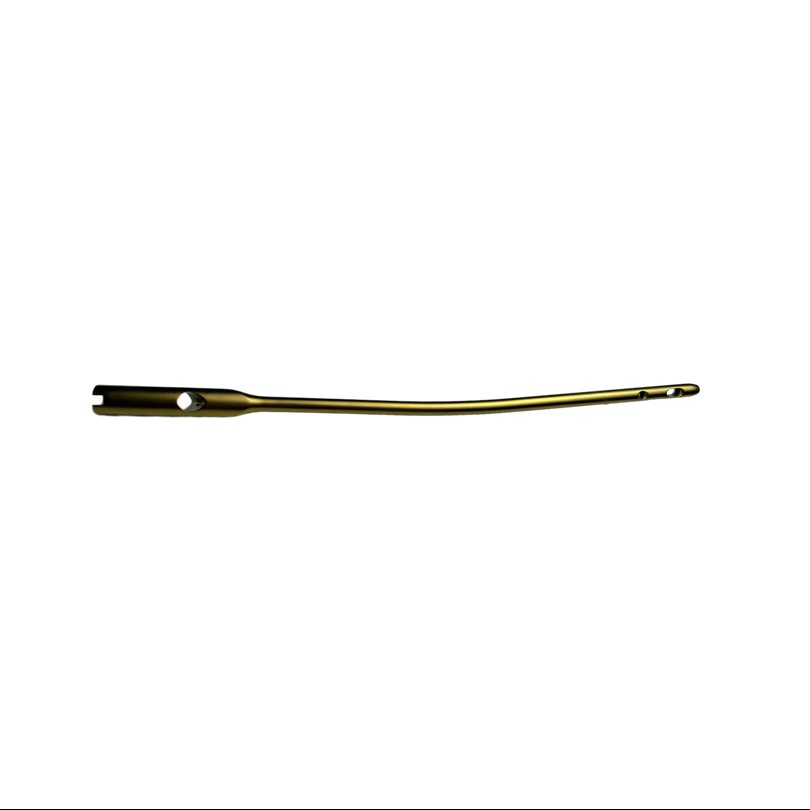

Proximal Femoral Nail, Long	Diameter: 9.0-11.0mm \| Angle: 130° \| Length: 320-420mm

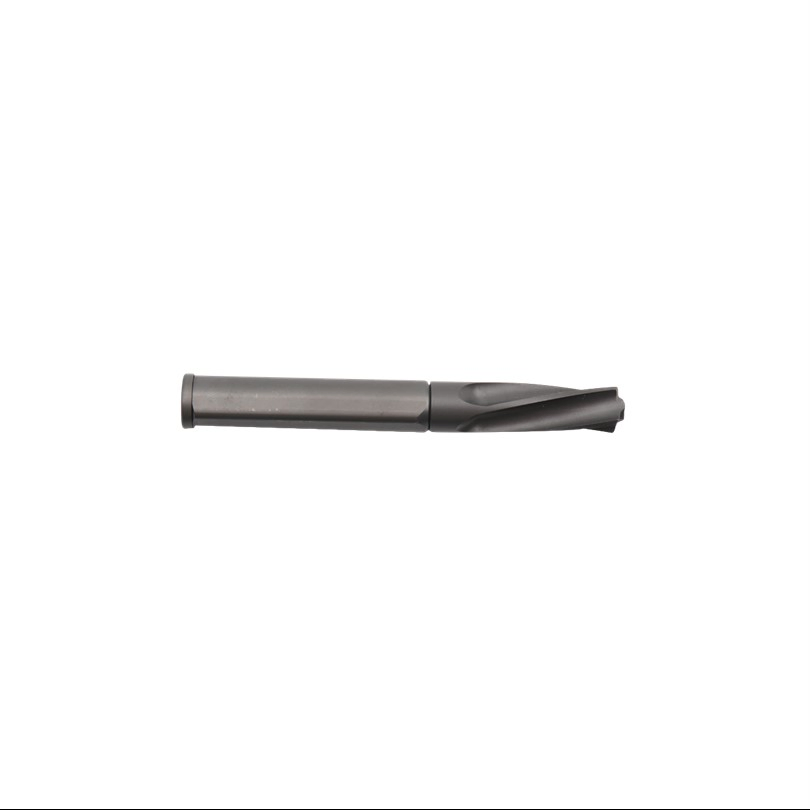

Helical Blade	Diameter: 10.5mm \| Length: 70-120mm
Locking Bolt	Diameter: 4.9mm \| Length: 30-72mm
End Cap	Diameter: 10mm \| Length: 15-35mm

Packing & Delivery

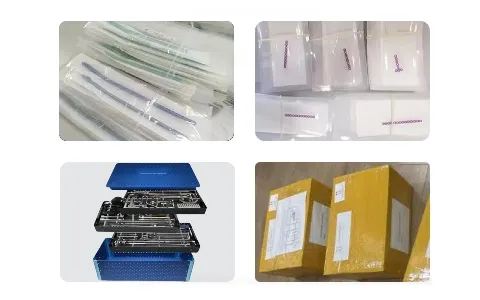

Packing Details:

Implants: Inner plastic bag + outer carton box.

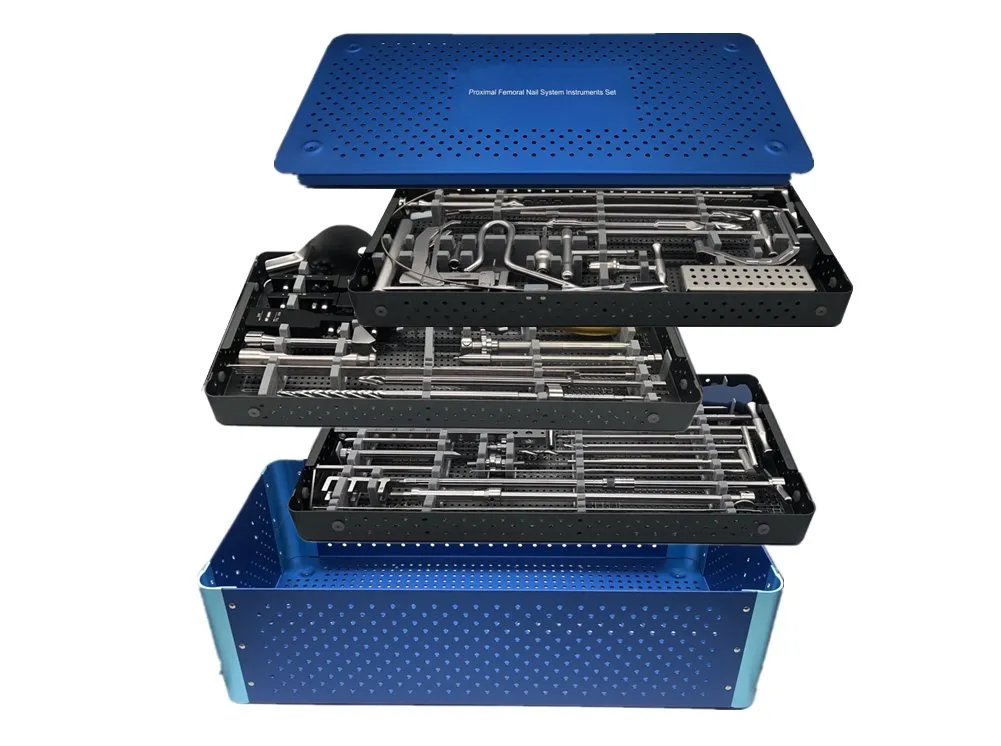

Instruments Set: Inner instruments box + outer carton box.
Customized packing design service also available.

Delivery Way:

By air, DHL, UPS, FedEx, etc.

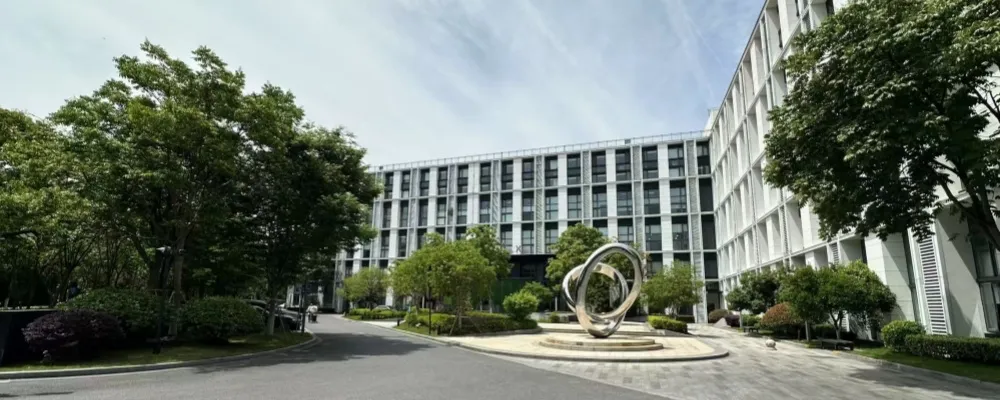

Company Capacity & Factory

One-stop Orthopedic Solution:

Capacity: 10,000 units/month.
Global Reach: Exported to Southeast Asia, Middle East, Latin America, Africa, and Europe.
Main Products: Spinal surgery series, metallic bone plates/screws, and intramedullary nails.

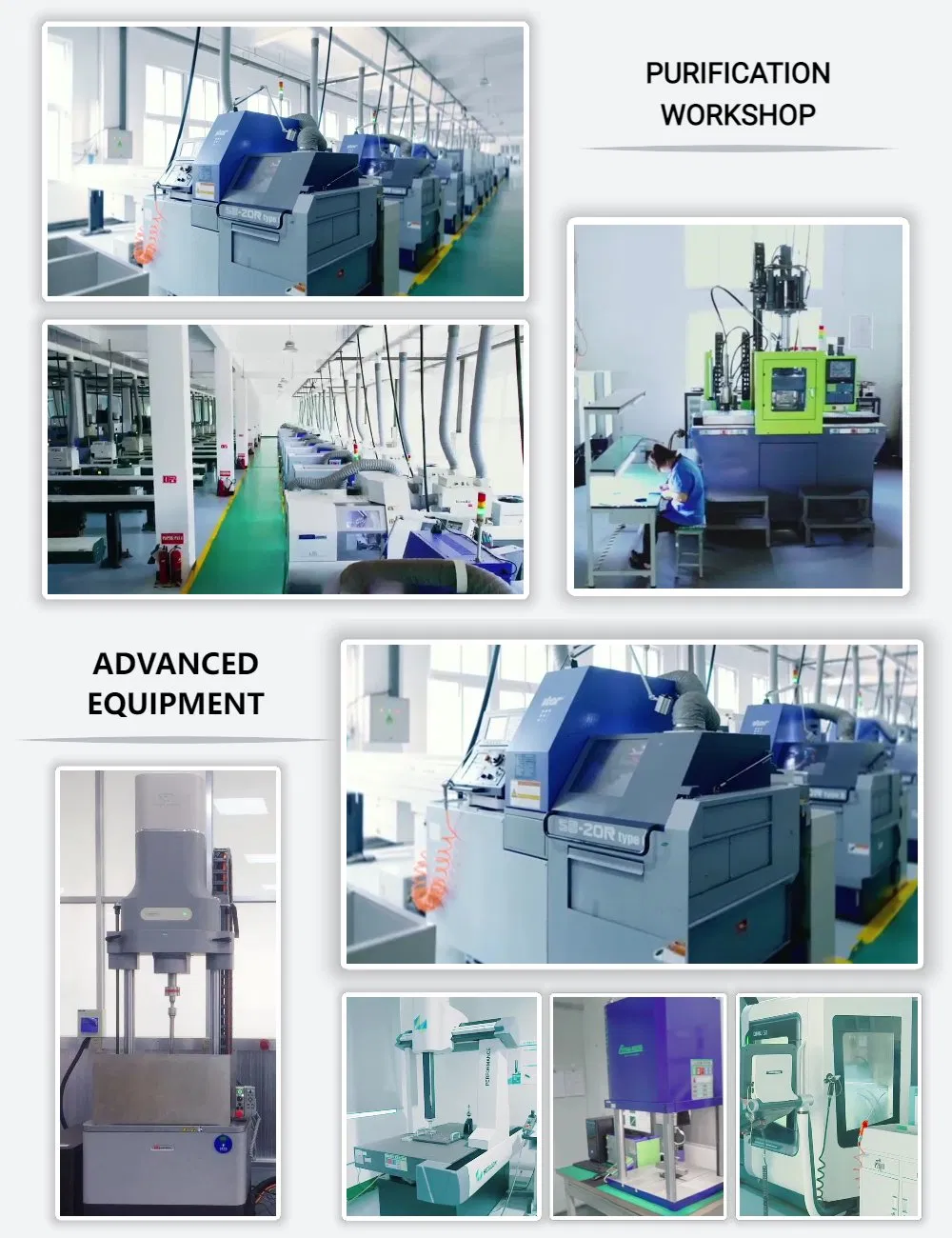

Factory Advantages:

Covers an area of 30,000 square meters.
High-end CNC machining equipment imported from the USA.
Advanced quality detection equipment imported from Japan.

Certifications & Exhibitions

Frequently Asked Questions

Do you have ISO 9001 or ISO 13485?

Yes, we are an ISO 9001:2015 and EN ISO 13485:2016 Certified Company.

What is the material used for the Proximal Femoral Nail?

The system is made of high-quality Titanium Alloy for optimal biocompatibility and strength.

What are the available shipping modes and charges?

Normally we send via DHL express or other post services upon client request. Charges depend on weight and destination.

What is your typical delivery time?

Generally it is 15-30 days if the goods are in stock. For non-stock items, it takes 30-60 days depending on the quantity.

Do you provide samples for testing?

Yes, we can offer samples, though they are provided at an extra price.

What is your return policy for defective goods?

For defective goods, please provide photos for confirmation, and we will arrange a replacement.
