Nx Medical Retrograde Tibial Nail Orthopedic Implant Intramedullary Nail for Internal Fixation

Still deciding? Get samples of $ !
Request Sample

Product Description

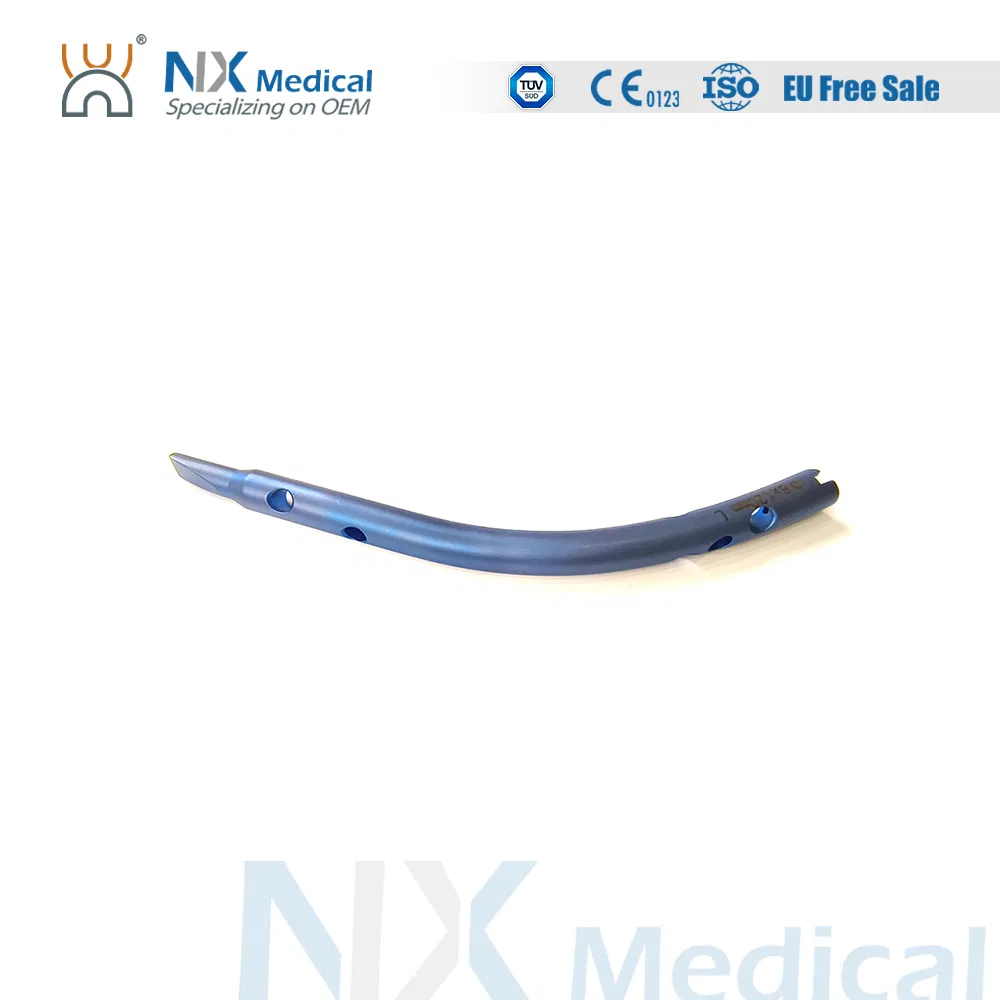

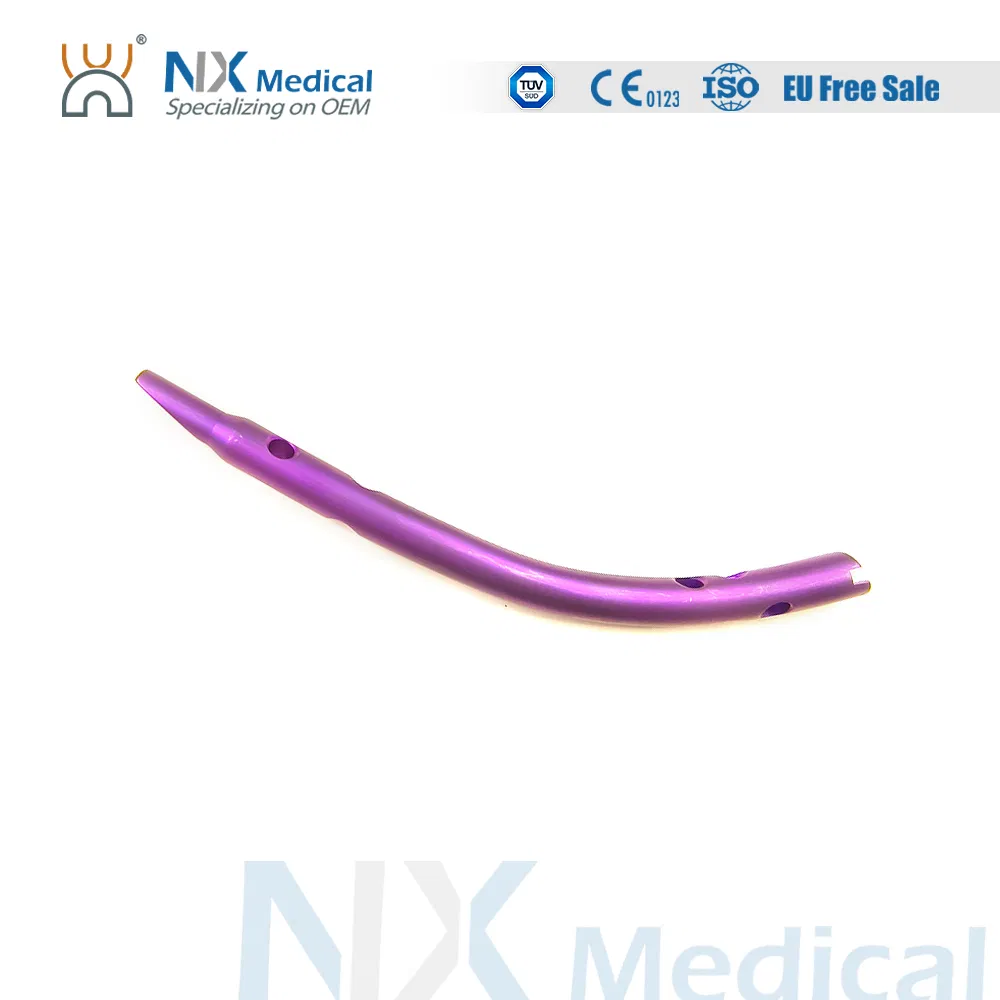

Retrograde Tibial Nail Orthopedic Implant
Retrograde Tibial Nail Internal Fixation

Basic Information

Sterilization:Without Ethylene Oxide Sterilization
Quality Guarantee:Two Years
Group:Adult
Logo Printing:Available
Customization:Non-Customized
Certification:ISO, CE
Condition:New
Usage:Fracture Fixation (Tibia)
Package:Non-Sterilized Package
Origin:China
Capacity:50,000 PCS/Year

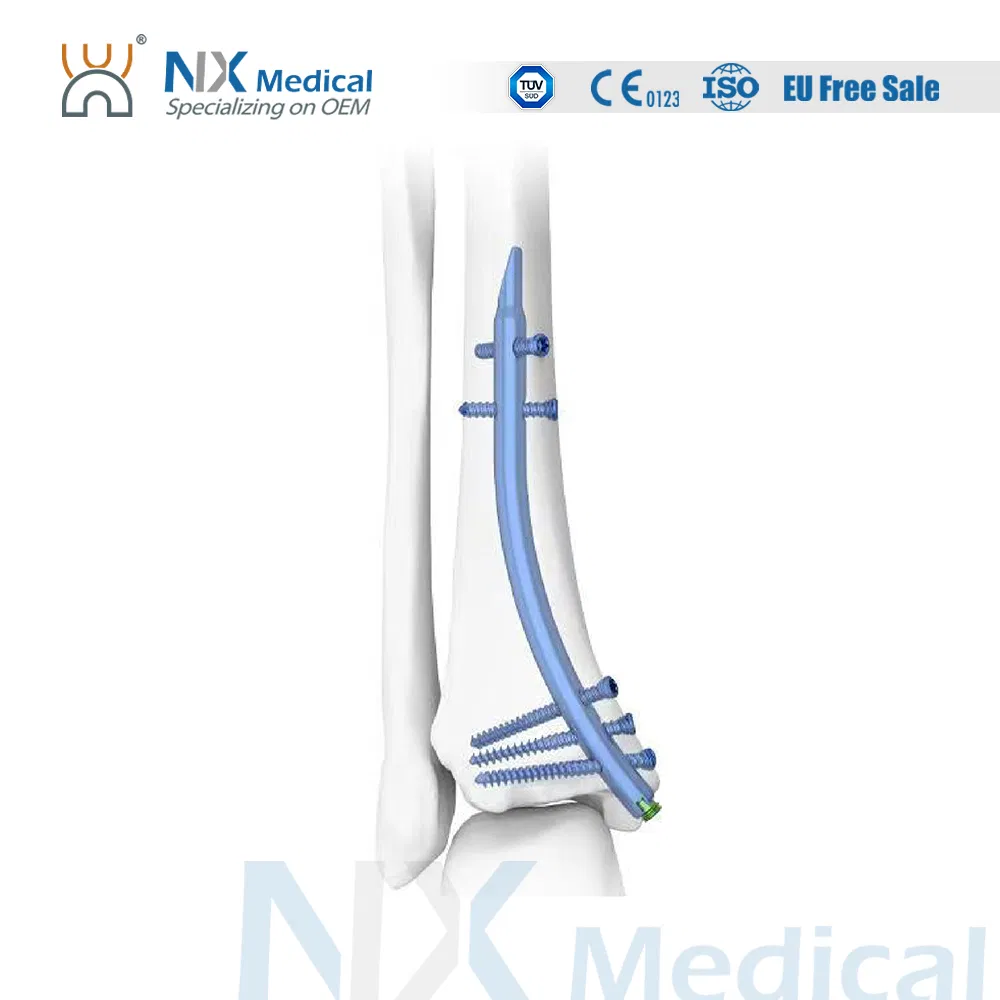

Retrograde Tibial Nail System

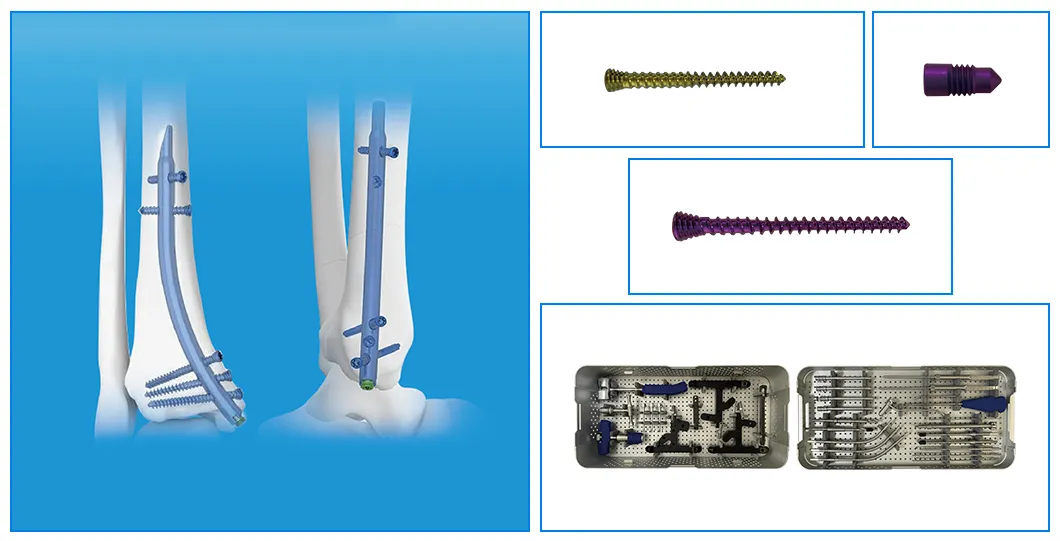

Product Features

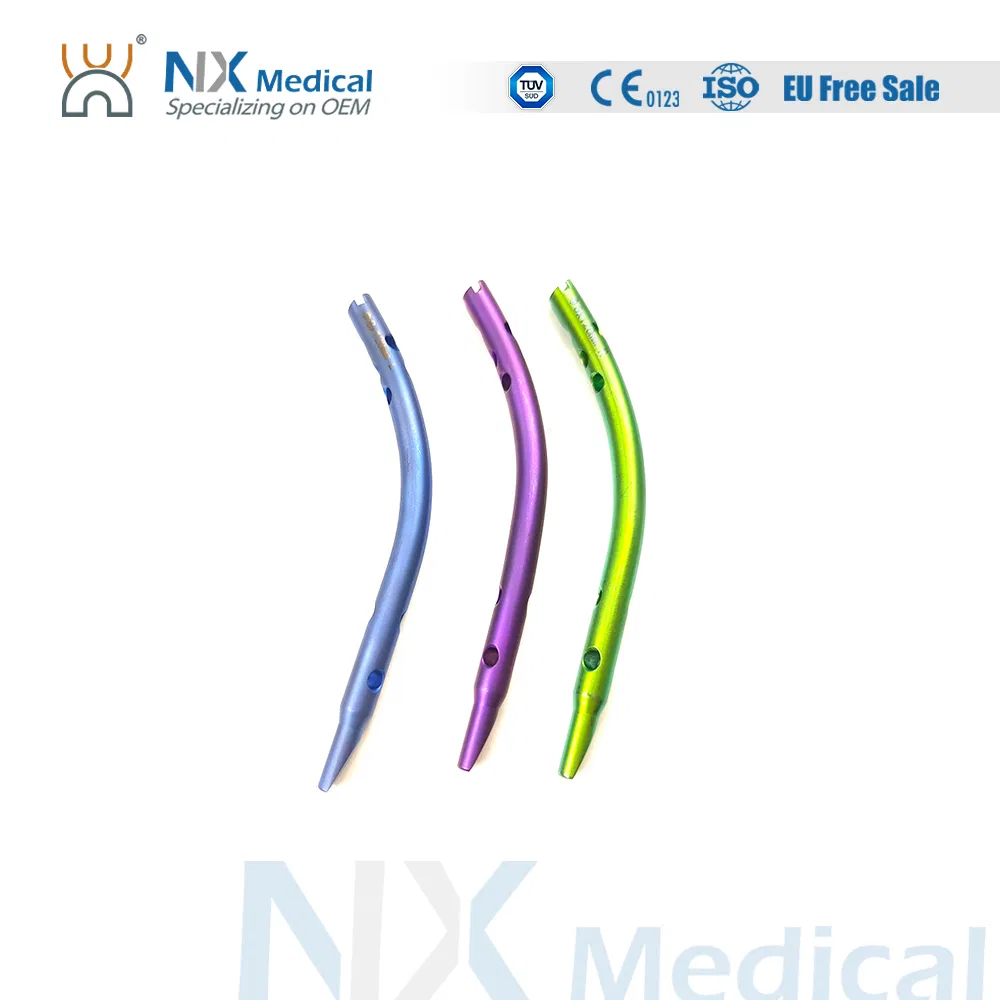

1. Colour Coding: Easily differentiate nail sizes for surgical efficiency.
2. Proximal Oblique Design: Reduces irritation to soft tissues of the medial malleolus.
3. Stability: Two proximal interlocking screws avoid fracture rotation and displacement.
4. Distal Design: Flat cutting design avoids insertion difficulties.
5. Fixation: Three distal divergent locking screws provide effective support.
6. Instruments: Advanced, user-friendly instruments facilitate precise nail insertion.
7. Jigs: Carbon fiber jigs facilitate accurate distal screw position preparation.
📊

Technical Specifications

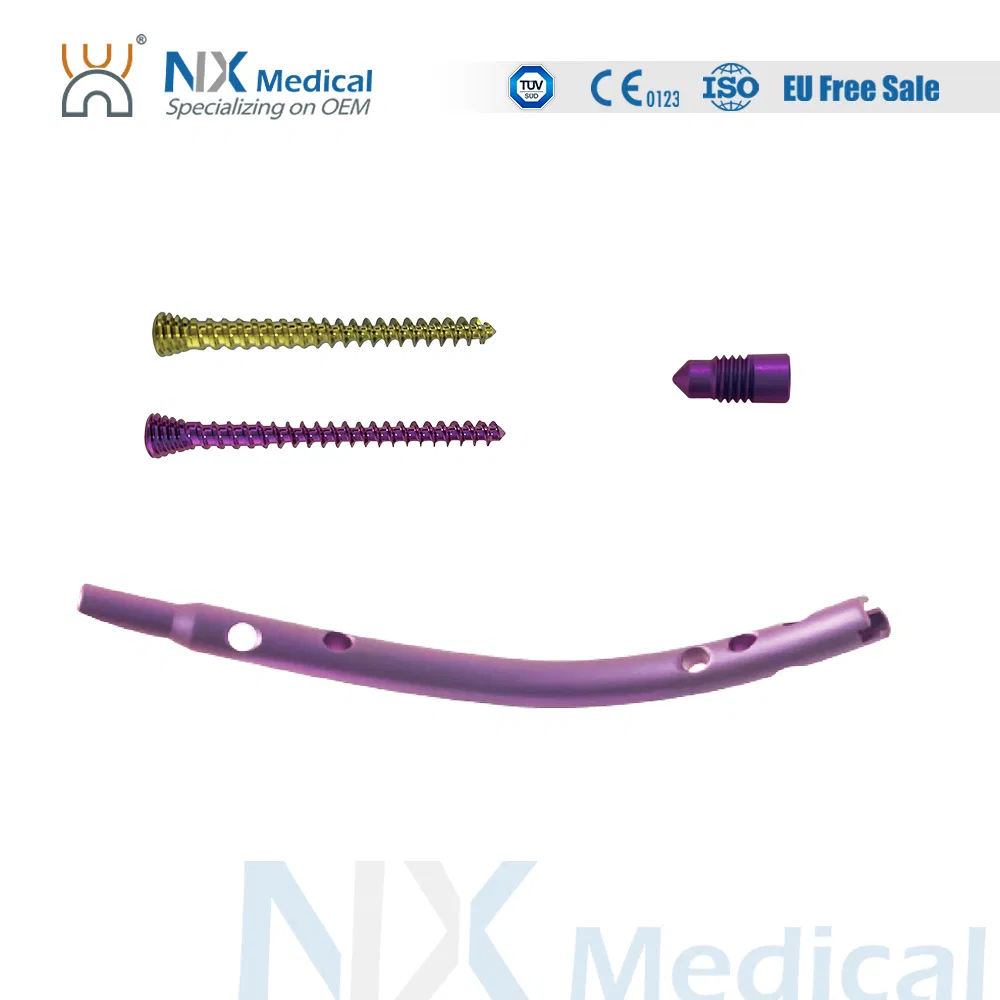

Product Size / Length (mm) Material
Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 Titanium Alloy (TA)
φ3.5mm Interlocking Cancellous Screw 30 - 52 (in increments of 2mm) Titanium Alloy (TA)
φ3.5mm Interlocking Cortical Screw 18 / 20 / 22 / 24 / 26 / 28 Titanium Alloy (TA)
φ4.0mm Interlocking Cortical Screw 24 / 26 / 28 / 30 / 32 / 34 Titanium Alloy (TA)
Retrograde Tibial Nail End Cap Standard / Size 5 Titanium Alloy (TA)
🏢

Professional Manufacturing

Our facility is one of the leading orthopedic product manufacturers located in East China. We provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to orthopedic surgeons and patients worldwide. We offer superior orthopedic trauma implants, spinal implants, and high-precision surgical instruments.

Our major categories include locking plates, intramedullary nails, cannulated headless screws, and cable systems. For spinal systems, we offer cervical plates, pedicle screws, and PEEK cages. We believe superior quality is the key for patients, and we have established a strict quality system for frequent self-audits. Our products comply with ISO13485 and are certified by TUV CE0123 and NMPA.

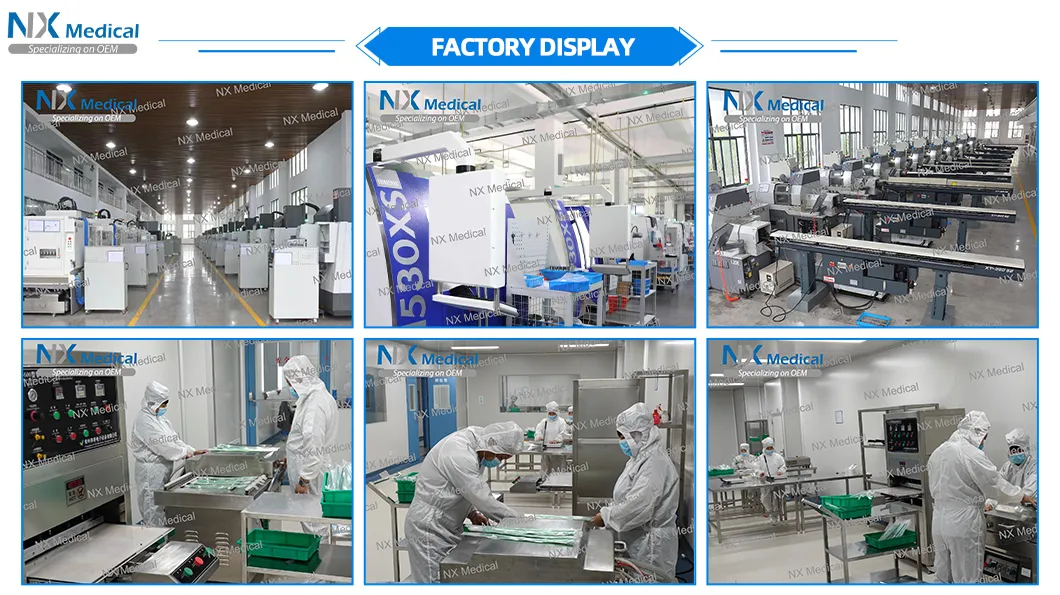

Factory Workshop Production Line
Quality Control Inventory Shipping
📜

Certifications

ISO and CE Certifications

Frequently Asked Questions

Can I request a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.
Do you offer customized manufacturing services?
Yes, we have a complete design and drawing department equipped with CNC machines to provide high-precision customized services.
What materials are used for the implants?
Most of our intramedullary nails and screws are made from high-grade Titanium Alloy (TA) to ensure biocompatibility and strength.
What is the lead time for samples?
For existing items, samples are ready within 3 days. For OEM products, the process typically takes approximately 2 weeks.
How do you ensure the quality of your orthopedic products?
We conduct strict sampling inspections before shipment and maintain certifications such as ISO13485 and CE0123 to ensure the highest medical standards.
Can you print our logo on the products?
Yes, we can brand products and packaging with your logo, provided the Minimum Order Quantity (MOQ) requirements are met.
