Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Product Information

Model NO.:SGM-IIK
Application:Orthopedic Surgery
Material:Titanium Alloy
Product Name:Proximal Femoral Nail System
Indications:Proximal Femoral Fracture
Delivery:3-5 Working Days
Shipping:DHL / UPS / FedEx
Origin:China

Product Description & Features

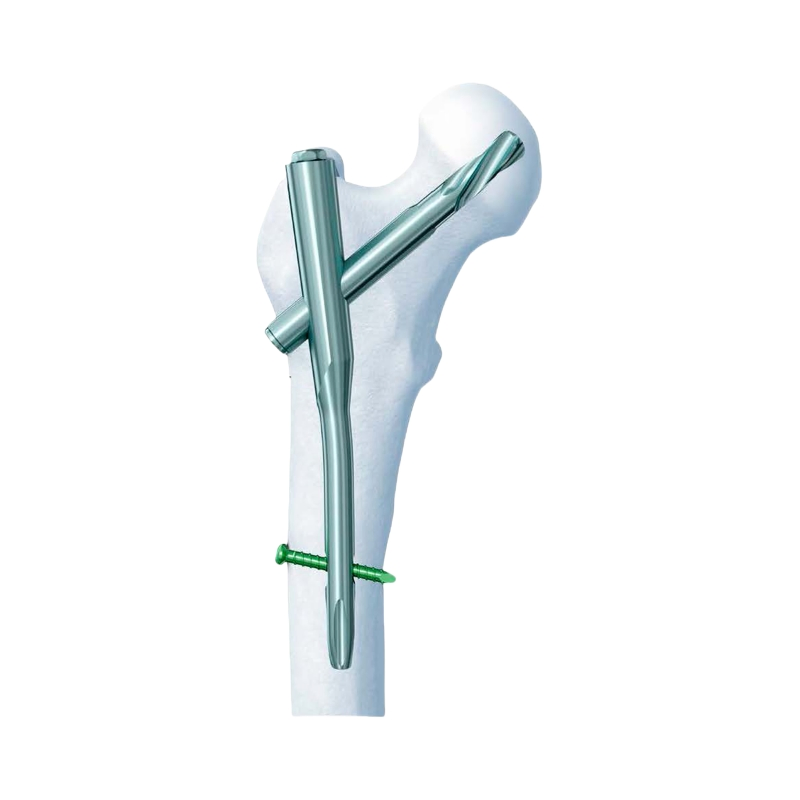

Proximal Femoral Nail System (PFNA)

  • Medial-lateral angle of 5°, allowed to be placed from the top of the greater trochanter.
  • The flattened proximal lateral design makes it easier for nail insertion.
  • Optimal stress distribution throughout the implant.
  • The elastic tip and groove design facilitate easier insertion and avoid stress concentration at the distal end.

Clinical Indications:

Standard PFNA: Intertrochanteric fractures (31-A1, 31-A2), Reverse intertrochanteric fractures (31-A3), High position Subtrochanteric fractures.

Long PFNA: Low and extended subtrochanteric fractures, Ipsilateral trochanteric fractures, Multiple fractures in the proximal femur, Pathological fractures.

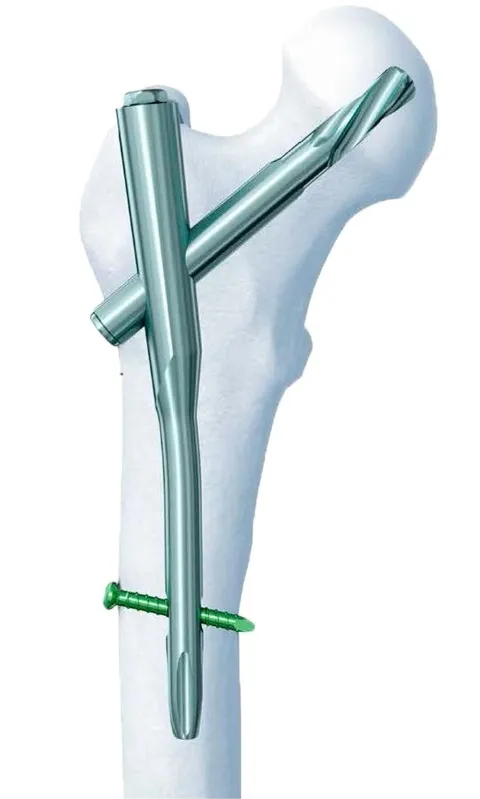

Proximal Femoral Nail System

Technical Specifications

Product Name Specification Details

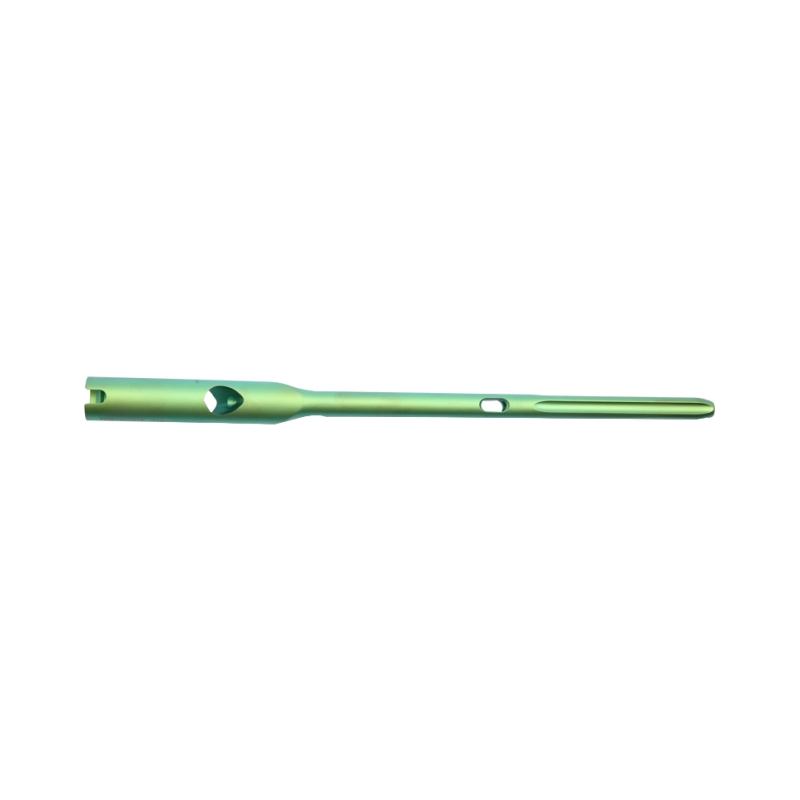

Proximal Femoral Nail Diameter: 9.0/10.0/11.0/12.0mm | Angle: 130° | Length: 170-240mm

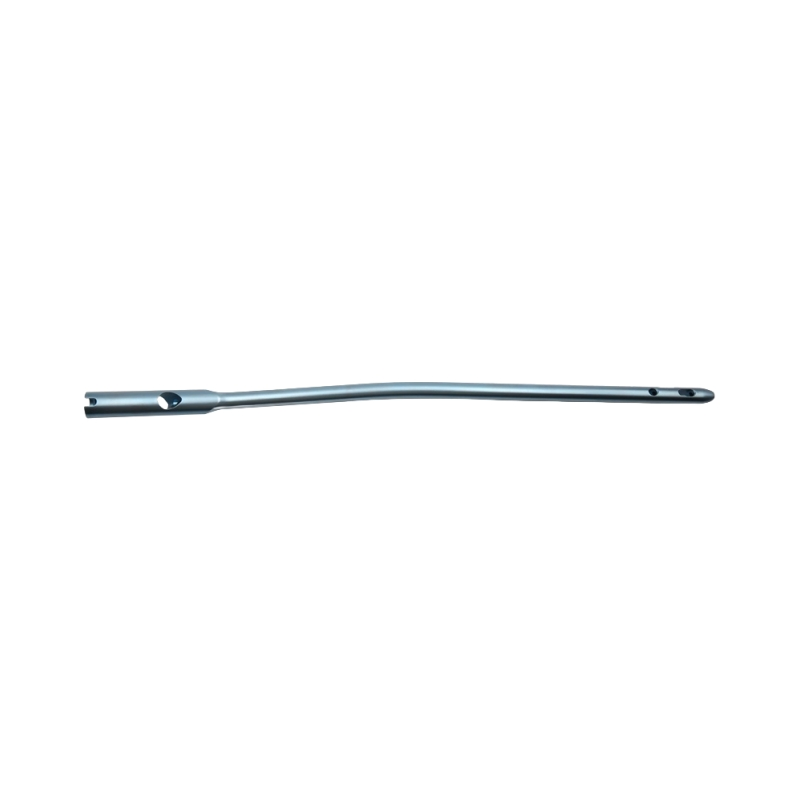

Proximal Femoral Nail (Long) Diameter: 9.0/10.0/11.0mm | Angle: 130° | Left/Right | Length: 320-420mm

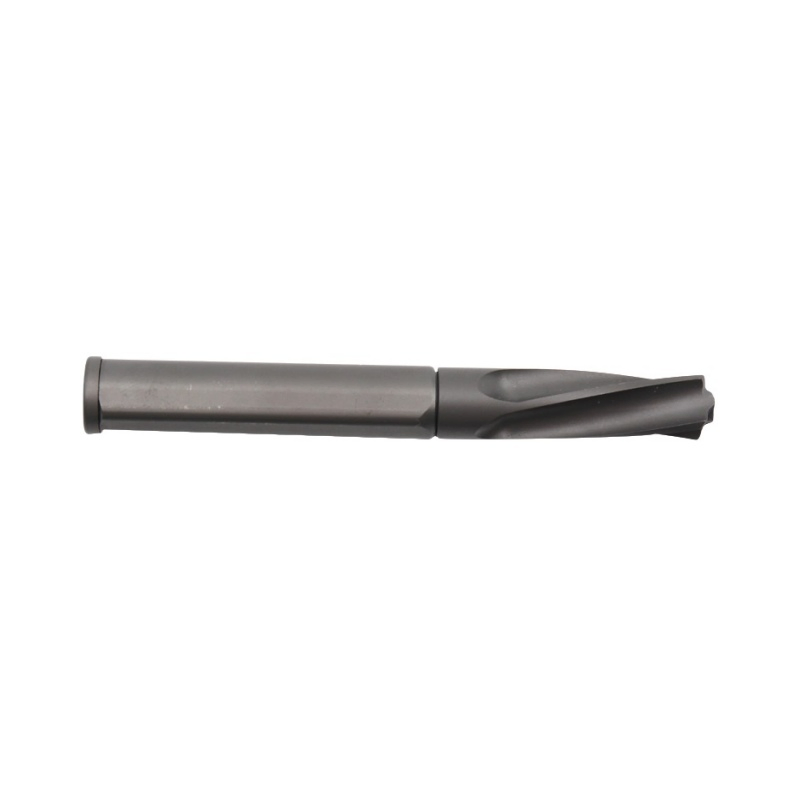

Helical Blade Diameter: 10.5mm | Length: 70-120mm

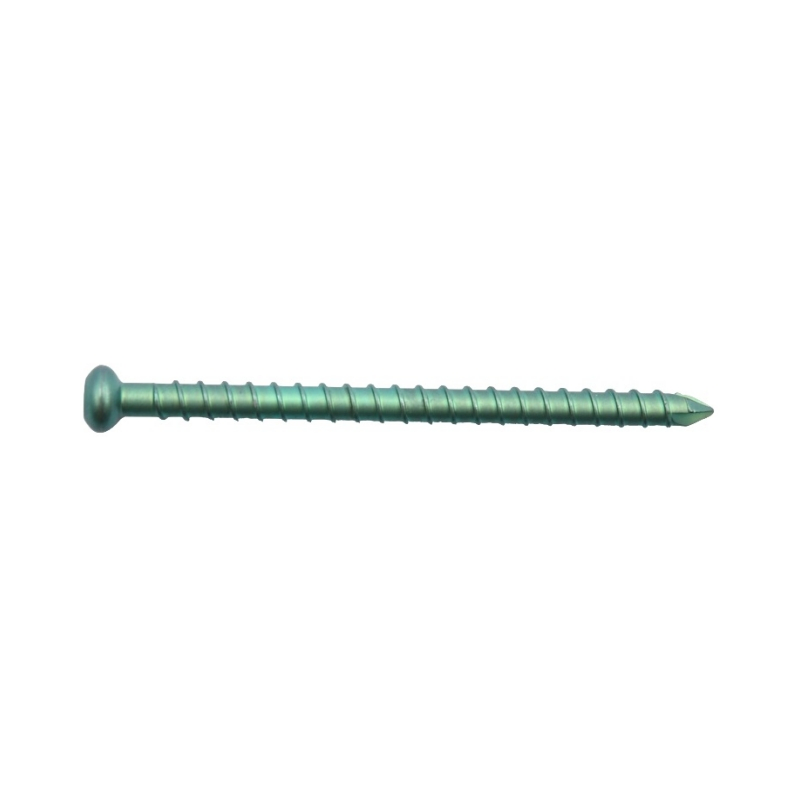

Locking Bolt Diameter: 4.9mm | Length: 30-72mm
End Cap Diameter: 10mm | Length: 15-35mm

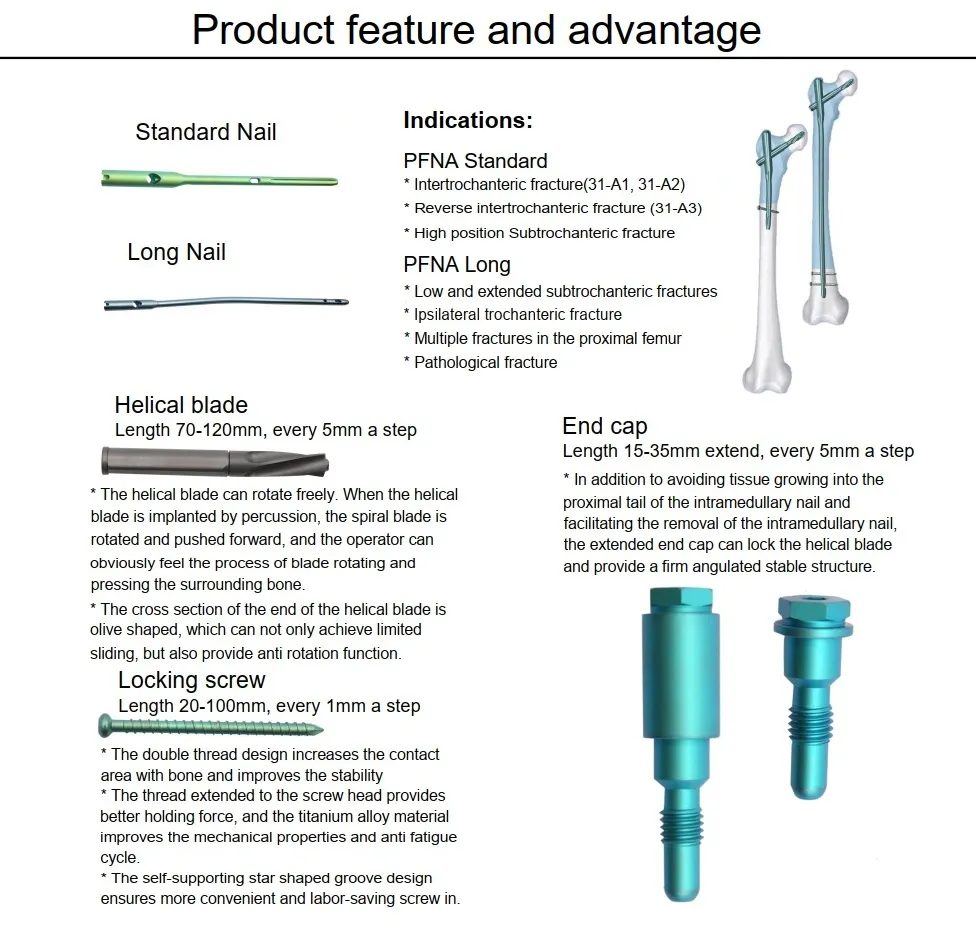

Nail Detail 1 Nail Detail 2

Packing & Delivery

Packing 1 Packing 2

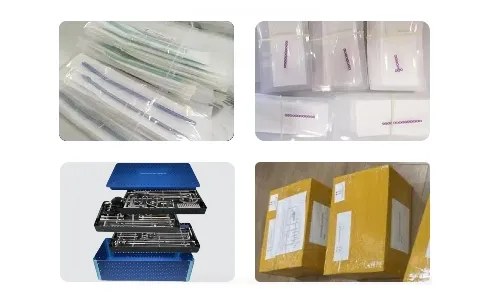

Packing Details: Implants: Inner plastic bag + outer carton box. Instruments: Inner sterilization box + outer carton.
Delivery Way: Express via DHL, UPS, FedEx, or Air Cargo as per request.

Manufacturing & Quality Control

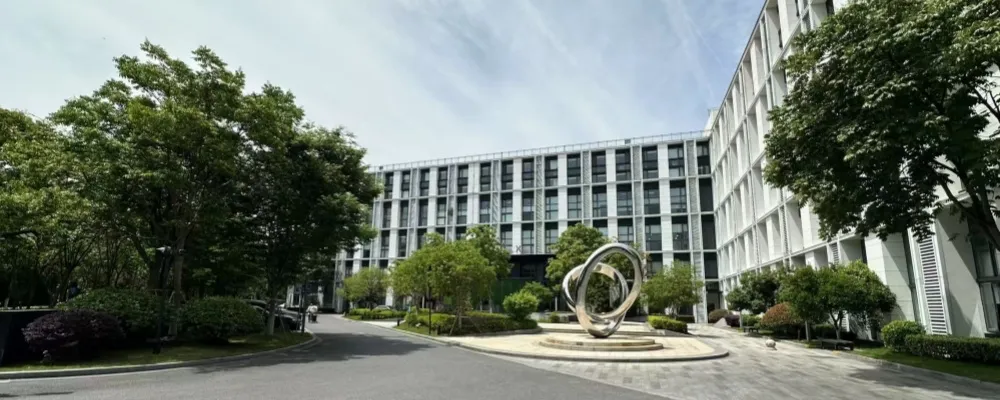

Factory Overview Precision Equipment Certifications Exhibitions
  • Professional one-stop orthopedic product solution provider since 2016.
  • Production capacity of 10,000 units per month.

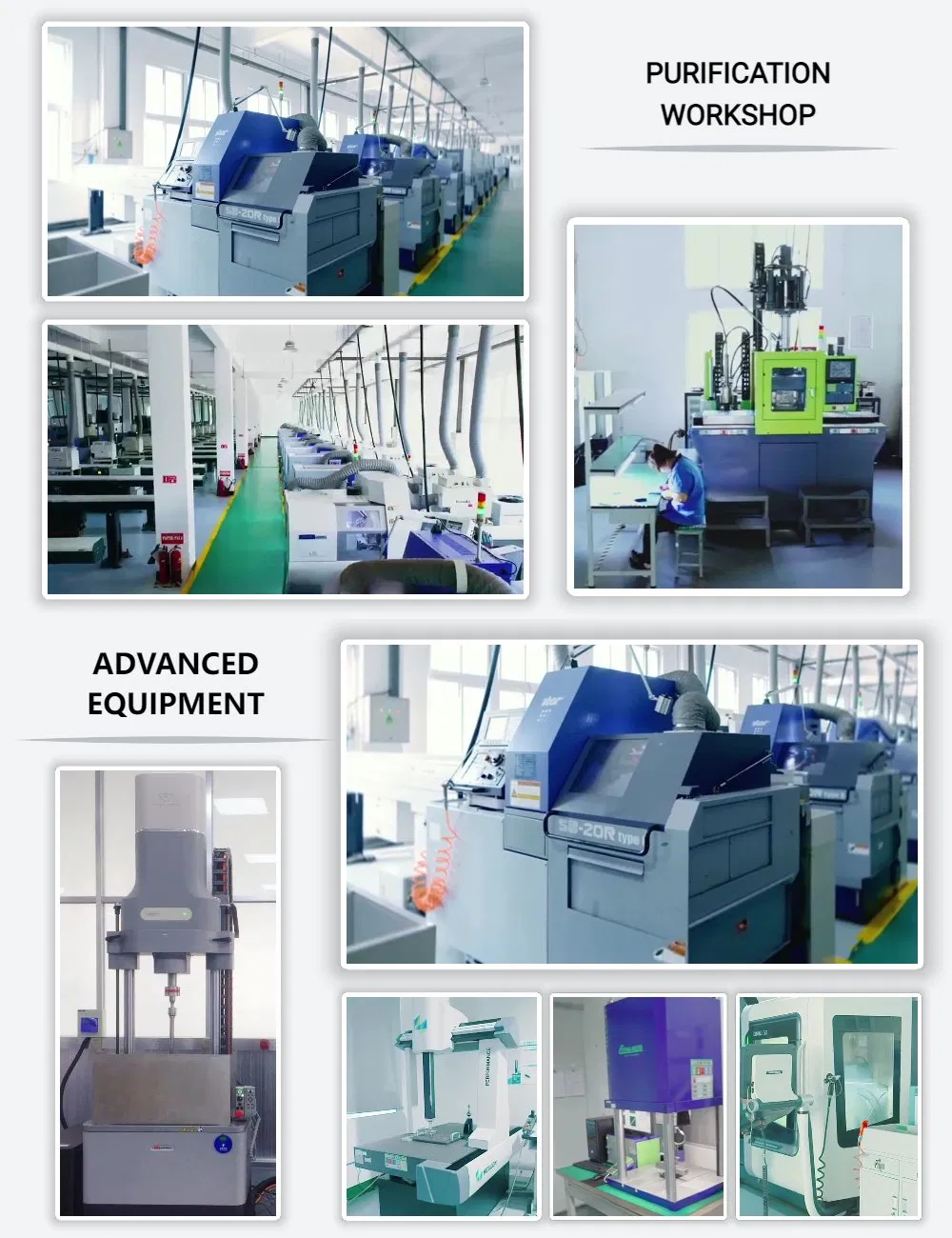

  • Advanced CNC machining equipment imported from the United States and Japan.
  • Strict quality detection protocols to ensure international medical standards.

Frequently Asked Questions

Do you hold international quality certifications?
Yes, we are fully certified under ISO 9001:2015 and EN ISO 13485:2016 standards for medical device manufacturing.
What are the available shipping modes and charges?
We primarily ship via DHL Express for speed and reliability. Shipping costs depend on the weight and destination; quotes are provided upon request.
What is the typical delivery timeframe?
For in-stock items, delivery takes 15-30 days. For custom or large-scale orders not in stock, the lead time is generally 30-60 days depending on quantity.
Can I request samples before placing a bulk order?
Yes, we offer sample products. Please note that samples are charged at an extra price plus shipping costs.
What is your policy for defective products?
If any goods are found to be defective, please provide photographic evidence for our technical team to confirm. Once verified, we will provide a free replacement.
Do you offer matched surgical instruments?

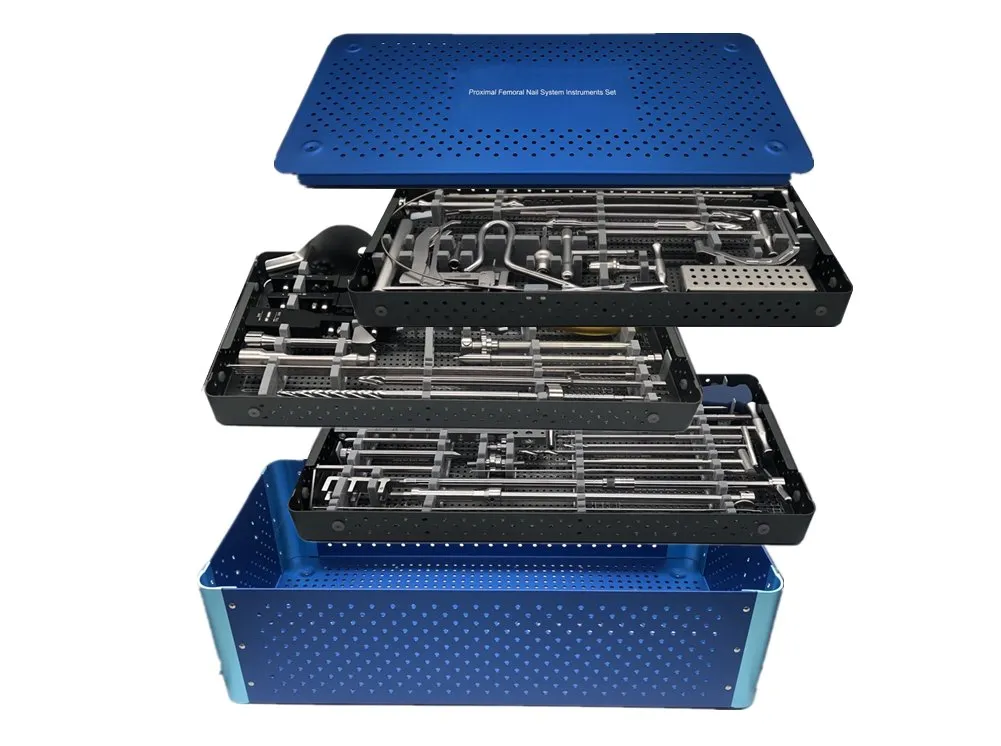

Absolutely. We provide the GA1X Proximal Femoral Nail System Instruments Set specifically designed for use with our PFNA implants.
