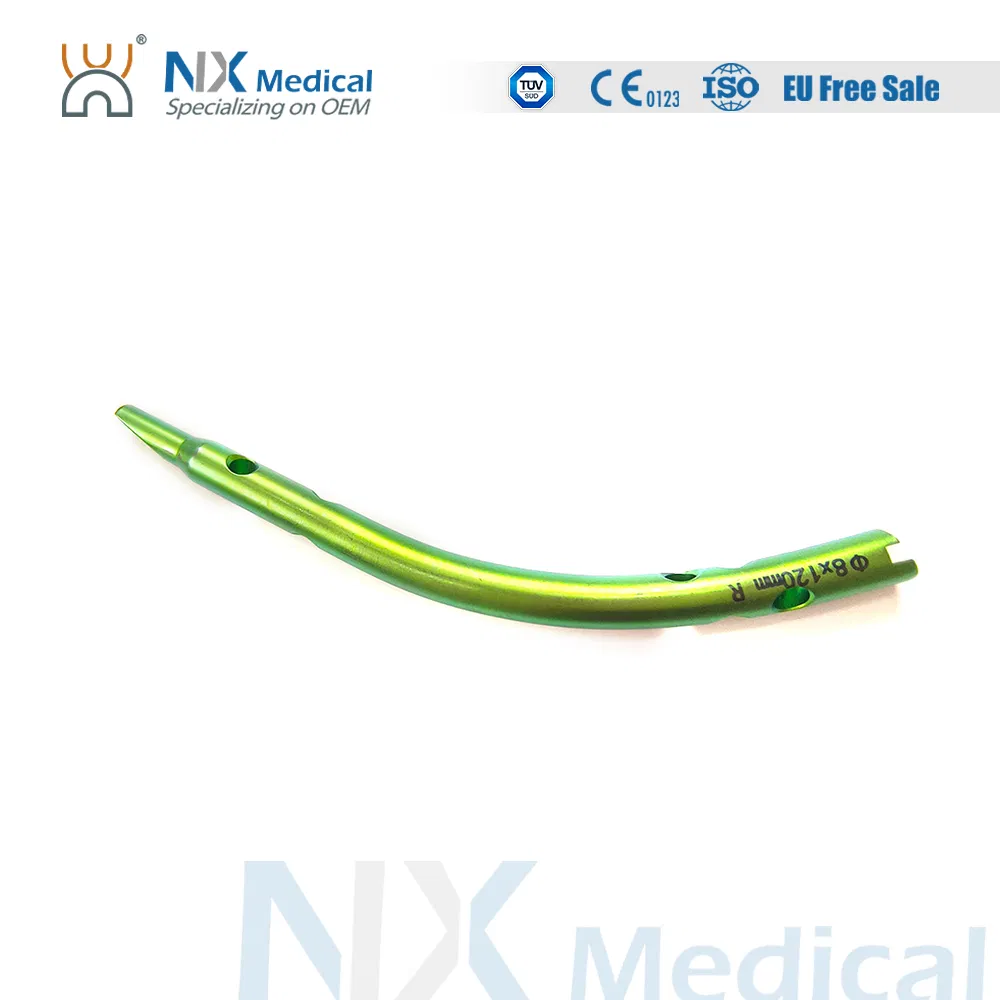

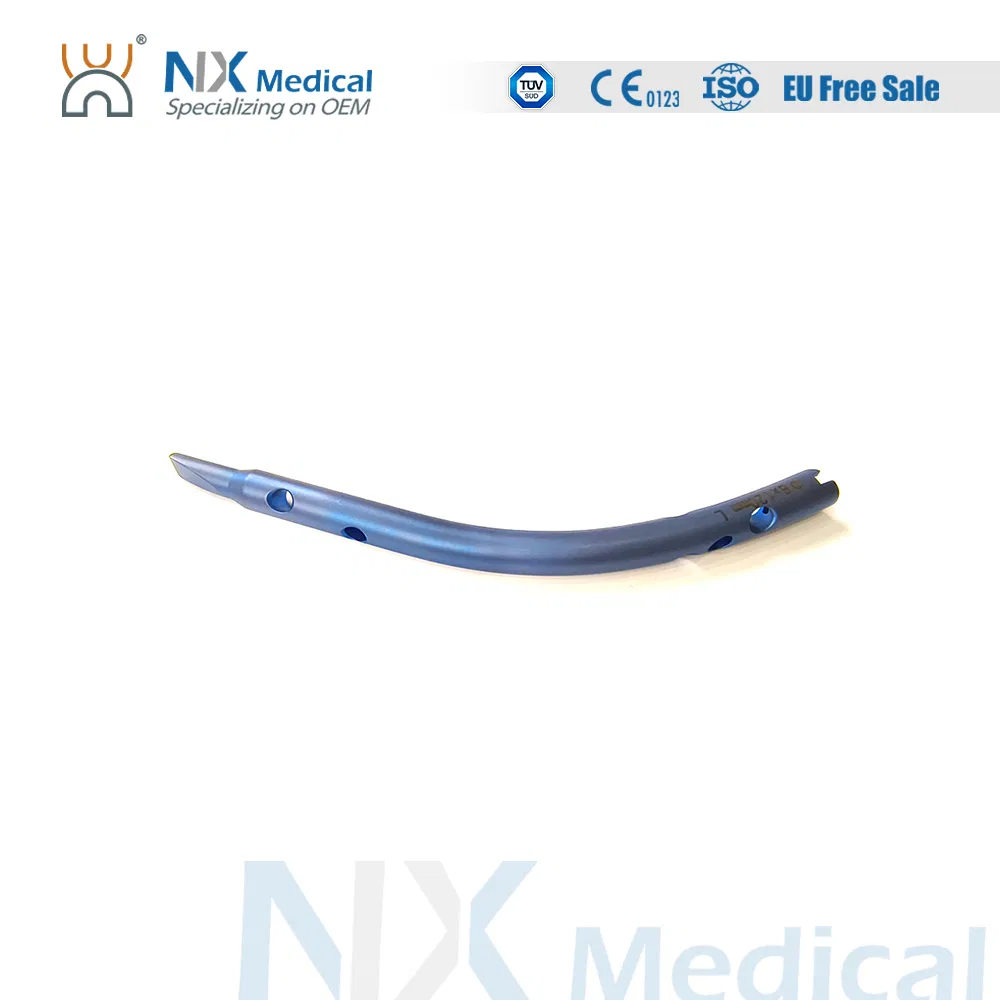

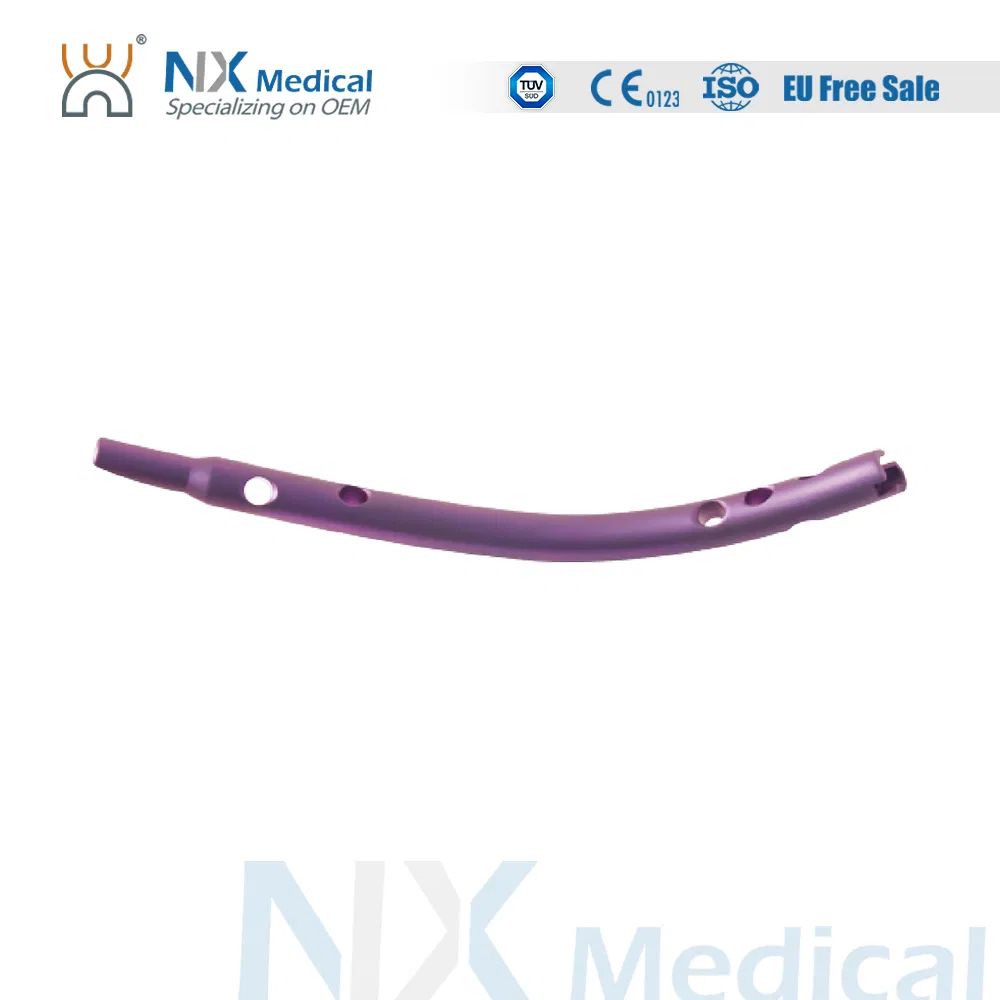

China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
1 / 5
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail
China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
NXGGK01
Sterilization
Without Ethylene Oxide
Guarantee Period
Two Years
Group
Adult
Customized
Non-Customized
Certification
ISO, CE
Usage
Fracture Fixation
Using Site
Tibia
Origin
China
Capacity
50000 PCS/Year
Retrograde Tibial Intramedullary Nail
Titanium Retrograde Tibial Nail

Product Description

Retrograde Tibial Nail System

Key Features and Benefits:

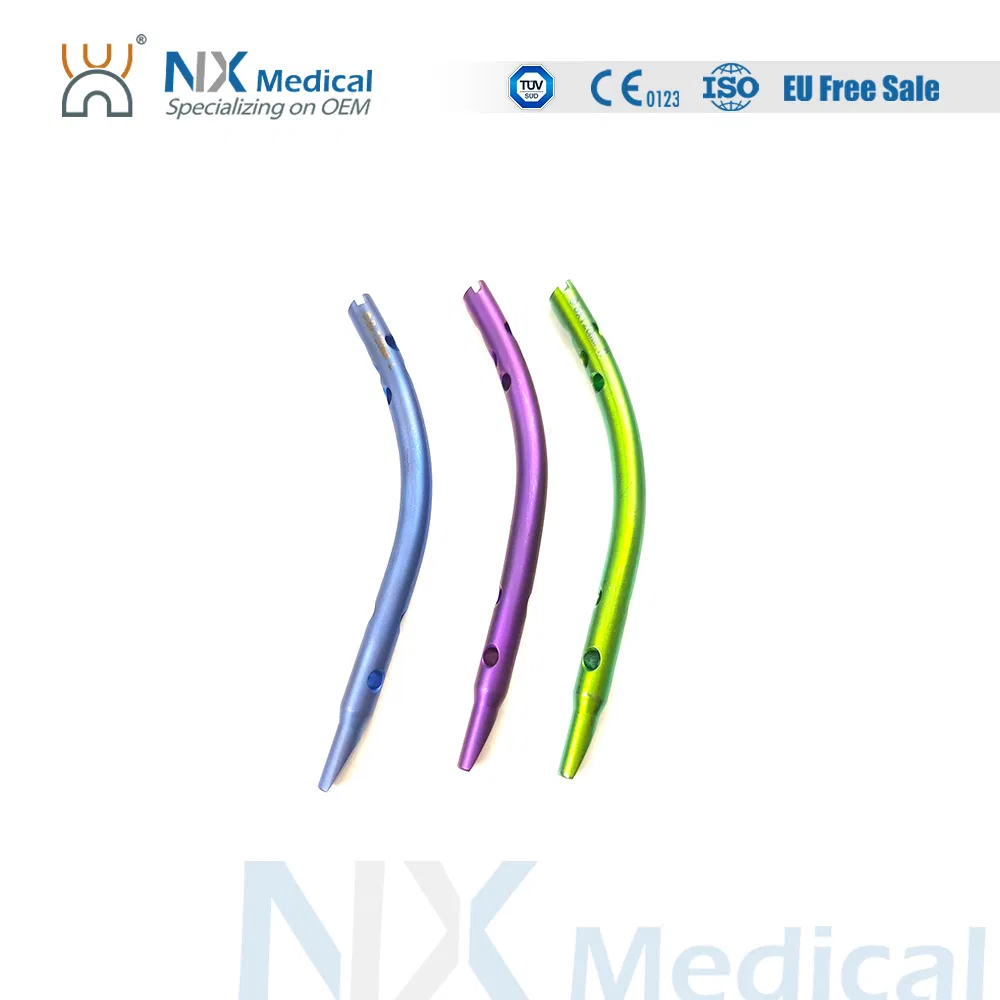

  • Colour coding to easily differentiate nail sizes

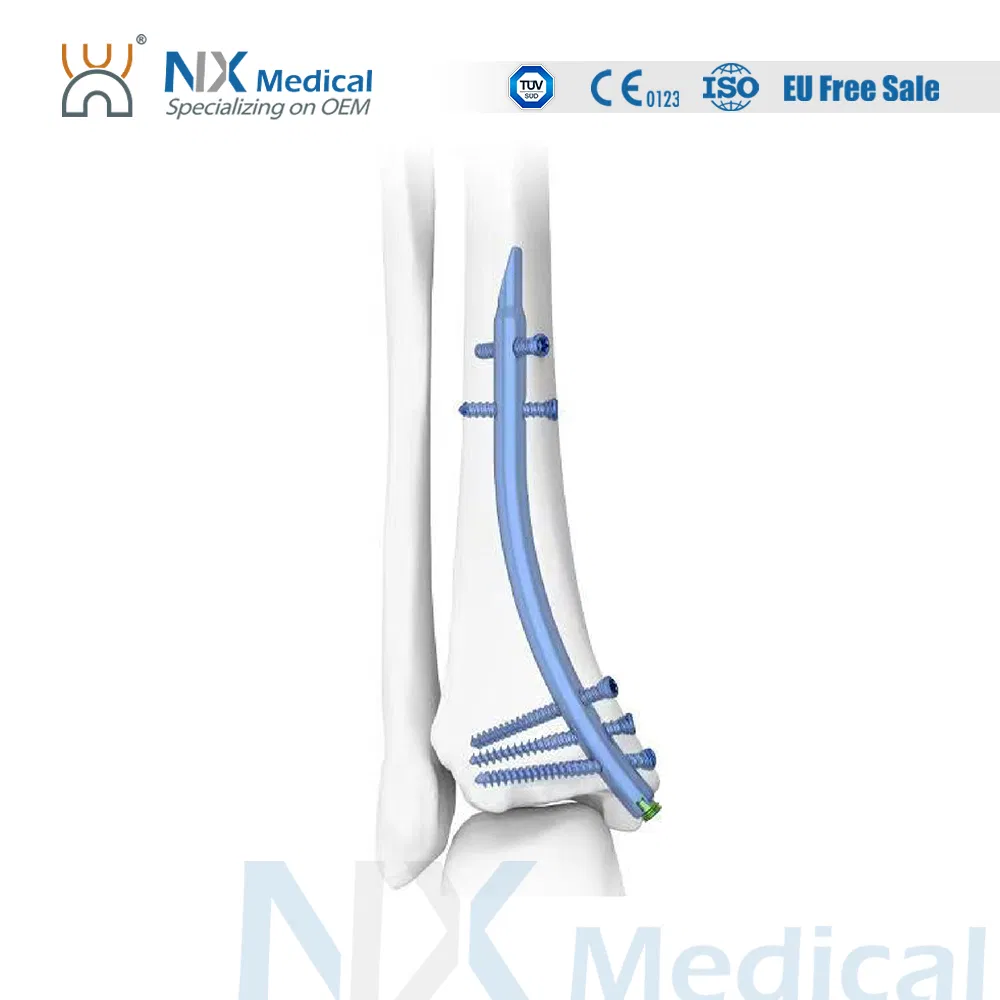

  • Proximal oblique cutting design reduces irritation to soft tissues of medial malleolus
  • Two proximal interlocking screws avoid fracture rotation and displacement
  • Distal flat cutting design avoids insertion difficulties
  • Three distal divergent locking screws provides effective support and fixation
  • Advanced and user-friendly instruments facilitate precise nail insertion
  • Carbon fiber jigs facilitate first distal screw insertion position preparation

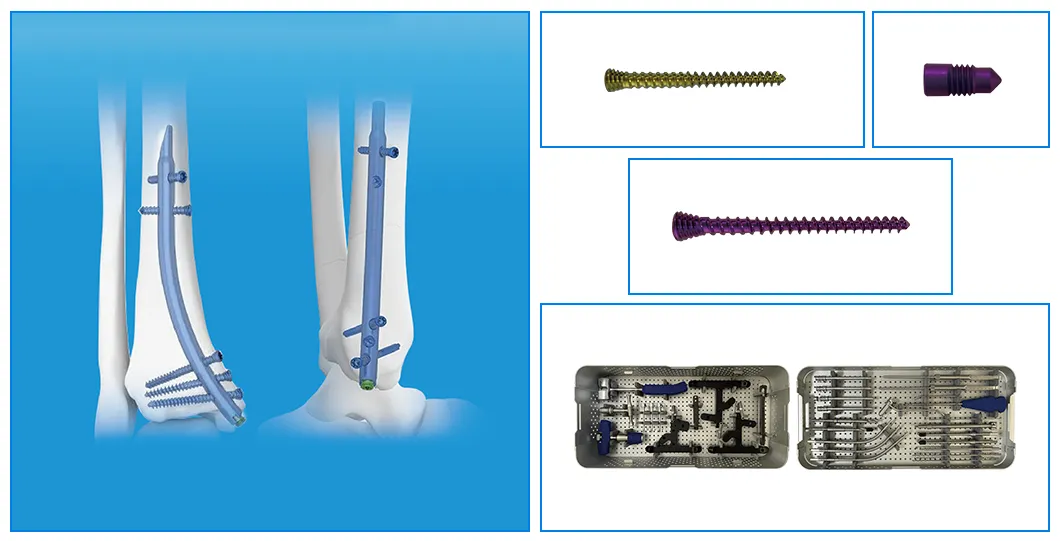

Retrograde Tibial Nail System Details

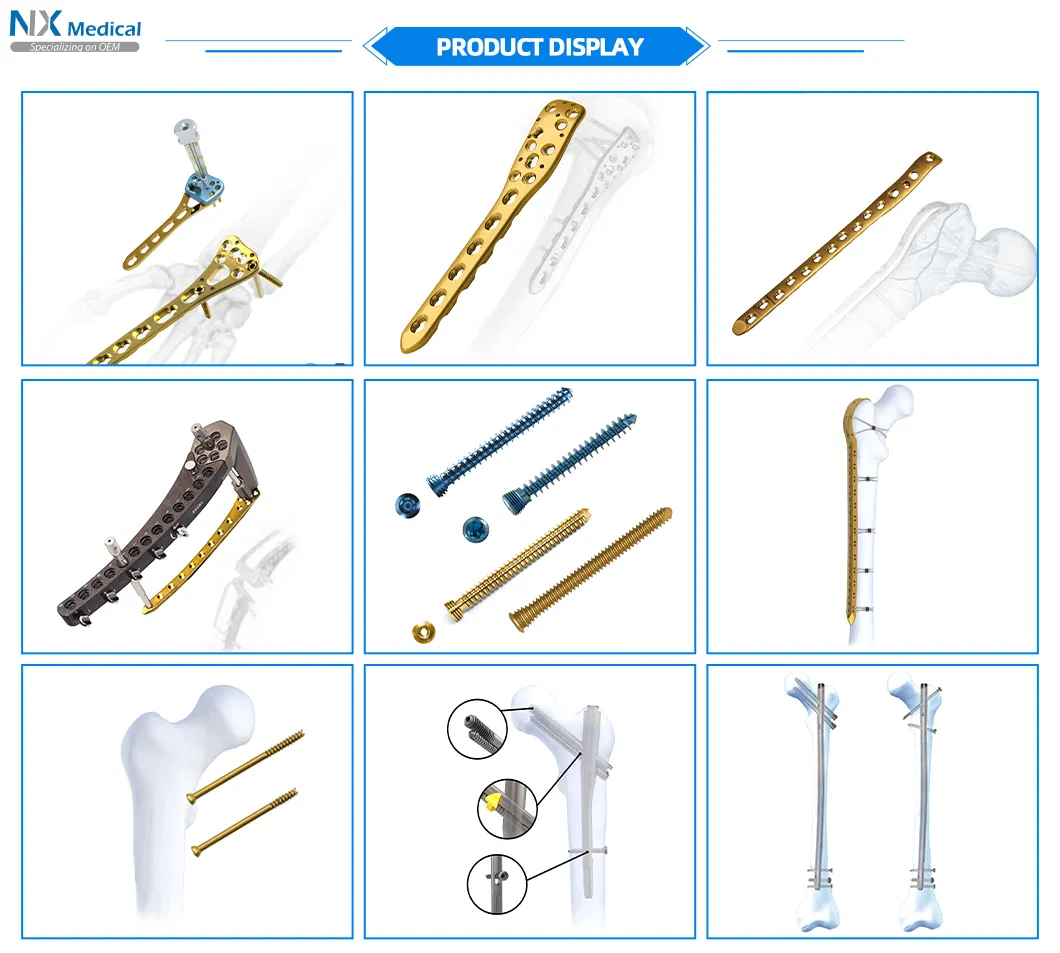

Nail Components
Product Size / Length (mm) Material
Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 Titanium (TA)
Interlocking Cancellous Screw (φ3.5mm) 30 - 52 (2mm increments) Titanium (TA)
Interlocking Cortical Screw (φ3.5mm) 18 / 20 / 22 / 24 / 26 / 28 Titanium (TA)
Interlocking Cortical Screw (φ4.0mm) 24 / 26 / 28 / 30 / 32 / 34 Titanium (TA)
Retrograde Tibial Nail End Cap Standard / 5 Titanium (TA)

Company Overview

Our facility is a leading orthopedic manufacturer in East China, providing comprehensive, cost-effective surgical and reliable therapeutic solutions. We offer superior trauma implants, spinal implants, and surgical instruments worldwide. Committed to innovation, we invest heavily in R&D to ensure the highest quality standards.

Our trauma system includes locking plates, intramedullary nails, cannulated screws, and cable systems. All products comply with ISO13485 and are certified by TUV CE and NMPA, ensuring the safest and most advanced technologies for rapid recovery and pain-free life after surgery.

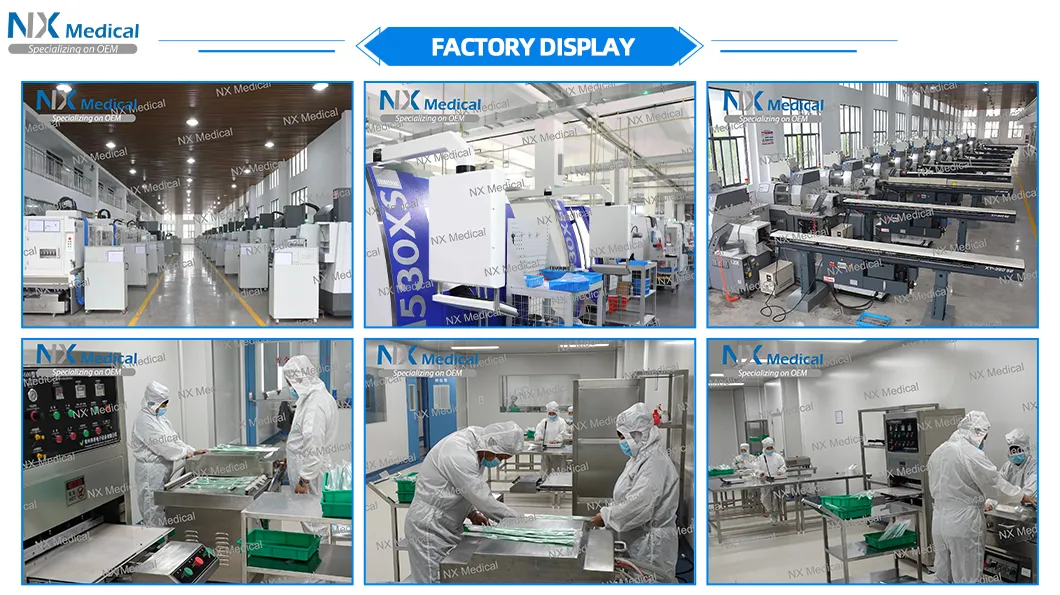

Manufacturing Facility
Production Line
Quality Control

Frequently Asked Questions

Can I request a sample order?
Yes, we welcome sample orders to test and check the quality of our orthopedic implants. Mixed samples are also acceptable.
Do you offer customized manufacturing services?
Yes, we have a complete design and drawing department along with high-precision CNC machinery to fulfill customized surgical requirements.
What is the typical lead time for samples?
For existing items, samples can be prepared within 3 days. For OEM products, the process typically takes approximately 2 weeks.
How is product quality ensured before shipment?
We conduct strict sampling inspections on all products before shipment and ensure all packaging is intact and secure.
Can you brand the products with a specific logo?
Yes, we can print your logo on both the products and the packaging, provided our minimum order quantity (MOQ) requirements are met.
What is the process for placing a formal order?
First, share your specific requirements. We will then provide a quote. Once samples are confirmed and a deposit is placed, we proceed with mass production.
