🔹 Basic Information
Ethylene Oxide Sterilization
Without Ethylene Oxide Sterilization
Length
16/24/32/40/48/56mm
Ti Grade
Grade.3 Medical Pure Titanium
Indication
Maxillofacial Surgery
Transport Package
Plastic Bag, PE Bag, Carton Package
Specification
4/6/8/10/12/14 holes
Production Capacity
1000 pieces/Week
📷 Detailed Photos
⭐ Screw Size: 1.5mm Self-Tapping Screw & 1.5mm Self-Drilling Screw.

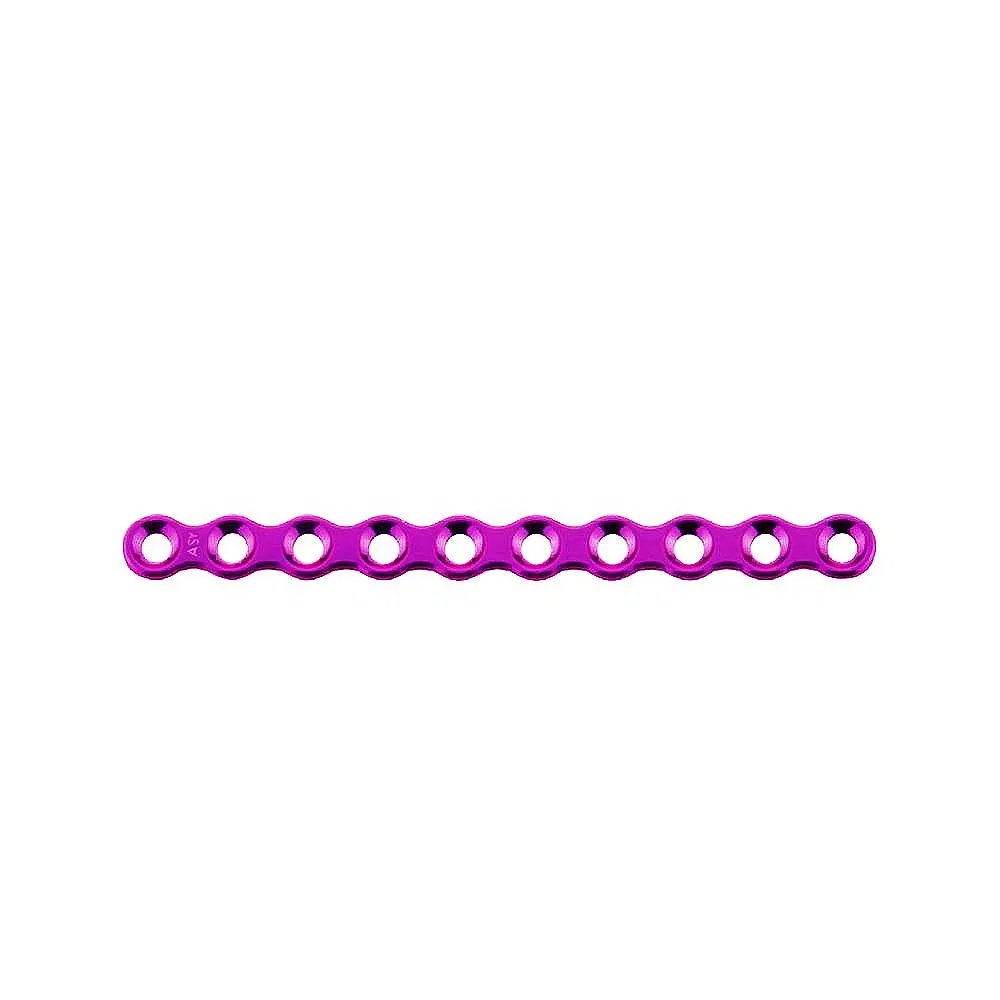

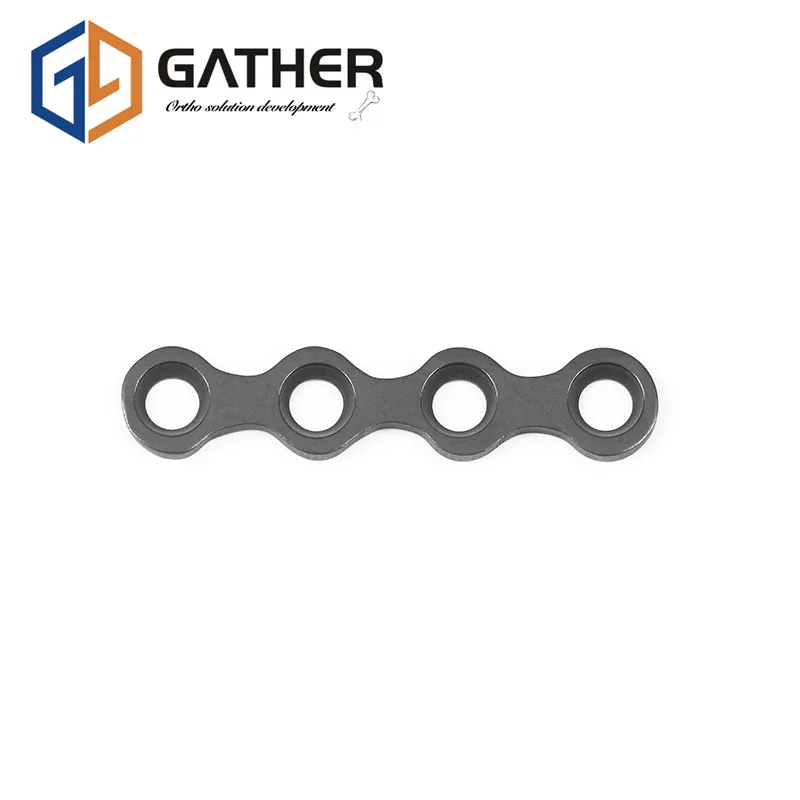

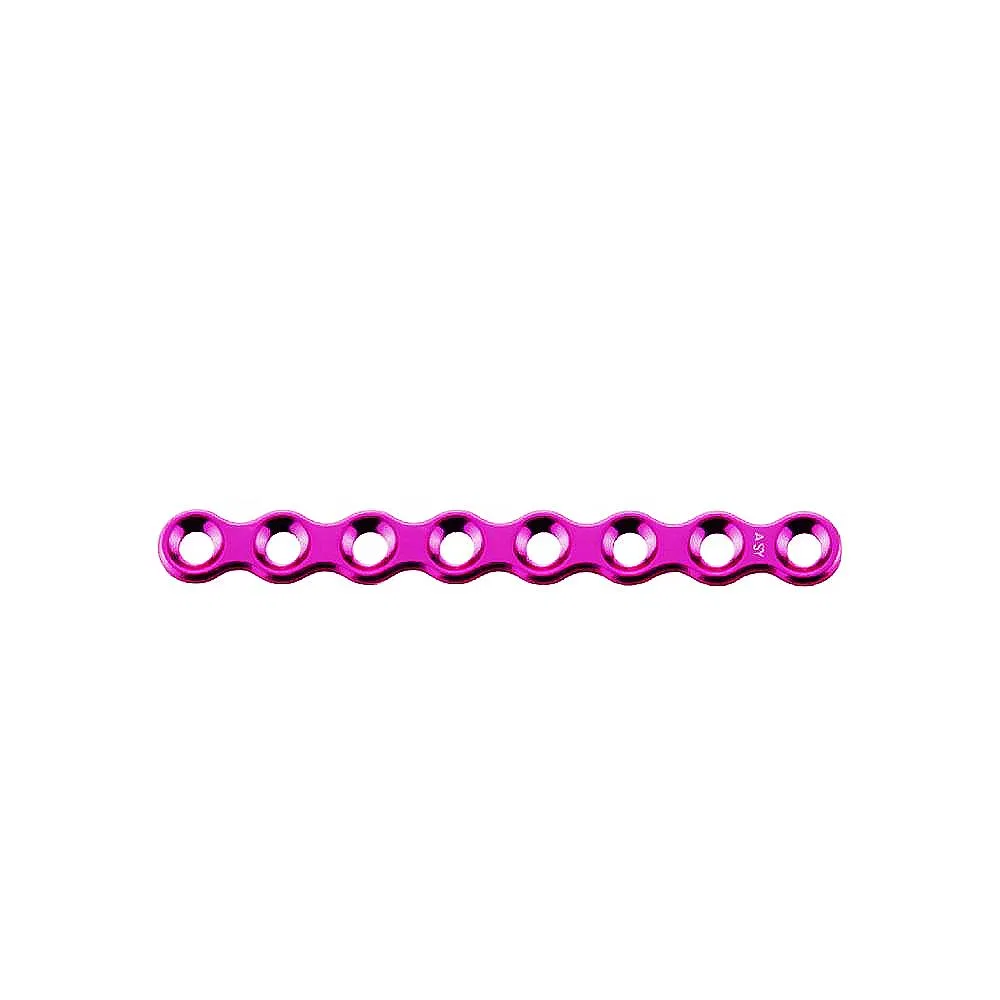

| Name | Orthopedic Medical Implant Maxillofacial Micro Titanium Straight Plate |
| Material | Pure Medical Titanium |
| Color | Purple / Customized |
| Specification | 4 / 6 / 8 / 10 / 12 / 14 Holes |
| Length | 16 / 24 / 32 / 40 / 48 / 56mm |
| Thickness | 0.6mm |
| Certification | CE / ISO9001 / ISO13485 |
| Material Grade | Grade 3 |

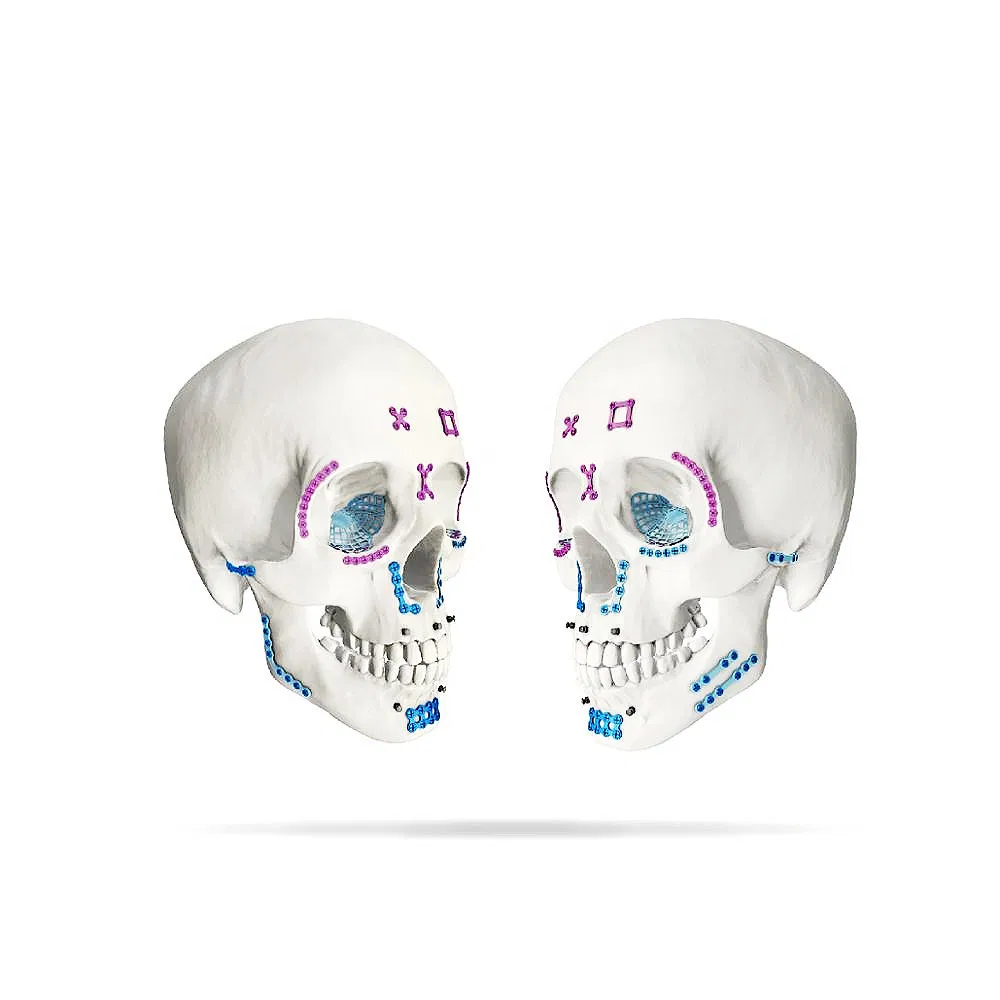

| Indication | Front part, nasal part, pars orbitalis, pars zygomatica, maxilla region, pediatric craniofacial bone |

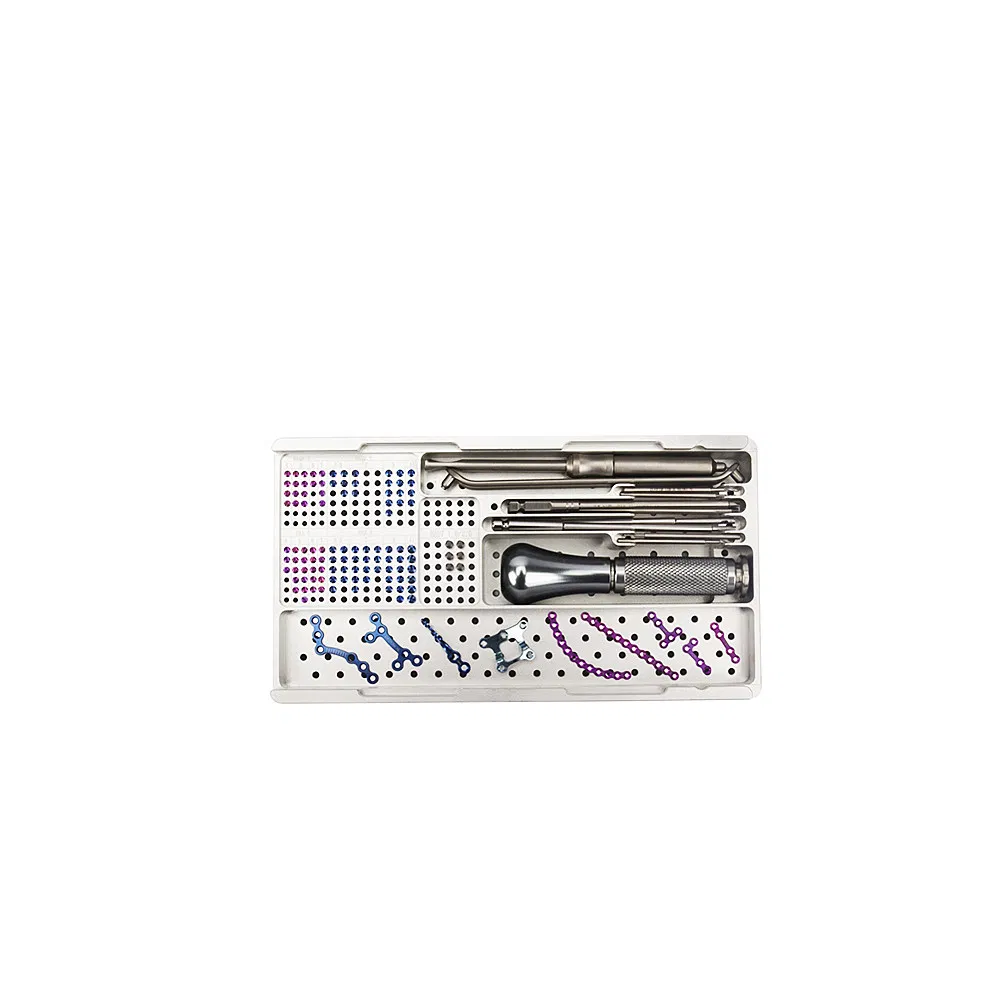

🛠️ Maxillofacial Product Systems
✔ 0.6mm thickness plate system (1.5mm screws) - Amaranth Color
✔ 0.8mm thickness plate system (2.0mm screws) - Baby Blue Color
✔ 1.0mm thickness plate system (2.0mm screws) - Dark Blue Color
✔ Locking systems available in 0.6mm, 0.8mm, 1.0mm, and 1.4mm thicknesses
✔ Orthognathic systems: 0.6mm, 0.8mm, 1.0mm
✔ 2.4mm Reconstruction system - Yellow Color
✔ Anatomical Orbital Floor Plates: 0.6mm & 0.8mm
🚀 Key Advantages
1️⃣ Premium Material: Plates adopt special customized German ZAPP pure titanium, ensuring excellent biocompatibility and uniform grain size. MRI/CT compatible.
2️⃣ Advanced Surface Treatment: Anodizing technology enhances surface hardness and abrasive resistance.
3️⃣ Concave Hole Design: Ensures closer combination of plate and screw with lower profiles, reducing soft tissue trauma.
4️⃣ Soft Edge Finish: Smooth surface edges reduce irritation to surrounding soft tissues.
5️⃣ Color Coding: Different colors help clinicians identify systems quickly during operations.
6️⃣ Certifications: Fully CE & ISO certified.
📦 Related Products & Certifications
❓ Frequently Asked Questions
What material are these implants made from?
The implants are manufactured using Grade 3 medical pure titanium, specifically sourced from German ZAPP for superior biocompatibility.
Are the bone plates compatible with MRI or CT scans?
Yes, the high-quality pure titanium material used ensures that the implants will not interfere with MRI or CT examinations.
What certifications do your products hold?
Our products are fully compliant with international standards and hold CE, ISO9001, and ISO13485 certifications.
Why are the plates available in different colors?
The different colors (such as Amaranth, Baby Blue, and Dark Blue) are used to help clinicians easily identify the thickness and system type during surgical procedures.
What is the thickness range for your maxillofacial plates?
We offer a full range of thicknesses including 0.6mm, 0.8mm, 1.0mm, and 1.4mm to suit various surgical requirements and patient needs.
How quickly can orders be shipped?
We maintain an adequate inventory for standard specifications and can typically ship within 1 to 5 days.
