Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel

1 / 5

Reliable External Fixator for Bone Fixation, White & Black, Stainless Steel

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO. External Fixation

Feature Reusable

Certification CE, ISO13485

Color White & Black

Usage Bone Fixation

Material Type Titanium Alloy & Stainless Steel

Name External Fixator

Transport Package Box

Specification 50*50*50CM

Origin China

HS Code 90211000

Production Capacity 500,000 Pieces/Year

Product Overview

External Fixator -- The Pinnacle of Modular Fixation Systems

The ultimate solution in bone fixation, setting a new standard in the industry. Experience the next level of medical innovation with these outstanding features.

Groundbreaking technology with intuitive, user-friendly operation.
Independent arrangement of bone screws for proximal and distal fractures.
Snap-fit design for streamlined and time-efficient surgical procedures.
Premium Medical aluminum and carbon fiber materials for clear visualization.
Unparalleled stability and flexibility for diverse medical needs.
Compact, space-saving frame for easy transport and use.
Expertly designed for complex fractures and soft tissue loss.

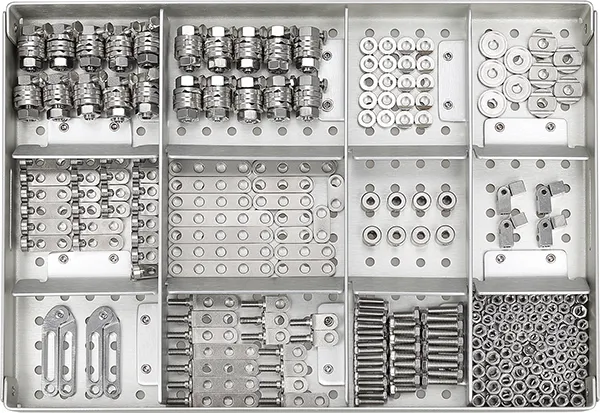

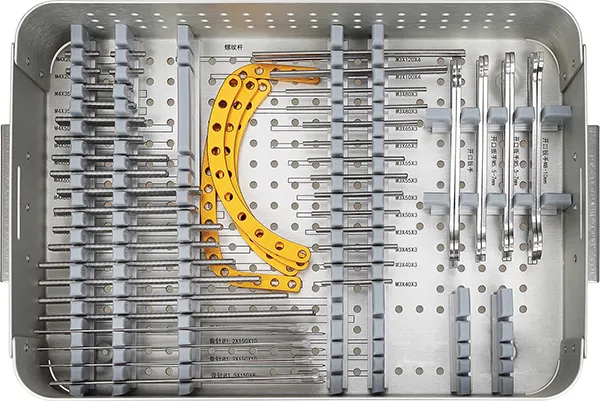

Component Description	Specification	Qty
Independent Coupling	φ6*φ14(1.5-2.0)	10
Needle Clip	φ4*φ9 (φ1.0)	5
Cone Washer	φ4*φ9	10
Double Groove Needle Clamp	φ4*φ14(2.0-2.5)	5
Post With Threaded Post	φ415(1 Hole)M4	8
Connection Plate	φ4*20 (2 Hole)	4
Straight Connection Plate	φ4	4
Fixator(Hinge)	M4*20mm	4
Hex Nut	M3/M4	90
Bone Screws	1.0/1.2/1.5*150	20/20/8

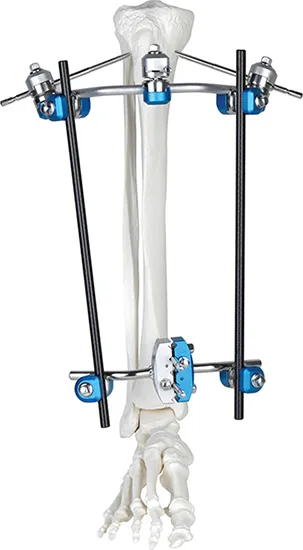

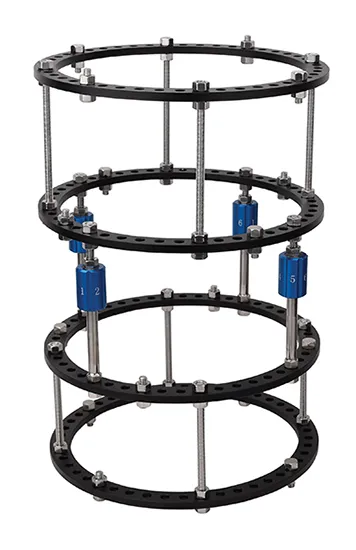

Lower Limbs Lengthening External Fixator
Used For Tibia Femur

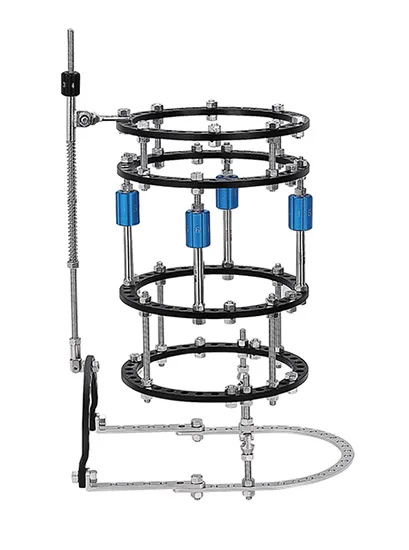

Orthopedic External Fixator
Used For Humeral & Tibial Lateral Epicondyle

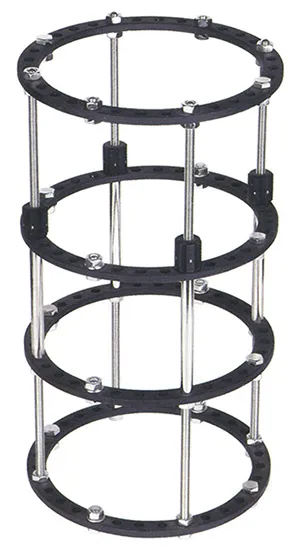

Ring Fixator
Used For Tibia Femur

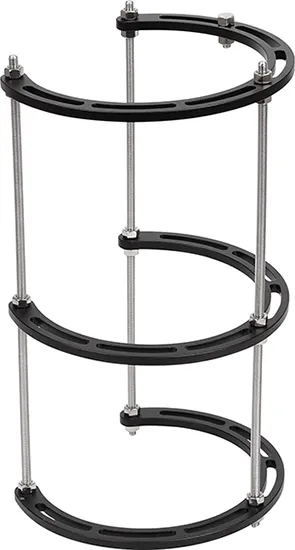

2/3 Ring Fixator
Used For Tibia Femur

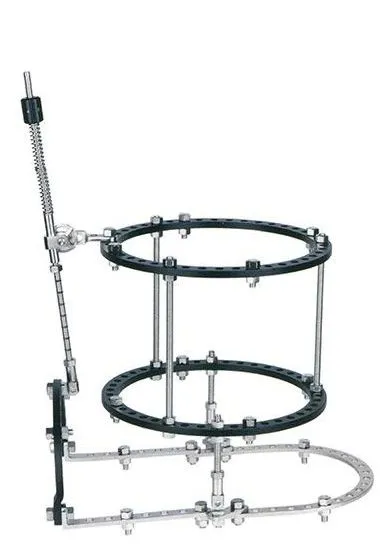

Ankle Joint Fixator
Used For Equinus

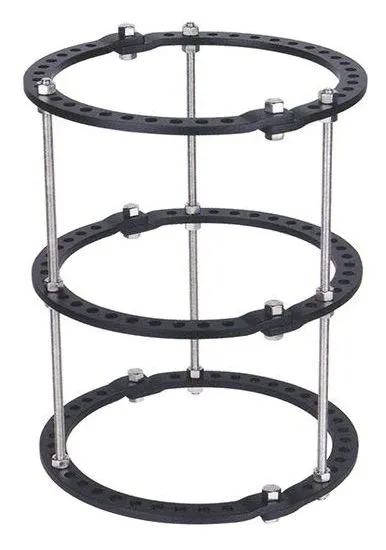

Ring Fixator
Used For Tibia Femur

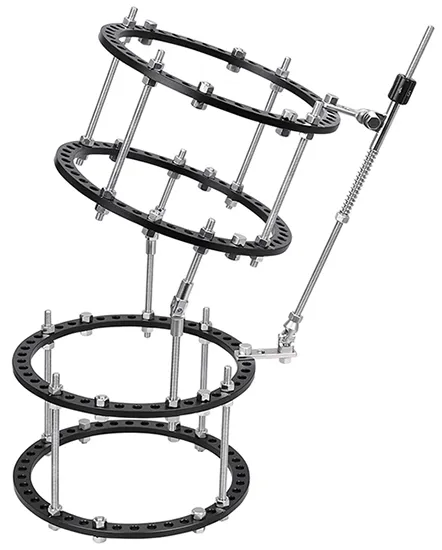

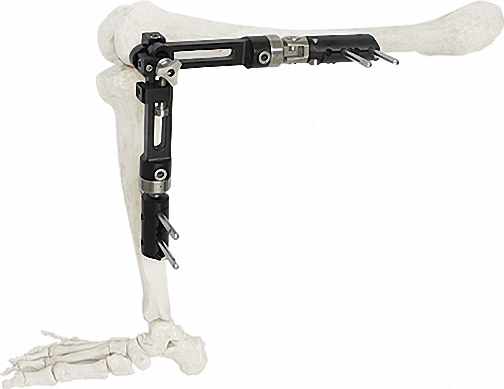

Knee Joint Fixator
Used For Knee Joint

Ring Fixator
Used For Tibia Femur

Frequently Asked Questions

1. What materials are used in the External Fixator? The system is crafted from high-grade Titanium Alloy and Stainless Steel, with some components utilizing medical-grade aluminum and carbon fiber for enhanced visualization.

2. Is the External Fixator system reusable? Yes, the core components of this external fixation system are designed to be reusable after proper sterilization procedures.

3. What types of fractures is this system suitable for? It is ideal for complex bone fractures, limb lengthening, soft tissue loss management, and fixation of both proximal and distal fractures in the tibia, femur, and humerus.

4. Does the system allow for X-ray visualization? Yes, the use of premium medical aluminum and carbon fiber materials ensures excellent radiolucency, facilitating clear fracture visualization during and after surgery.

5. What certifications do these medical devices hold? Our external fixators are fully compliant with international standards, holding both CE and ISO13485 certifications.

6. How is the product packaged for transport? Each unit or set is securely packed in a specialized box to ensure safety and integrity during international shipping.
