Product Description

Basic Info

Model NO.BS EN 1563

TypeShoulder

MaterialsQt500

Transport PackagePallet

SpecificationRailway Standard

OriginChina

HS Code730240

Production Capacity500000 Pieces/Year

Product Description

A rail shoulder is a pre-inserted item in the concrete sleepers, no matter for single stem type or twin stem type, used to fix the elastic rail clips, mainly e-clips, within the fastening system.

Two types of rail shoulders for rail clips are available: cast in shoulder and weld-on shoulder.

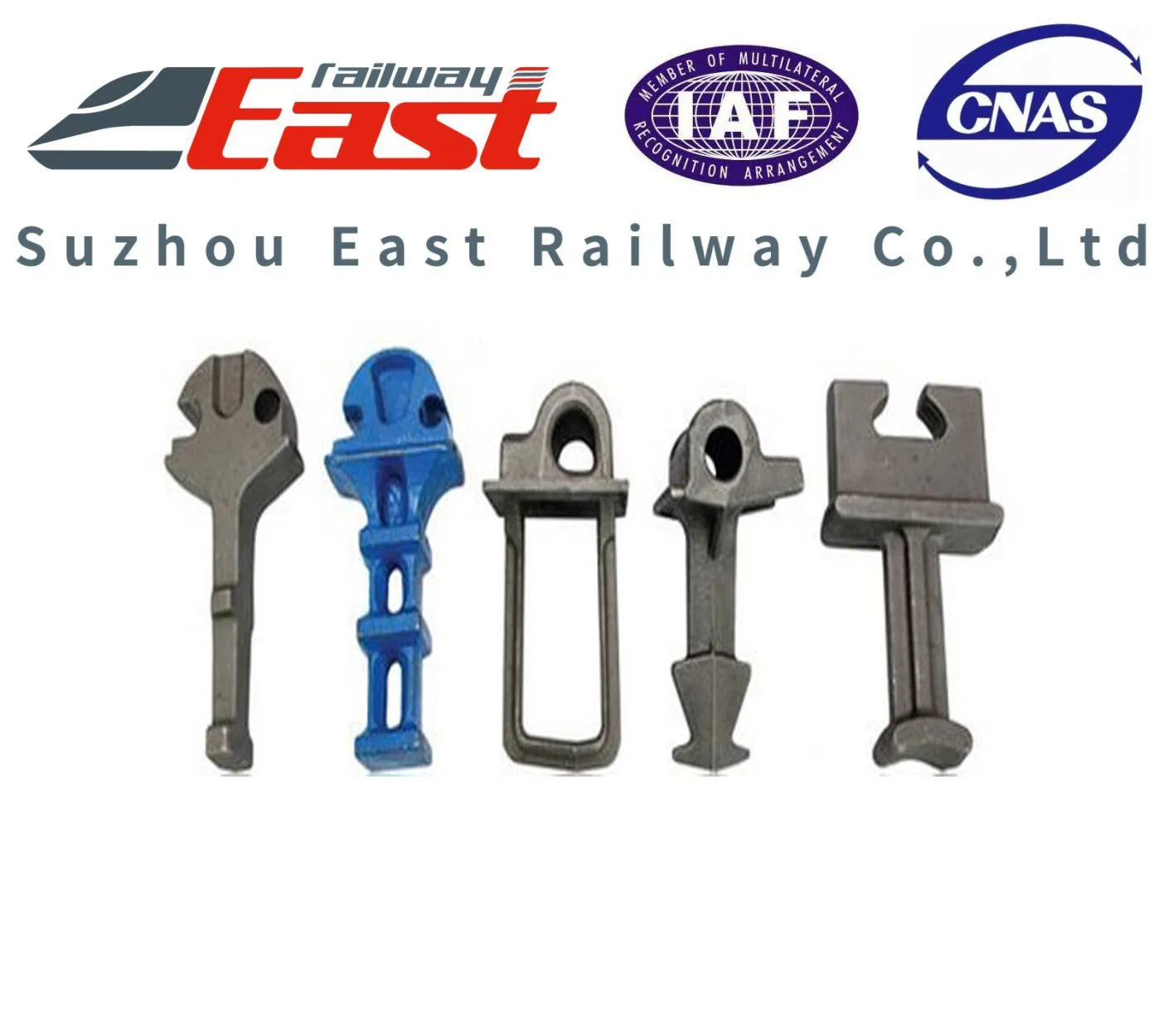

Casting Rail Shoulders

Cast in Shoulder is made by casting from iron, and such shoulder is used by being pre-embedded in the concrete sleepers and works with the elastic clip to fasten the rail.

Materials for cast in shoulder include: M.C.I. shoulder by malleable iron and S.G.C.I. shoulder by malleable iron and S.G.C.I. shoulder by spheroid graphite iron. Other materials available: QT600-3, QT700-2, ZG25, ZG35, ZG45, and more.

Standards: GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).

Weld-on Shoulder

Weld-on shoulder is made by hot forging, used for places where standard sleepers are unable to be easily used. The shoulders are welded on the flat steel base plates to fabricate the rail retaining units on both the steel ties and base plates, according to AREMA standard.

Weld-on shoulders can be applied for Pandrol style clips with a range of 30lbs to 113lbs.

Special Rail Shoulder

Produced by hot forging, these are used together with rail clip bolts and special rail clips to fasten the rail, with materials of low or mid carbon steels.

Freight Wagon Overview

Freight wagons require a large number of spare parts during long-term operation. We supply most of the spare parts needed for freight wagons globally.

Module	Parts
Bogie	Side Frame
	Bolster
	Center Plate
	Wedge
	Adapter
	Stopper Key
	Wearing Plate
	Fastener
Air Brake System	Brake Components
Draft Gear System	Coupler
	Knuckle
	Yoke
	Draft Gear
	Draft Key
	Striker
	Control Rod
Car Body	Structure Parts
Accessories	General Parts

Technical Description: Wheel Set

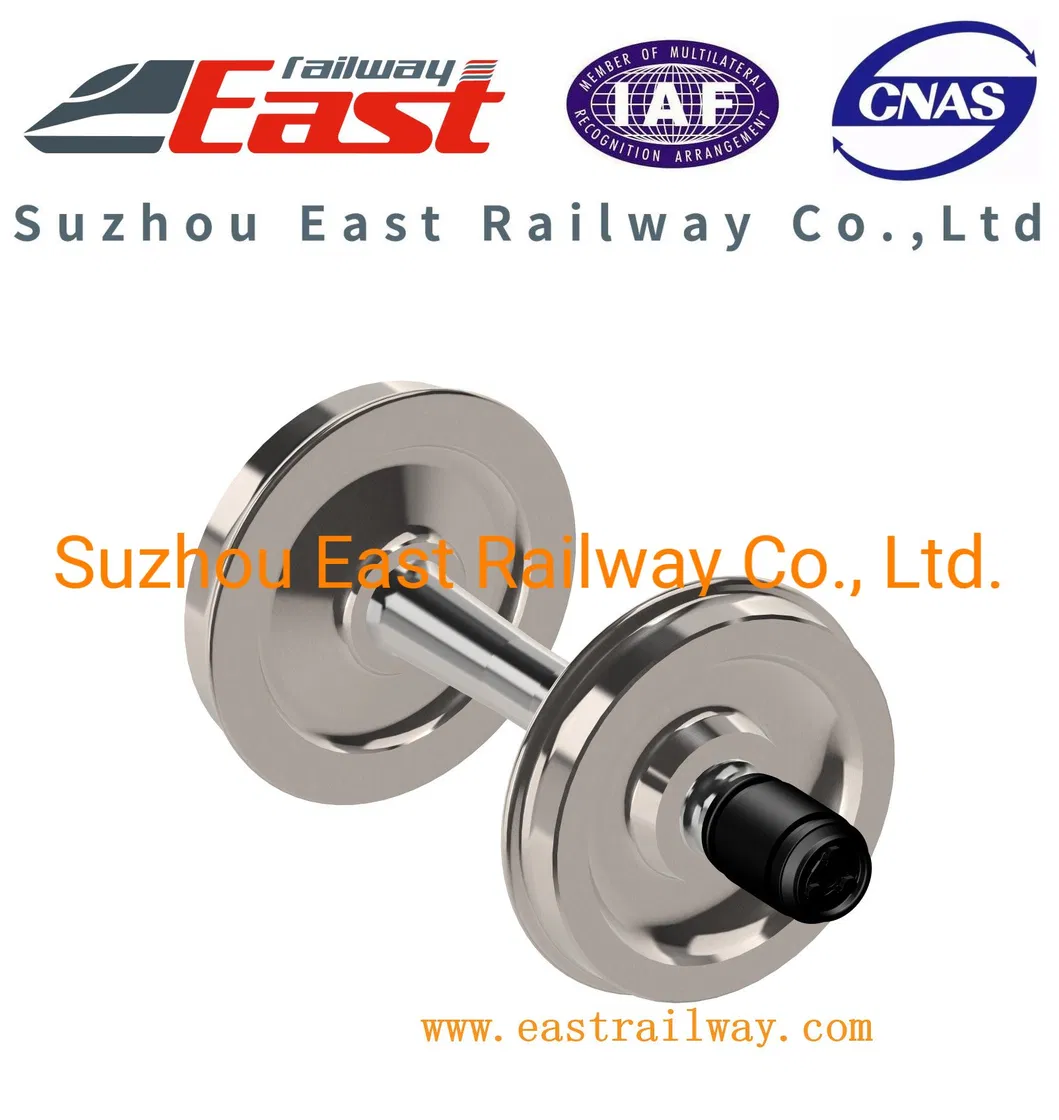

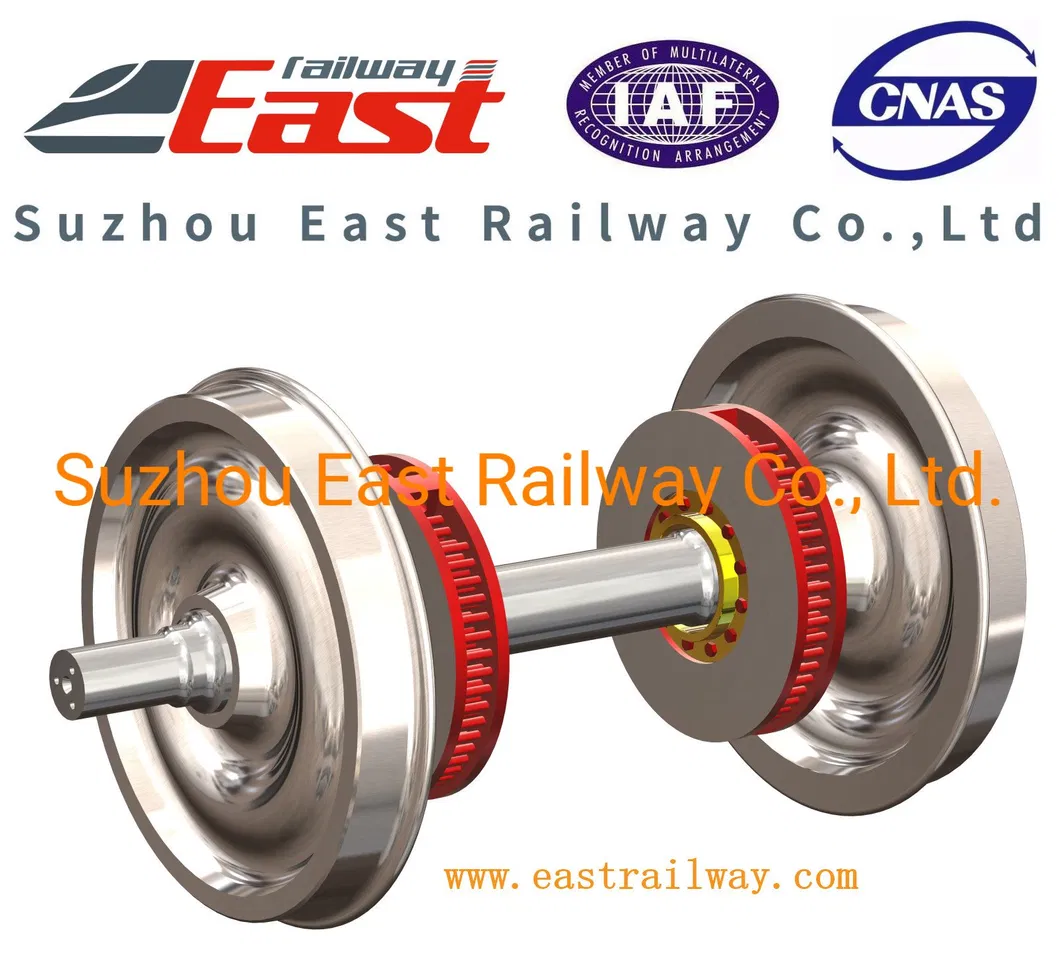

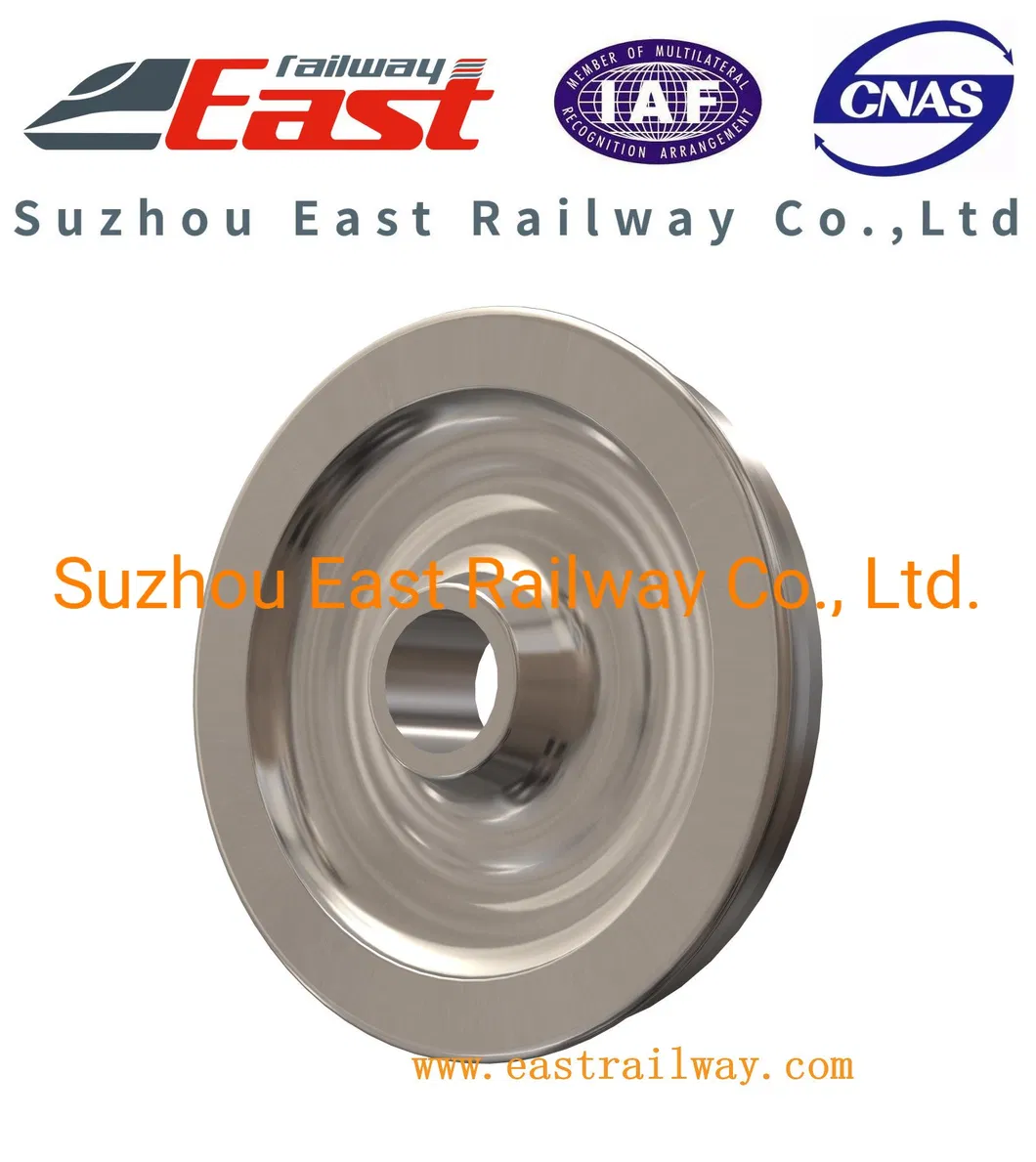

The wheel set is a key component of the Railway Bogie and the most important spare part in the railway industry. One wheel set contains two wheels, one axle, and two bearings. Depending on application, parts like gears, brake discs, and axle boxes can be included.

They are used on wagons, locomotives, passenger cars, and more. Configuration depends on vehicle and bogie performance parameters.

Relative Standards

TB/T 1718: Railway vehicle's wheelset installation requirements
UIC 813: Technical specification for tractive and trailing stock
BS 5892-6: Specification for traction and trailing stock wheelsets
EN 13260: Railway applications. Wheelsets product requirements
JIS E4504: Wheelsets for railway rolling stock quality requirements

About Our Expertise

Supplying and designing components for passenger carriages and freight wagons.
Technical team with extensive years of experience in the global Railway Industry.
Focus on project management, maintenance, system design, and integration.
Large inventory of products from leading manufacturers.
Global shipping and time-sensitive delivery fulfillment.

Service Flow

Frequently Asked Questions

What is the primary function of a rail shoulder? Rail shoulders are pre-inserted into concrete sleepers to fix elastic rail clips (like e-clips) within the fastening system, ensuring the rail remains securely attached to the sleepers.

What materials are used for casting rail shoulders? Casting shoulders are typically made from malleable iron or spheroid graphite iron (S.G.C.I.). Common grades include QT500, QT600-3, and QT700-2.

When should a weld-on shoulder be used instead of a cast-in shoulder? Weld-on shoulders are used in locations where standard concrete sleepers are not suitable, requiring the shoulders to be welded directly onto flat steel base plates or steel ties.

Which international standards do your rail shoulders follow? Our products comply with several global standards, including BS EN 1563, GB/T 1348, NF EN 1563, ISO1038, and AREMA for weld-on types.

What are the components of a standard railway wheelset? A standard wheel set consists of two wheels, one axle, and two bearings. It may also include specialized parts like gears or brake discs depending on the application.

Can special rail shoulders be customized? Yes, special rail shoulders can be produced via hot forging using low or mid-carbon steels to work with specific rail clip bolts and specialized fastening systems.
