| Model NO. | PD-GM-04 | Certification | CE |
| Application | Commercial | Material | Steel |
| Type | Ground Bracket | Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 | Lead Time | 7-15 Days |
| Surface Treatment | Magnesium Aluminum Zinc | Standard | AS/NZS1170/Jisc8955:2017 |
| Transport Package | Each Items Packed in Cartons, Several Cartons Pack | ||
| Package Size | 1100.00cm * 1100.00cm * 2400.00cm |
| Package Gross Weight | 100.000kg |

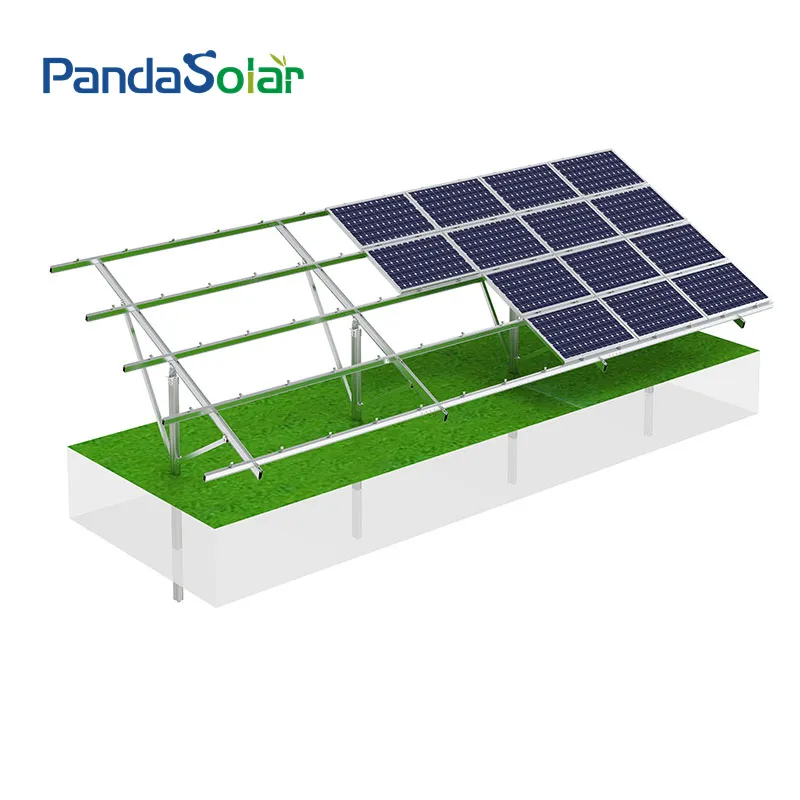

Magnesium Aluminum Zinc Ground Mounting Systems For Solar Panels:
The solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs must also be considered. It is necessary to control the cost and ensure the quality, so the service life of the bracket is very long. The support foundations are: straight into the ground, ground screws and cement piers.

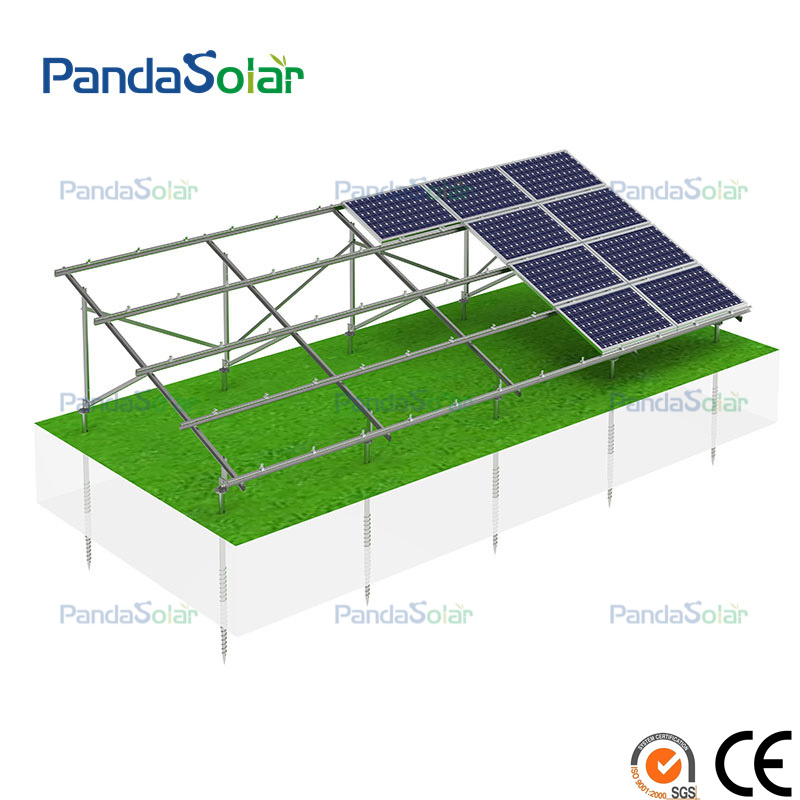

GM4 double column can be ground bolt column or piling column. Ground screw posts allow for tiny height adjustments. The piling column strength is higher, and the requirements for installation accuracy are also higher.

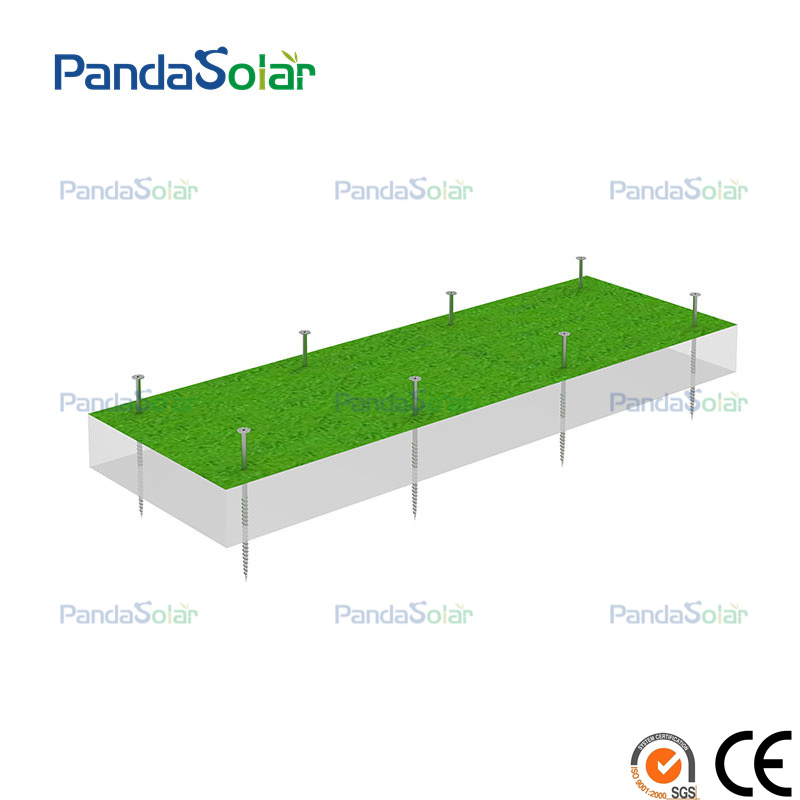

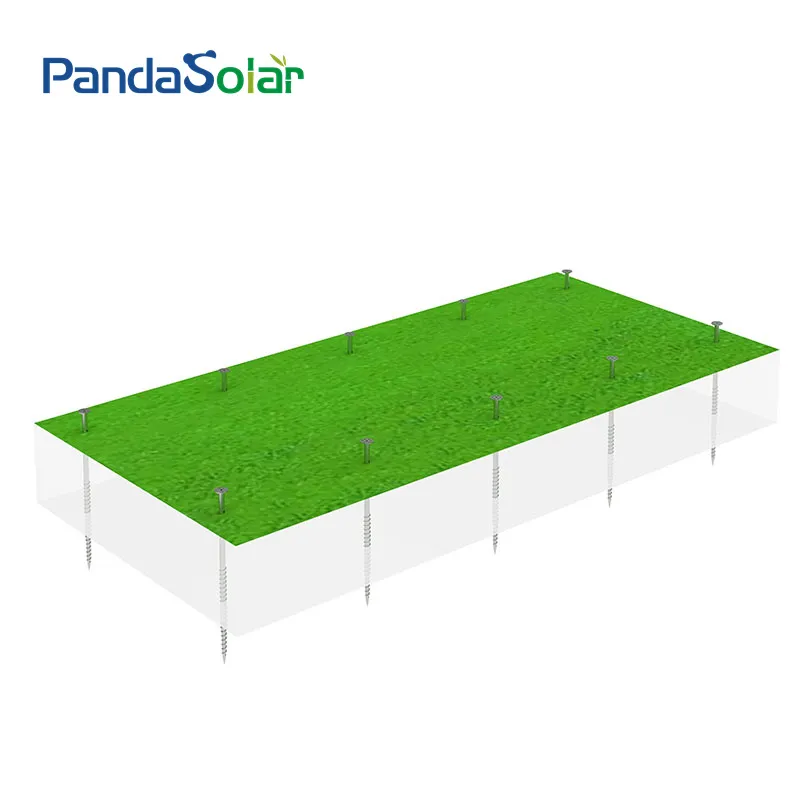

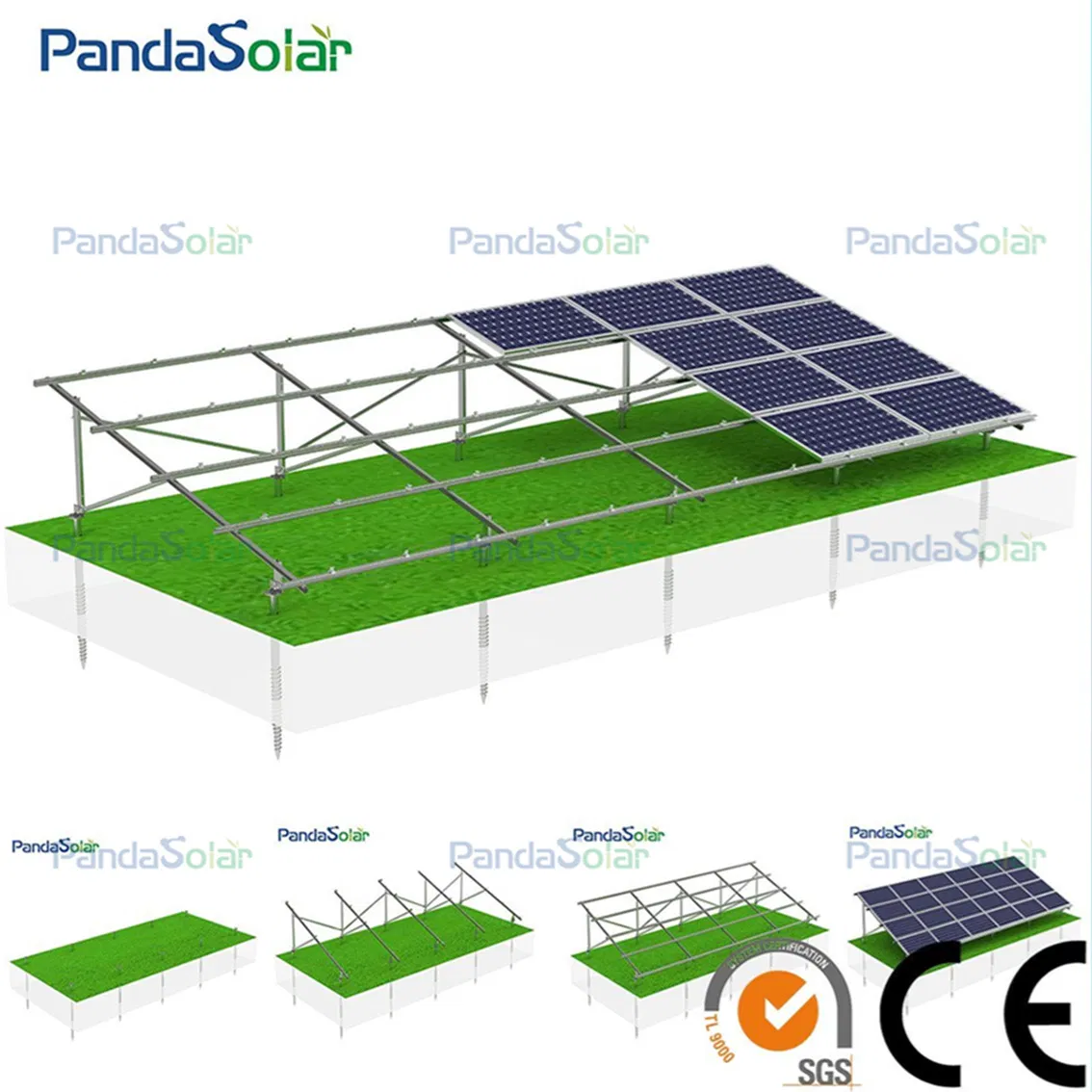

1. Installing Ground Screws: The first step in installing a ground mount solar system is to install the ground screws. These screws are used to anchor the support structure to the ground. The screws are drilled into the soil using specialized equipment.

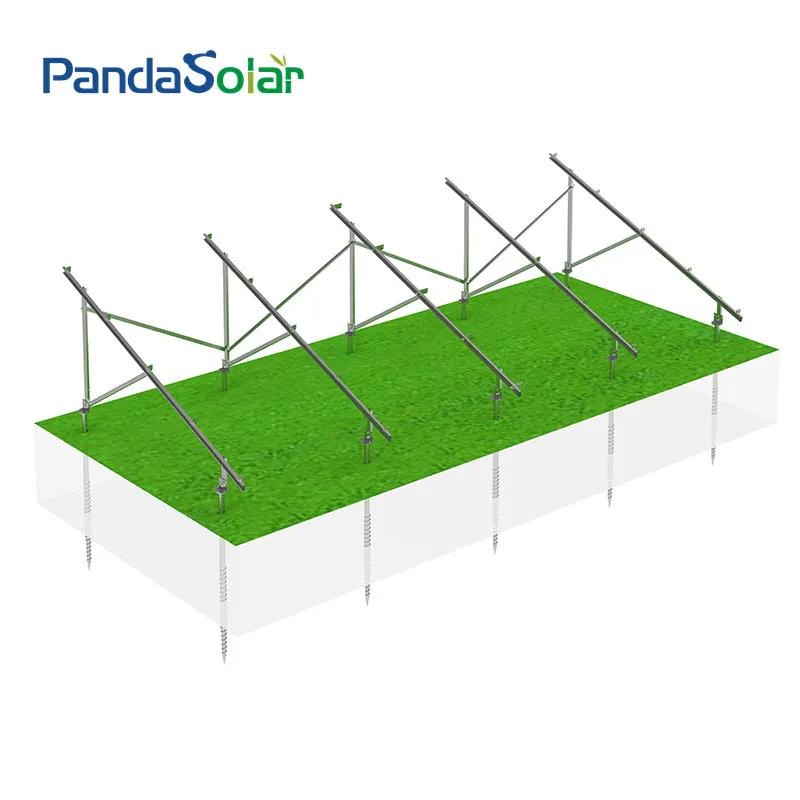

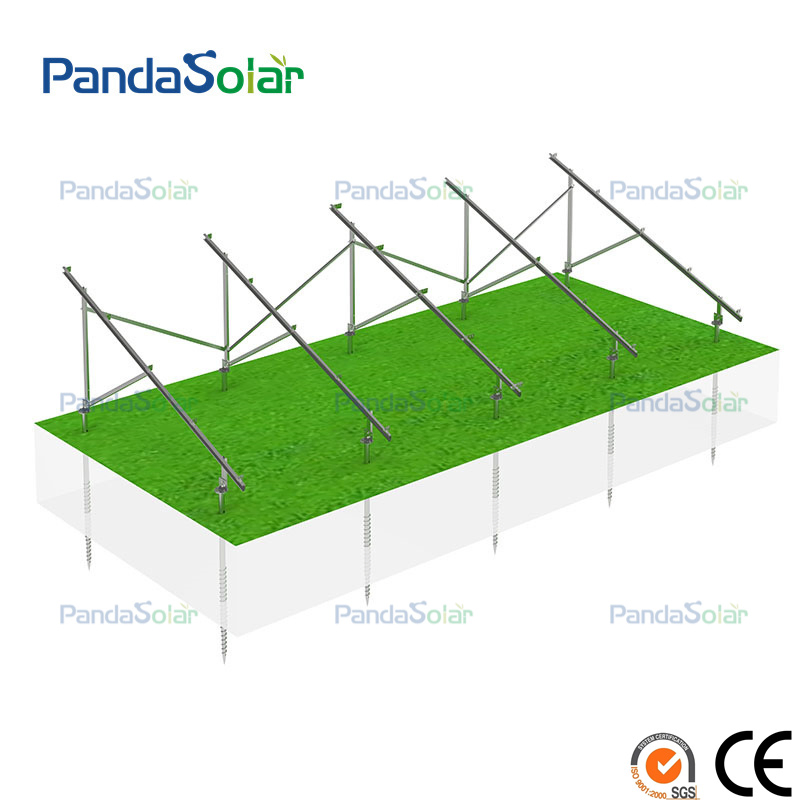

2. Install the Beams: After the foundation is ready, it's time to install the beams. Connect the diagonal support pole to the top of the pole using bolts and nuts securely.

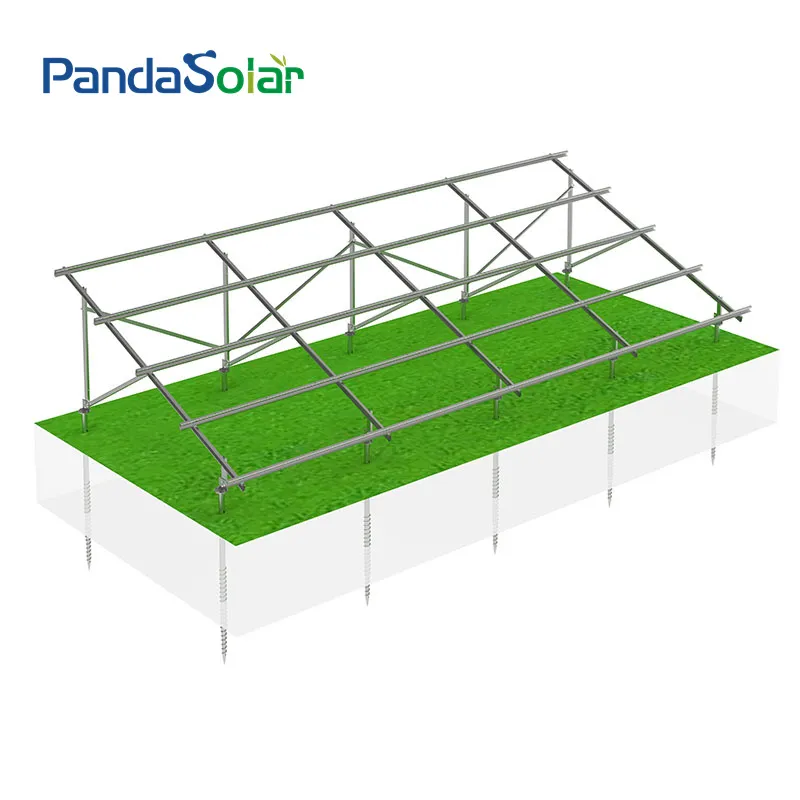

3. Installing Rails: After the beams are in place, attach the rail that will support the solar panels. The rail should be attached to the beam using brackets and bolts. Ensure that the rail is level.

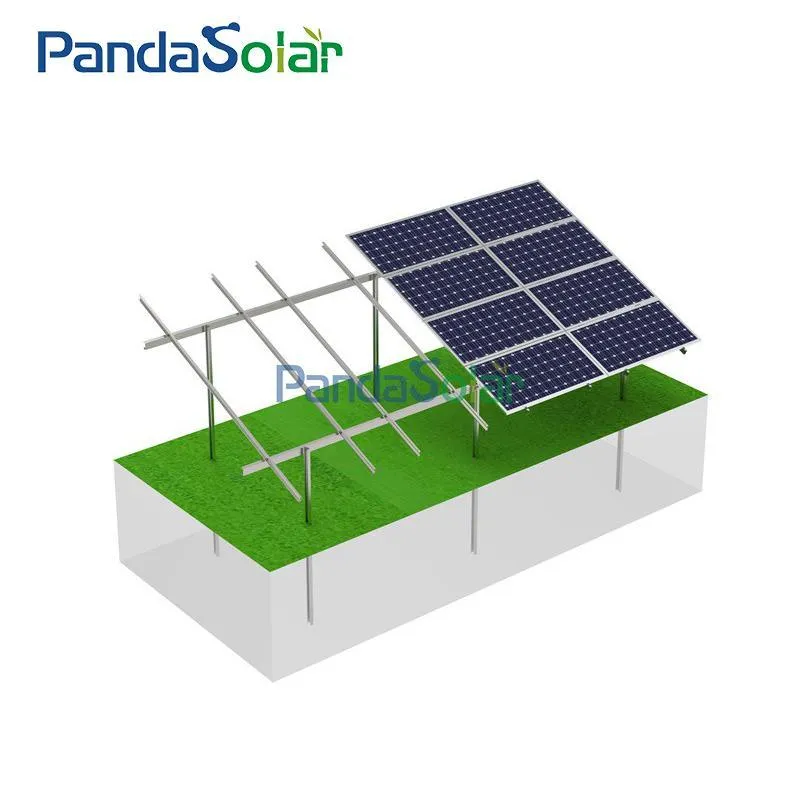

4. Installing Solar Panels: Finally, attach the solar panels to the rail using mounting hardware. Make sure that each panel is securely fastened to the rail.
Structural Features:
Our Advantages:
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized) Components: SUS304 & AI6005-5 (Anodized) |
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

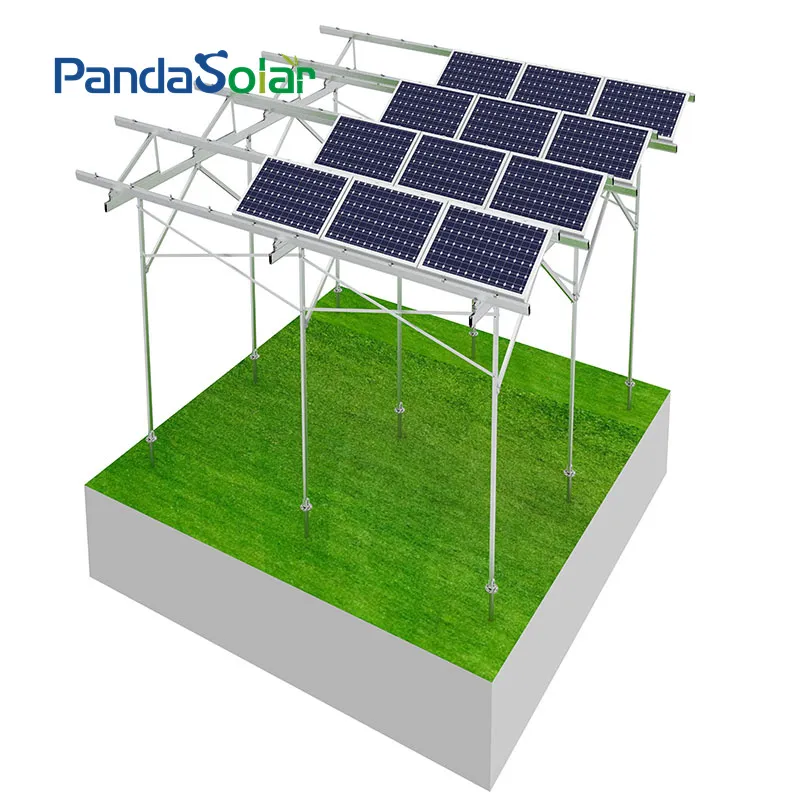

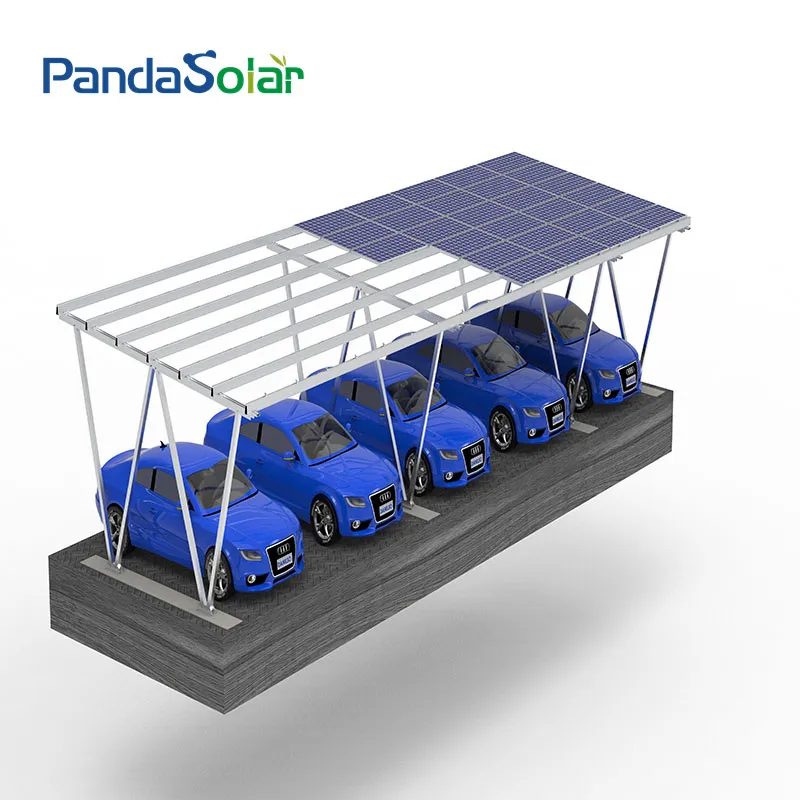

A professional design and sales team is committed to developing clean energy mounting systems, including ground, agriculture greenhouse, tile roof, metal roof, and carport systems.

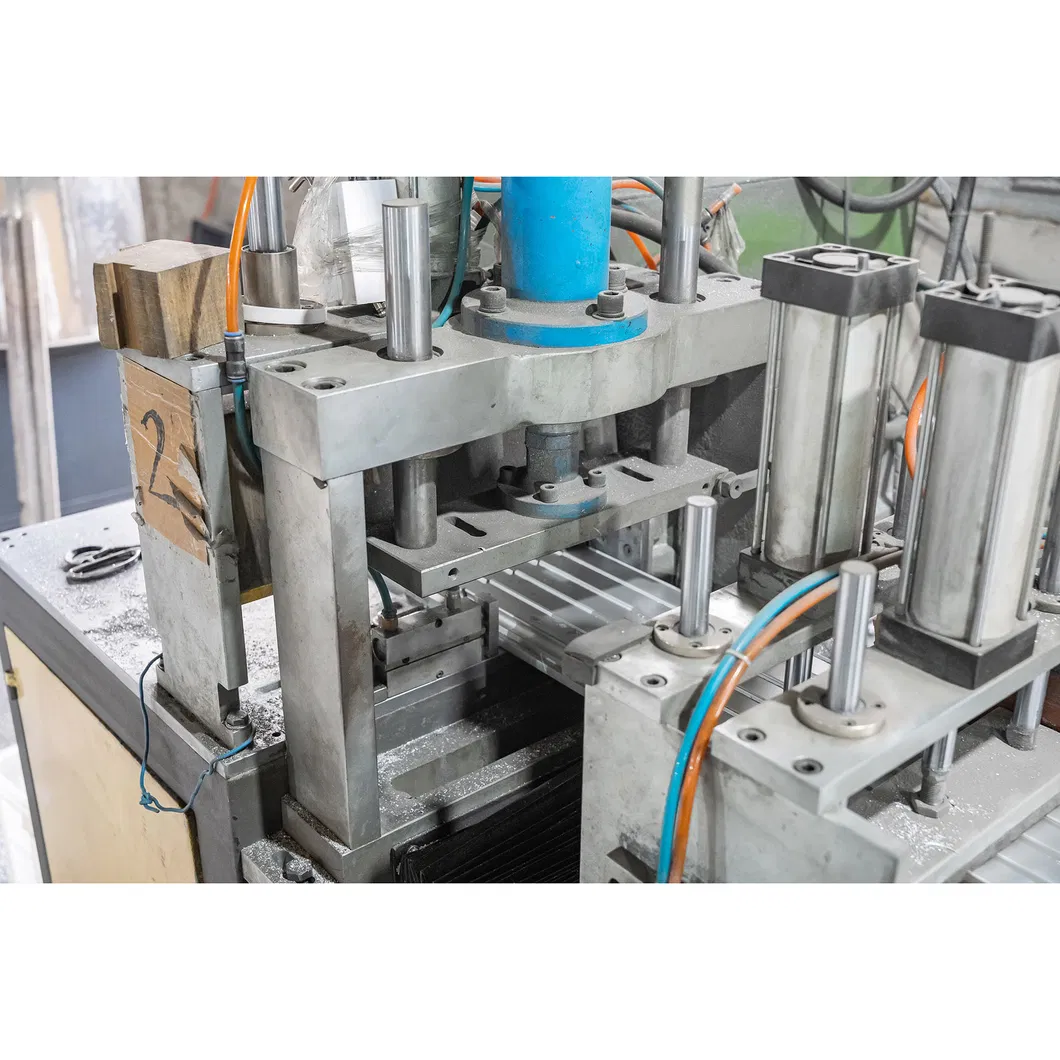

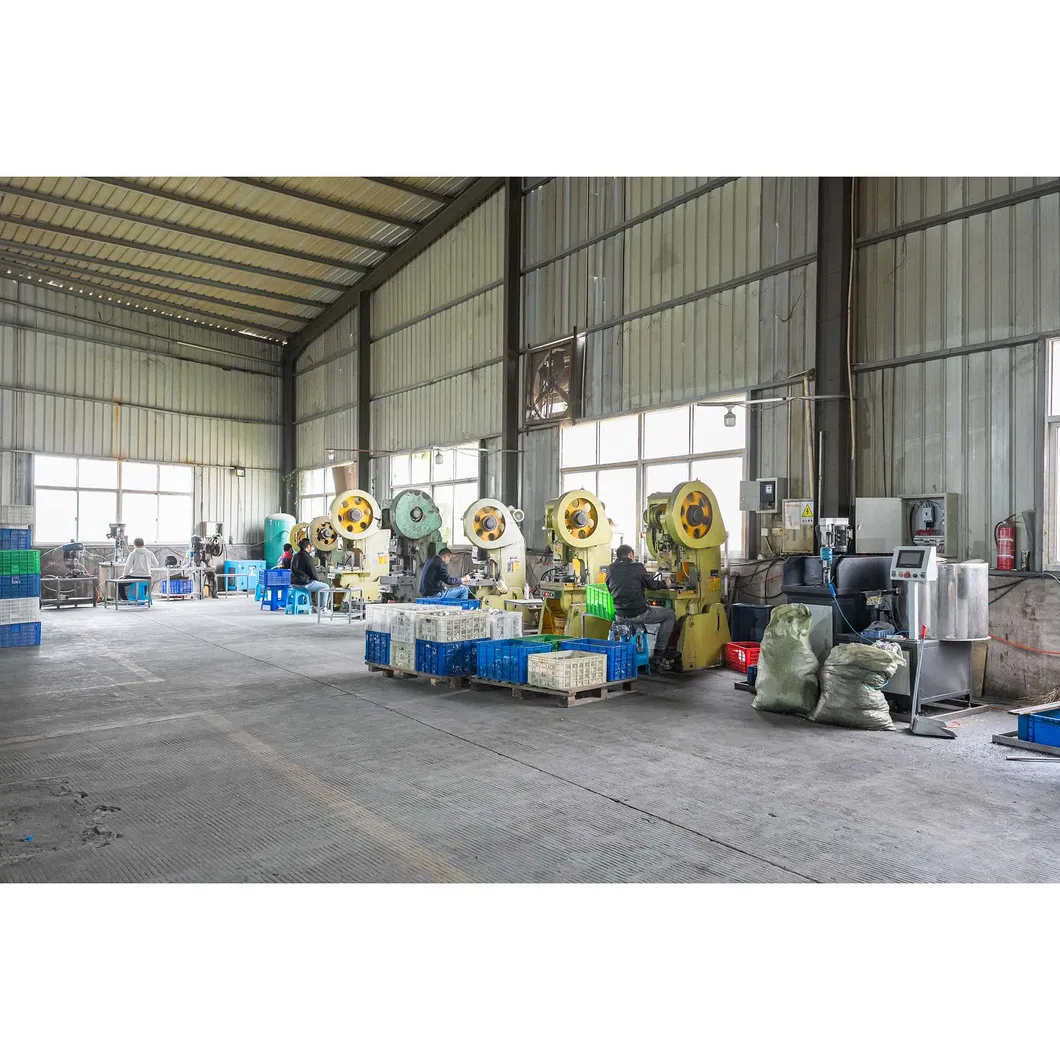

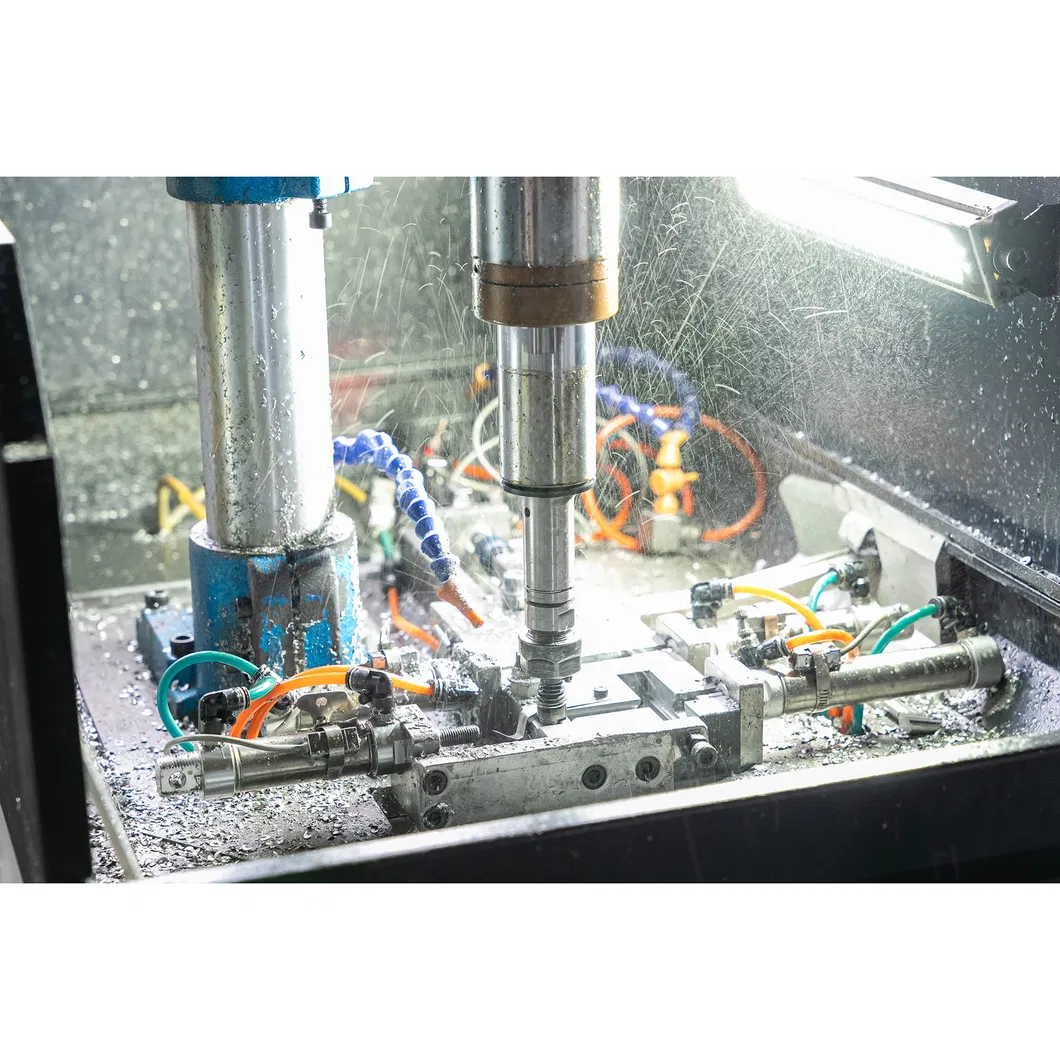

Workshop - Aluminum Material:
Independent processing workshop for cutting, drilling, stamping, and forging. High customization and precision requirements are accepted.

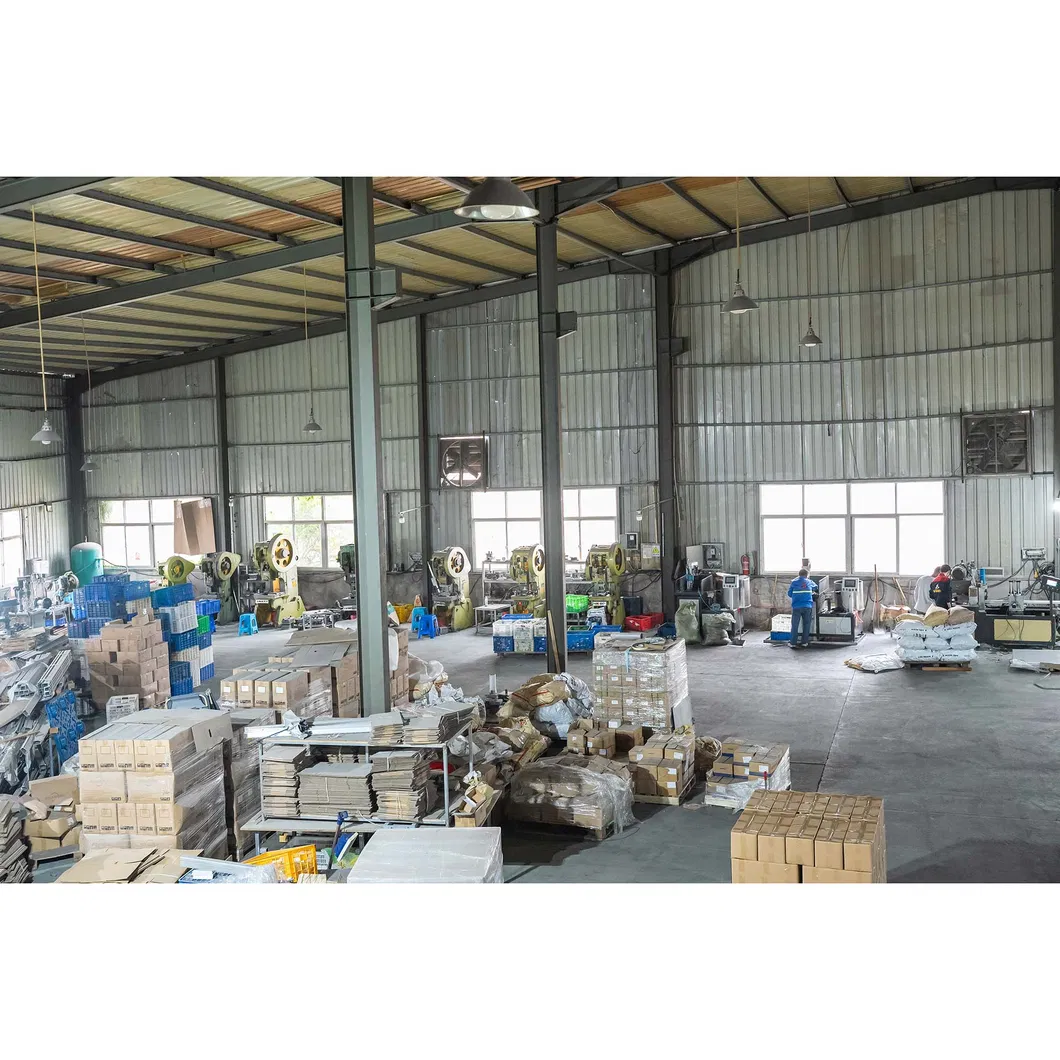

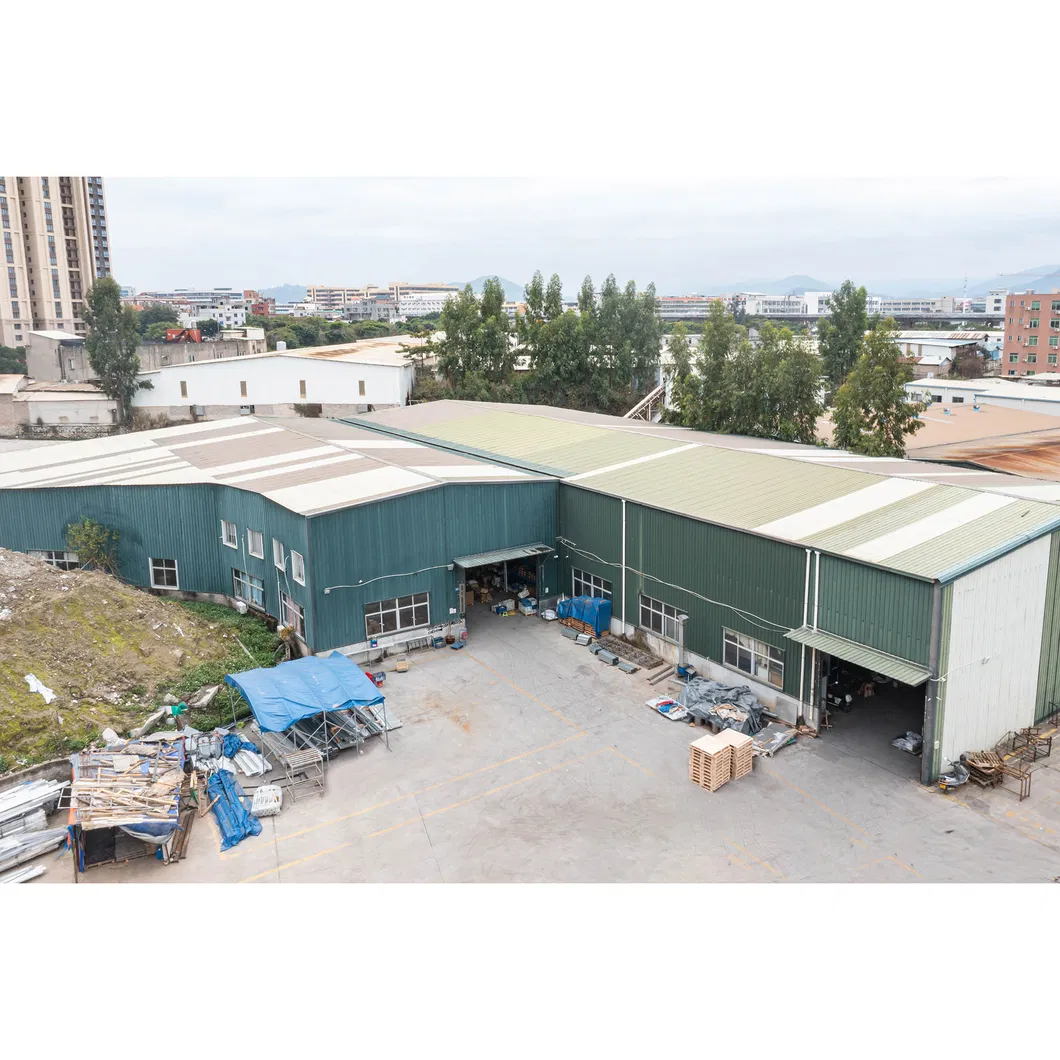

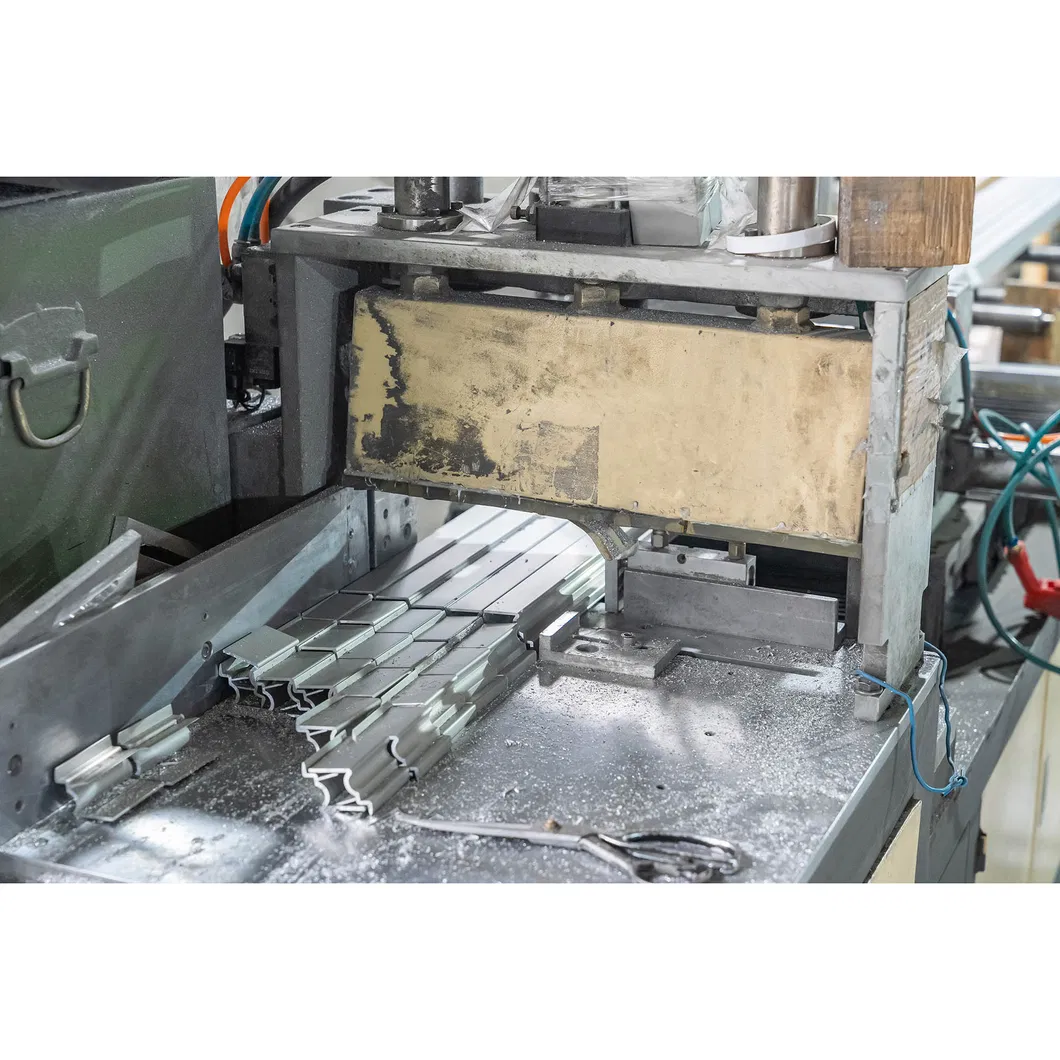

Workshop - Steel Material:
Professional steel/Magnesium aluminum zinc processing with 6 production lines. Productivity reaches 40-50MW per month.
