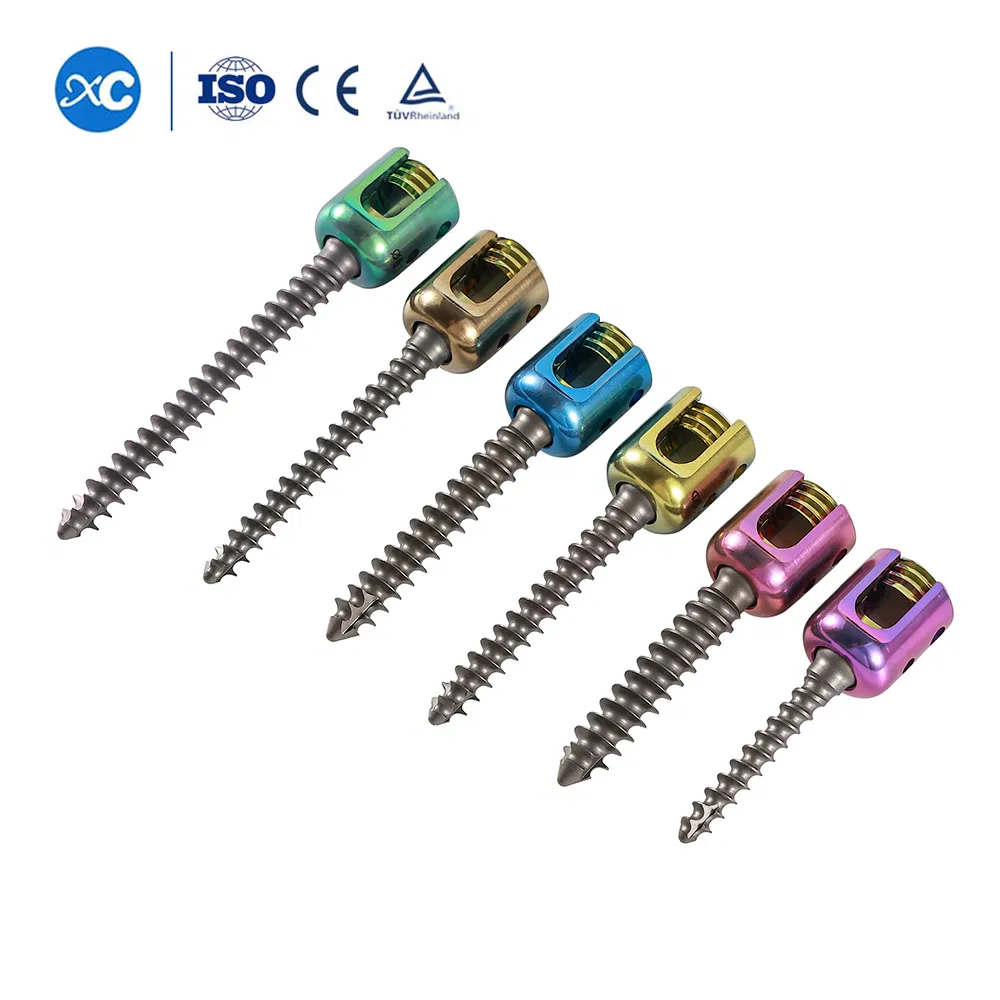

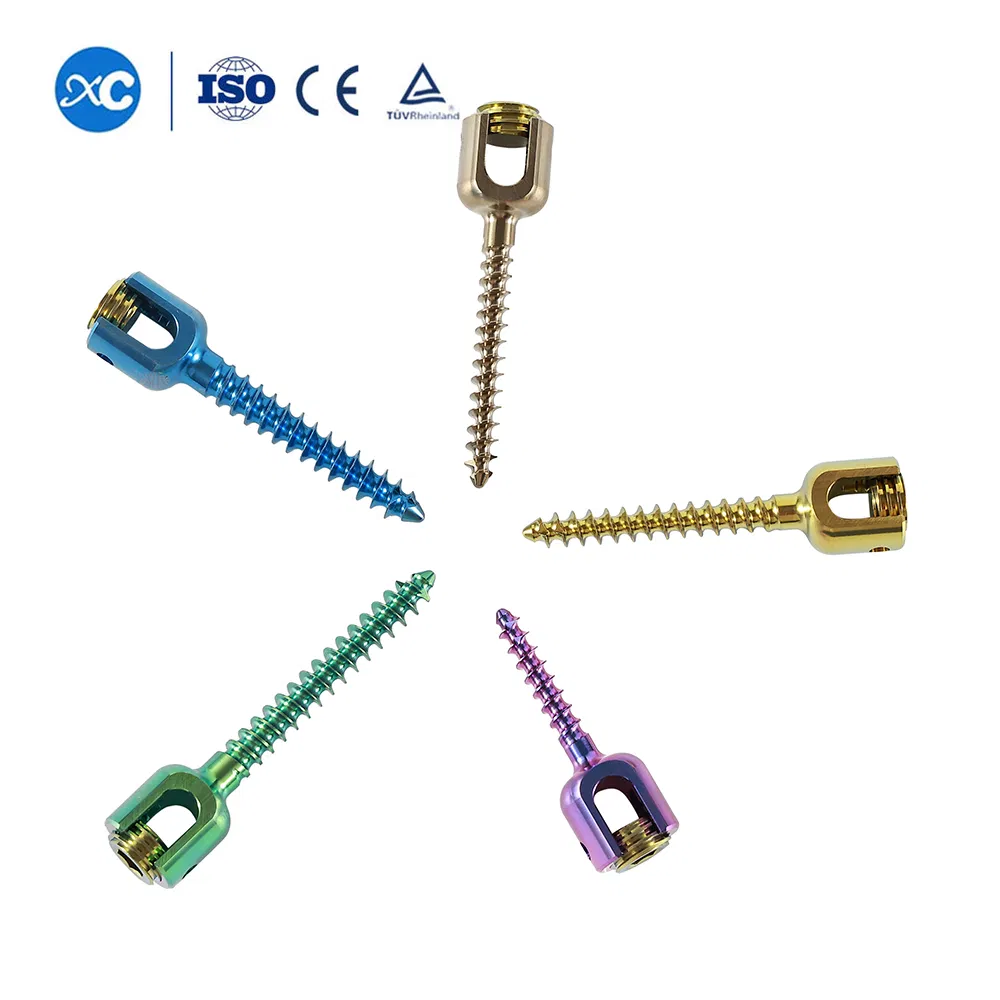

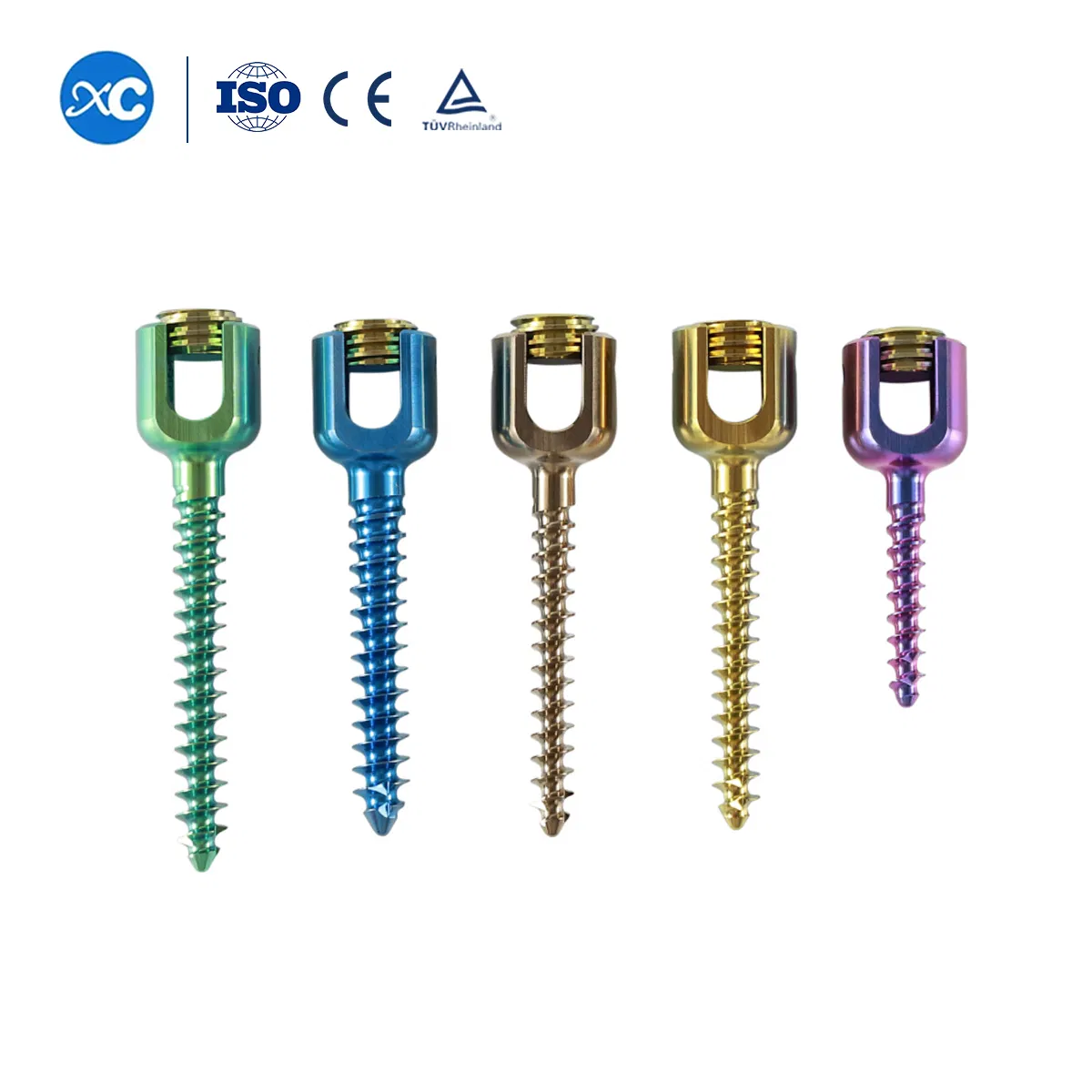

Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
1 / 5
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws
Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws

Orthopedic Spinal Internal Fixation 6.0 System Screw Polyaxial Spine Titanium Pedicle Screws

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Product Overview
Model NO.
6.0 Spinal Pedicle Screw System
Material
Titanium Alloy / Other
Quality Period
One Year
Group
Adult
MOQ
1 PCS
Certification
ISO13485/ISO9001
Spinal Pedicle Screw System
Product Description
⚙️
Comprehensive Screw Offering: 4.0mm-7.5mm.
Multiple curve correction and derotation options with cortical/cancellous threads ensure strong, reliable fixation. Self-Tapping, Dual Lead, Optimized Threadform for Fast Delivery and Superior Pull Out Resistance. Strong head body handles heavy loads in kyphotic and scoliotic curves.
Spinal Pedicle Screw System (6.0mm System) Specifications
Type Monoaxial Screw Monoaxial Reduction Polyaxial Screw Polyaxial Reduction Iliac / Others
Size Range Φ4.5 - Φ7.0
Length: 25-55mm		 Φ5.0 - Φ7.0
Length: 30-50mm		 Φ4.5 - Φ7.0
Length: 20-55mm		 Φ5.0 - Φ6.5
Length: 30-40mm		 Φ7.5 - Φ8.0
Length: 65-80mm
Rods & Links Titanium Rods: Φ6.0mm (Length: 100-400mm) | Crosslink: 60mm, 70mm, 80mm | Gradient Rods: 3.5*100 - 6.0*200mm

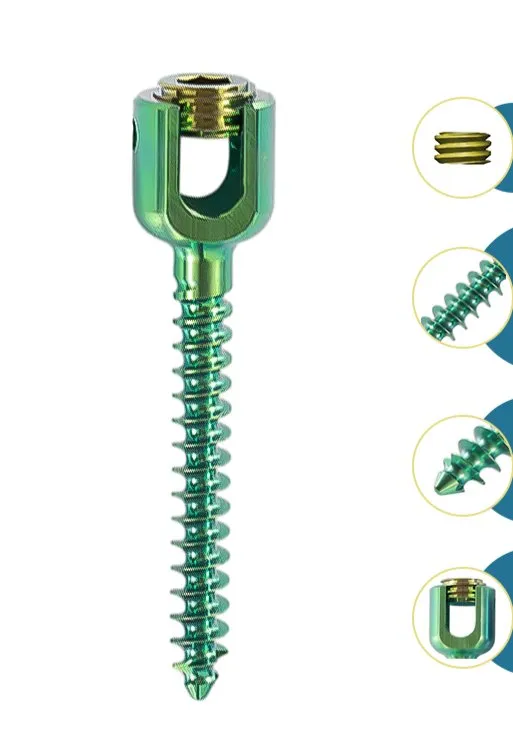

Screw Details
Product Features

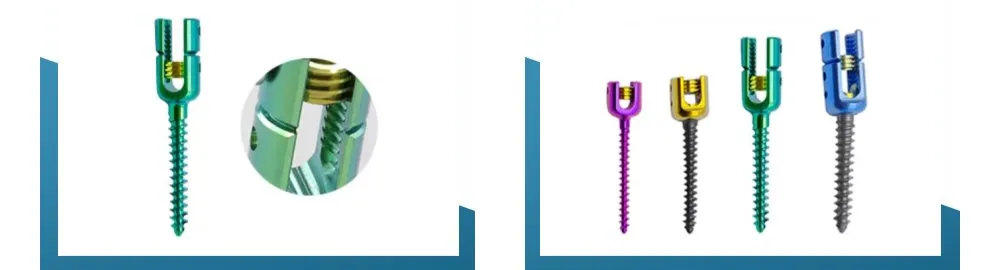

Design Features
🛠️
Extended tabs with notches on both sides facilitate tab removal and provide a smooth break-off surface.
🎨
Different screw sizes with distinct colors for easy identification during surgical operations.

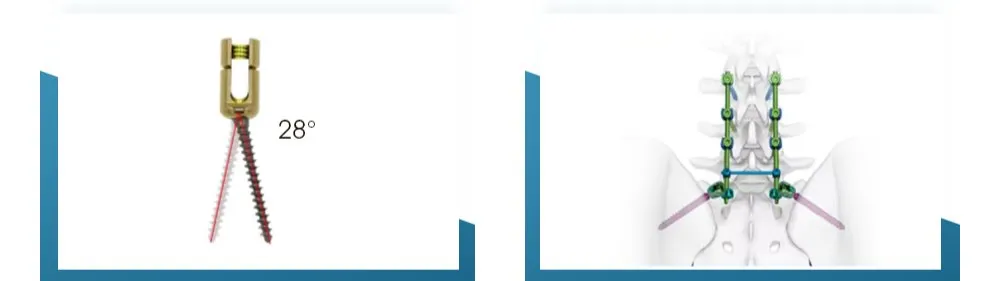

Polyaxial Features
📐
Maximum angle of polyaxial pedicle screw is 28 degrees, facilitating placement of the screw and rod.
🦴
Large diameter Iliac Screws provided for sacroiliac reduction and internal fixation.
Accessory Products
🧰

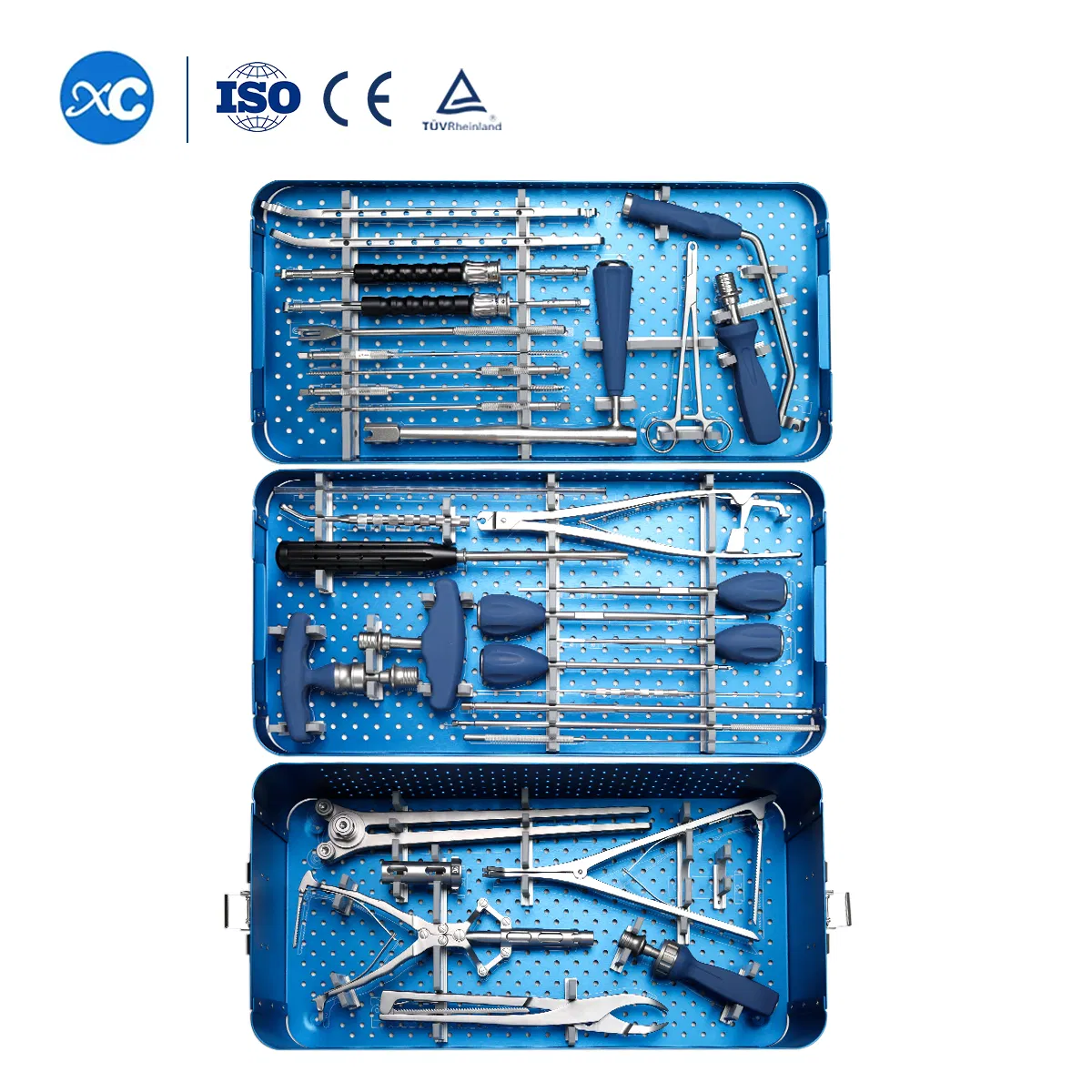

6.0mm Spinal Pedicle Screw System Instrument Set
Complete specialized tools designed for precise implantation and adjustment of the system.
Instrument Set
Frequently Asked Questions
What types of screws are available in the 6.0 Spinal System?
The system includes Monoaxial Pedicle Screws, Polyaxial Pedicle Screws, Monoaxial/Polyaxial Reduction Screws, and Iliac Pedicle Screws.
What is the benefit of the color-coded screws?
Different screw sizes are assigned specific colors to ensure quick and easy identification by the surgical team during operations, improving efficiency and safety.
How does the polyaxial screw assist in surgery?
The polyaxial pedicle screws offer a maximum angle of 28 degrees, which significantly facilitates the flexible placement of the screw and the alignment of the rod.
Are the screws self-tapping?
Yes, the screws feature a self-tapping, dual-lead design with an optimized threadform for fast delivery and superior pull-out resistance.
What certifications does the product hold?
The product is manufactured under strict quality standards and holds ISO13485 and ISO9001 certifications.
Is there a compatible instrument set?
Yes, a full 6.0mm Spinal Pedicle Screw System Instrument Set is available as an accessory product to support the implantation process.
