Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

1 / 5

Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO. ND-3511

Certification CE, ISO13485

Product Name Surgical Power Drill

Motor Type Brushless Motor

Warranty 2 Years

Package Aluminum Box

Operating Principle Total Hip Replacement

Voltage 100V-240V

📋

Product Description

Medical drill tools and equipment designed for orthopedic low-speed endoprosthesis and total arthroplasty replacement. These instruments are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. They can be used with K-wires or in intermediary interlocking nail surgery and arthroscopic surgery.

The whole unit is autoclavable. The imported brushless motor ensures low noise, high speed, high proper alignment, and a long service life. The system can adopt various flexible reamers and chucks easily during the surgical process.

📊

Technical Data

Working Voltage	14.4V
Output Power	130W
Unit rise in Temperature	≤ 25ºC
Input Voltage	AC 220V, 50Hz
Charging time	3 hours
Speed	300r/min
Non-loaded noise	63dB(A)
Torque	33000gcm

⭐

Technical Merits

Optimized for joint operations with low speed and great torque.
Compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit can be sterilized by high temperature and pressure up to 135ºC.
Variable speed control with carbonless motor for increased power selection.
Scientific balance technology reduces vibration and enhances handpiece control.
High concentricity ensures precision in HIP operation polishing.

🖼️

Product Display

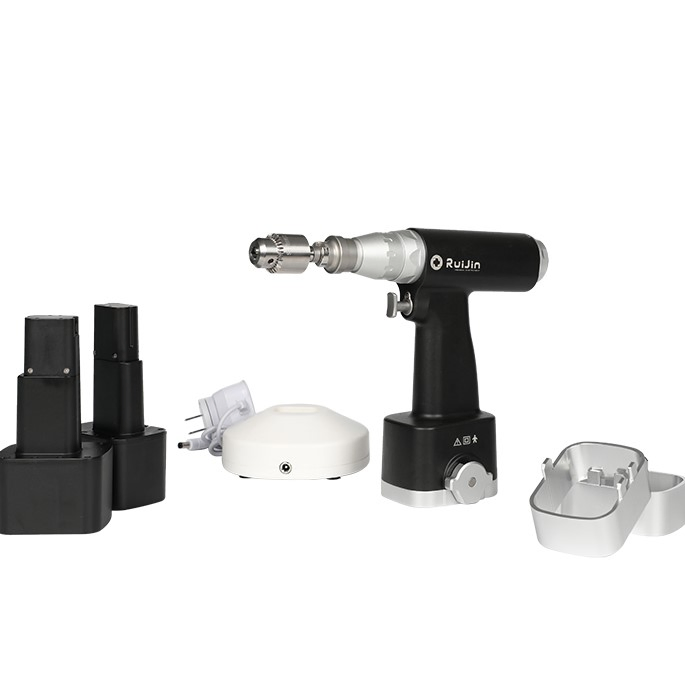

Standard Configuration includes: One handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy box.

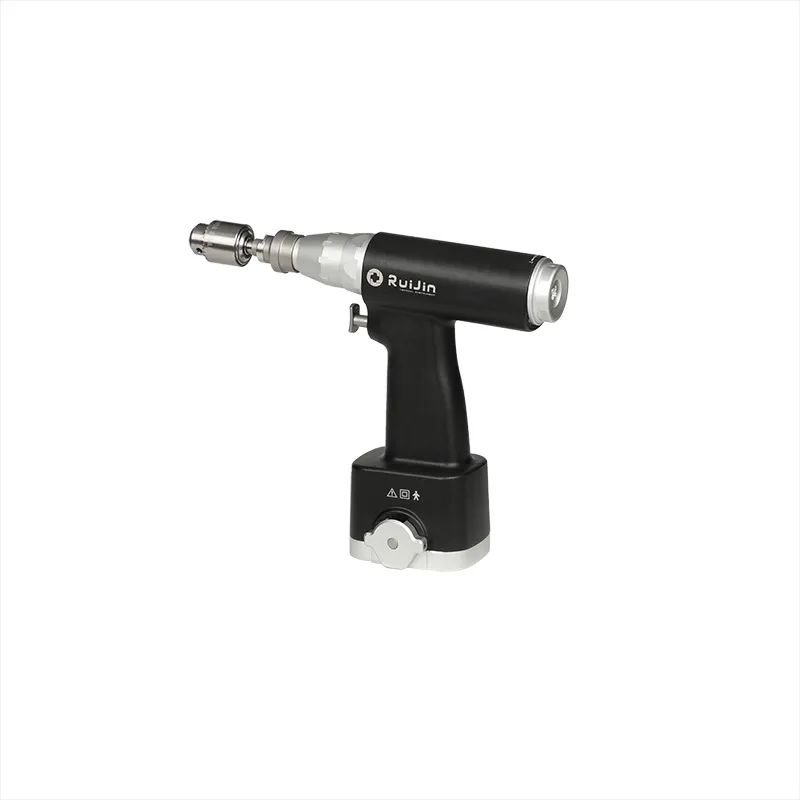

Hip joint drill with various optional adaptors (Stryker, AO, Hudson, etc.)

Each set includes 2pcs batteries for continuous power.

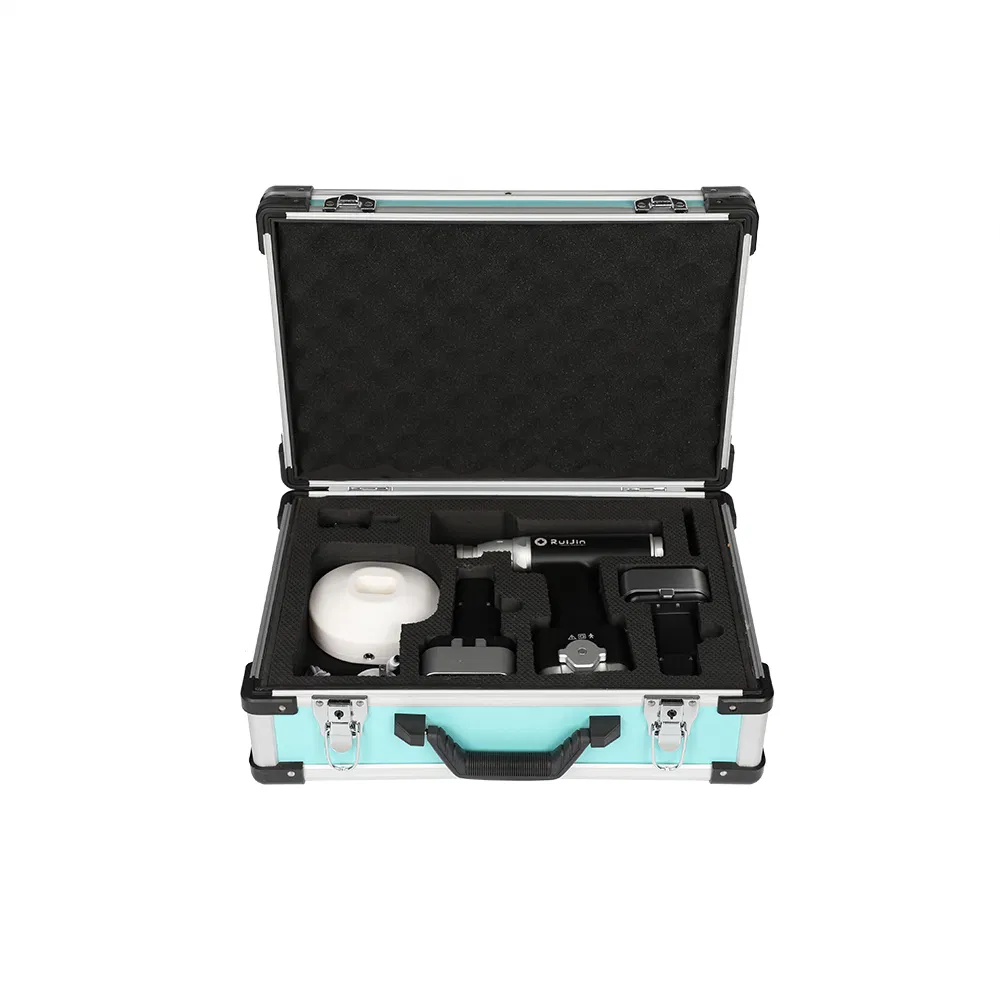

Complete set with aluminum case for shipping protection.

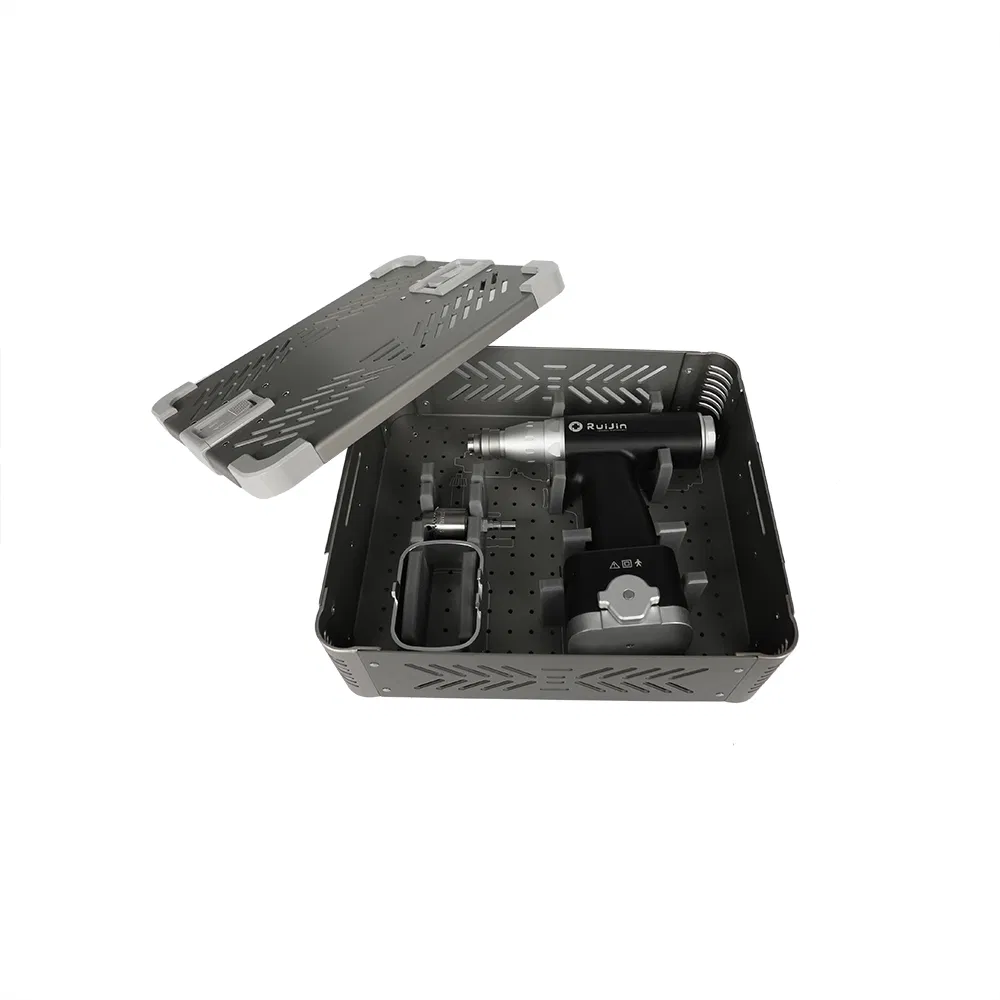

Specialized sterilization tray (Optional accessory).

📜

Certificates & Quality

⚙️

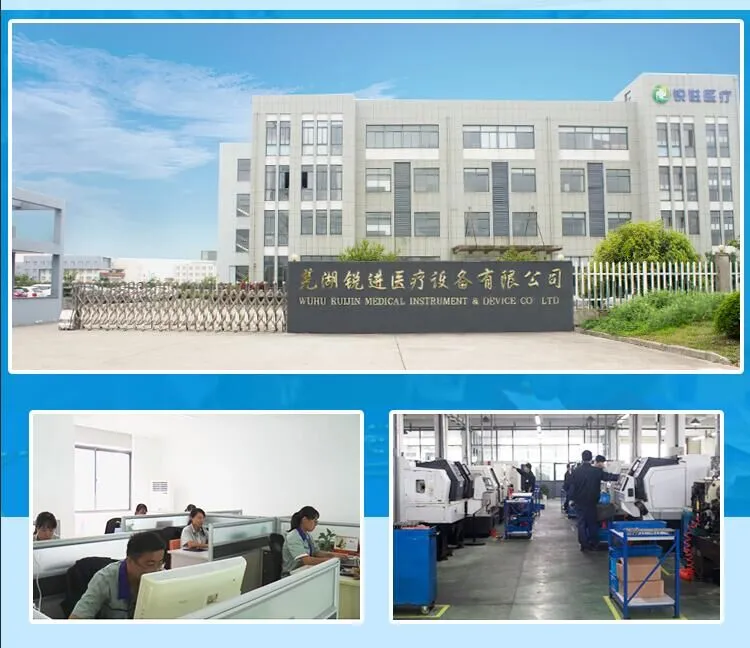

Manufacturing & Process

Focused on medical drill series and micro medical electric drill series for Trauma Surgery, Thoracic Surgery, Joint Operation, and Veterinary Orthopedic Surgery.

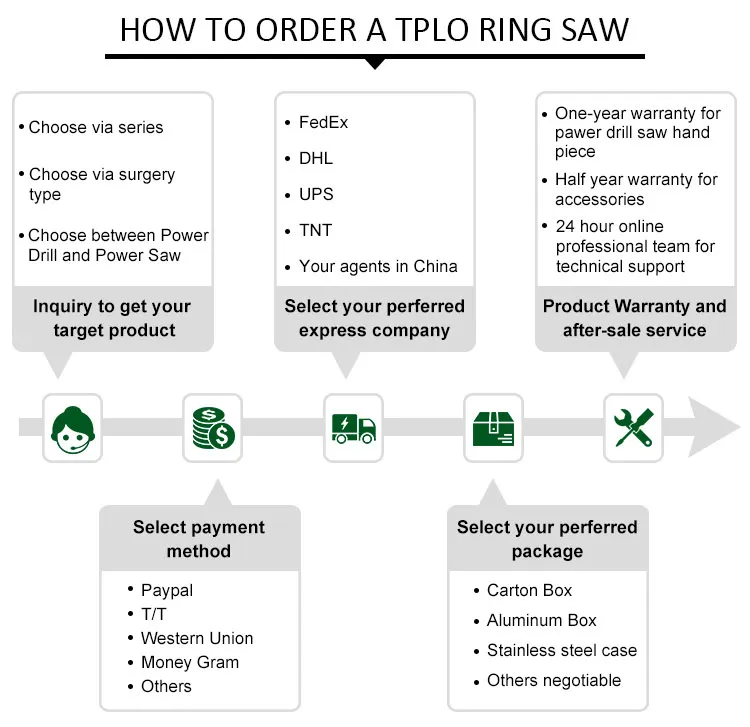

Ordering Process

⚠️

Important Notes

1. Professionals only	The device is forbidden to be demolished by non-professionals.
2. Power Compatibility	Supports electricity sources from 110V/60Hz to 220V/50Hz.
3. Battery Maintenance	Remove battery when not in use to prevent automatic discharge.
4. Sterilization Limit	Maximum sterilization temperature is 135ºC; exceeding this will damage the motor.
5. Cleaning	Clean drill bits and saw blades with a purifier and dry immediately after operation.

Frequently Asked Questions

Q1: What are the primary surgical applications for this power drill? A: It is widely used in trauma surgery, joint surgery (specifically total hip replacements), orthopedic surgery, and neurosurgery.

Q2: Can the entire unit be sterilized? A: Yes, the main unit is autoclavable and can be sterilized at high temperatures and pressures up to 135°C. However, the battery cannot be disinfected.

Q3: What is included in the standard configuration set? A: A standard set includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and an aluminum alloy protective box.

Q4: What are the technical advantages of the motor used? A: The device utilizes an imported brushless motor that provides low noise, high speed, high torque, and a long service life with precise alignment.

Q5: How long is the warranty period for this medical equipment? A: The product comes with a professional manufacture warranty of 2 years (Main unit motor for 12 months).

Q6: How long does it take to charge the batteries? A: The charging time is approximately 3 hours, and each set comes with two batteries to ensure continuous surgical operation.
