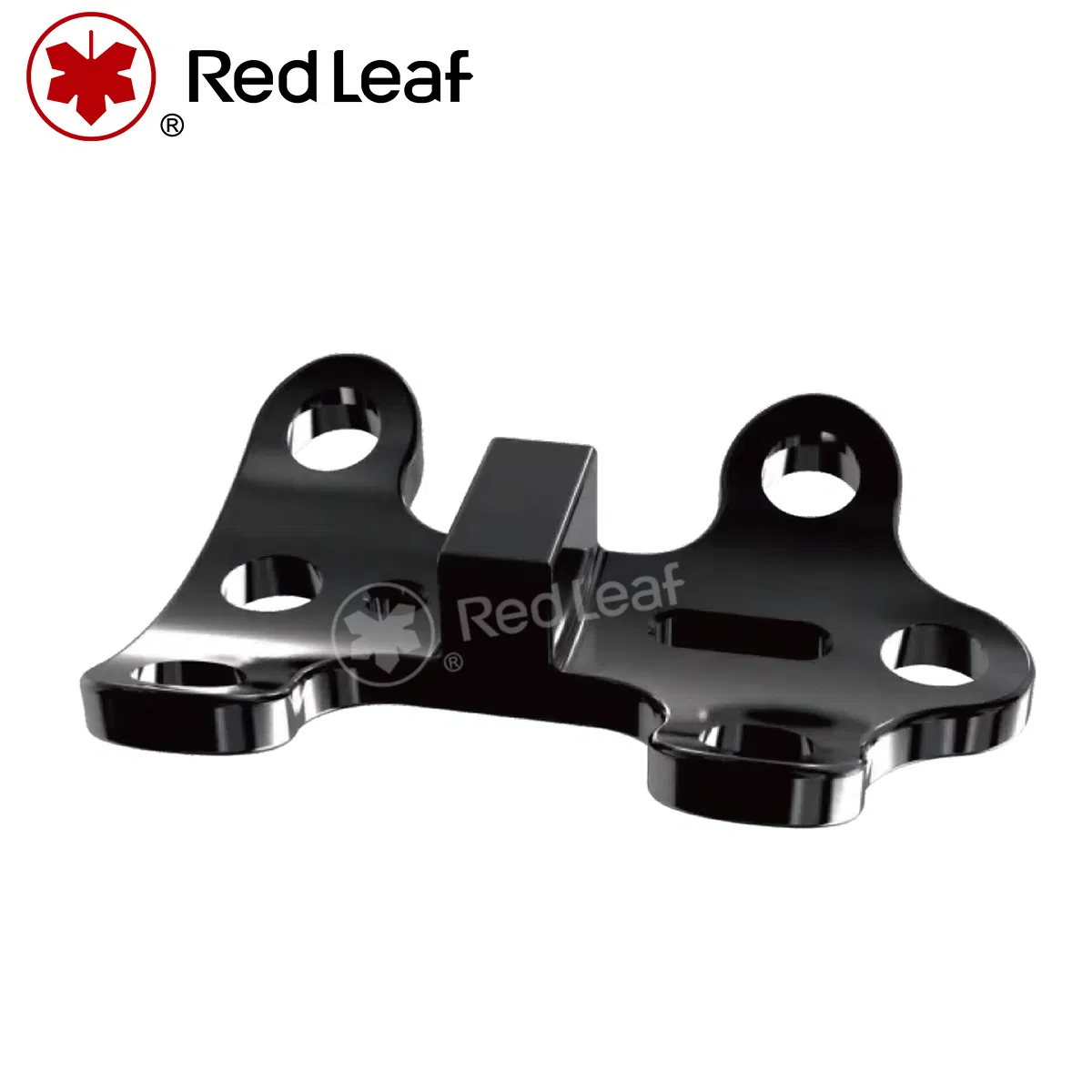

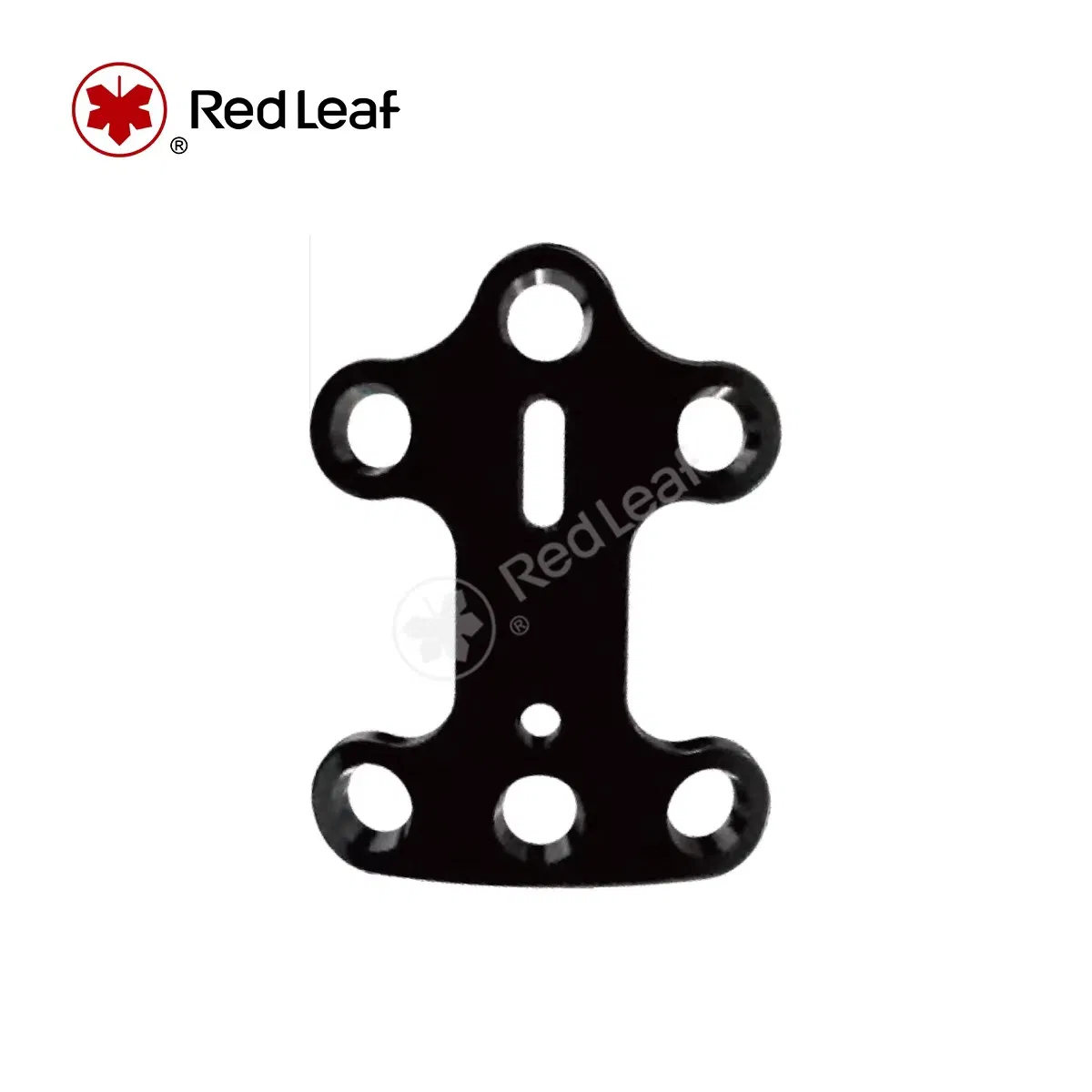

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

📋

Basic Overview

Model NO.

Evans

Usage

Correct Deformities, Fracture Fixation

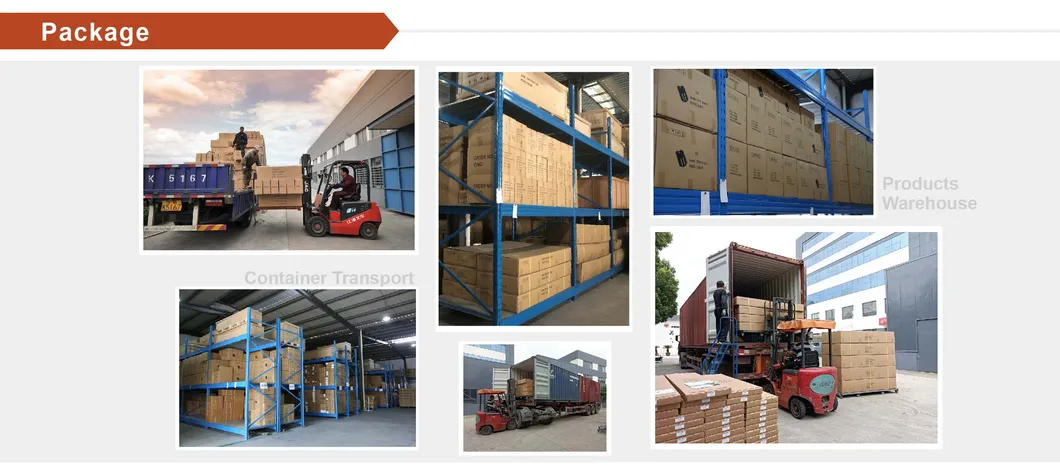

Package

Carton

Specification

30x23x2

🔬

Product Description

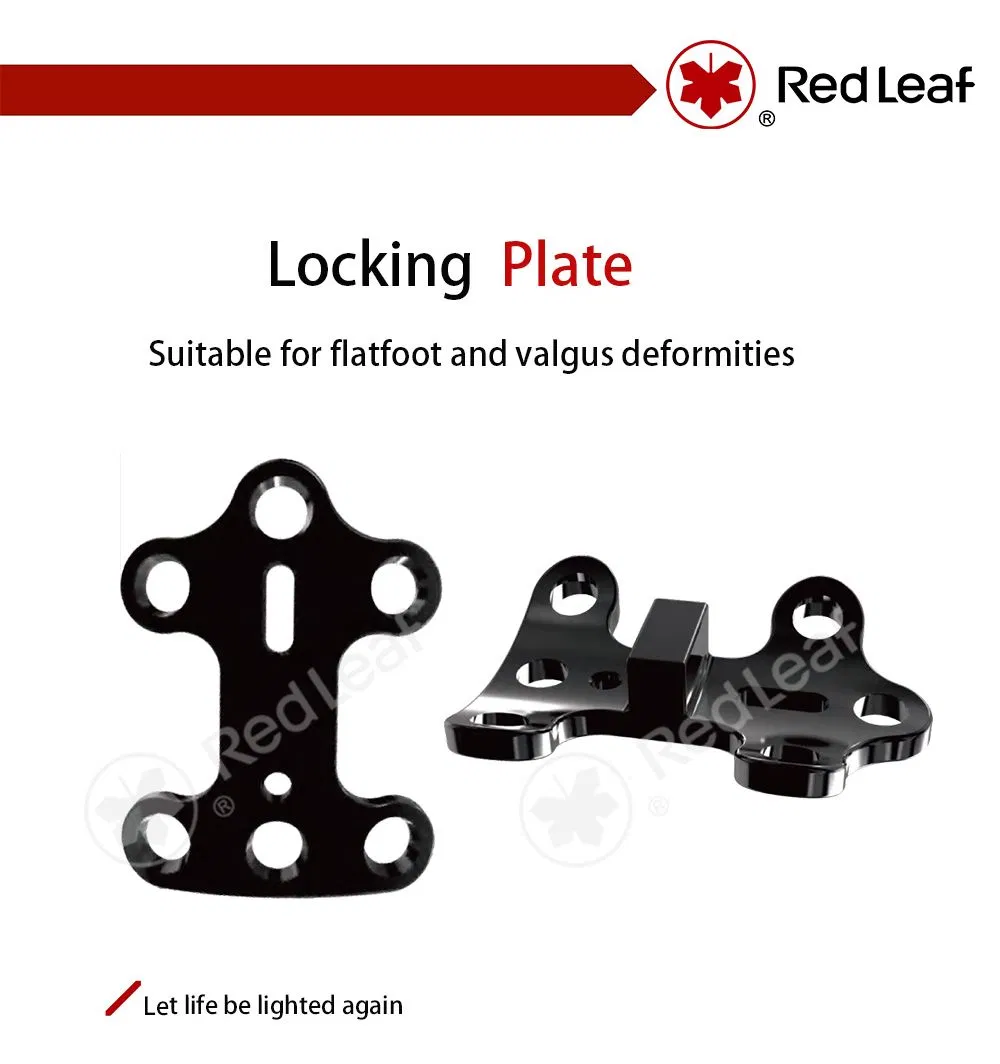

Design Concept:

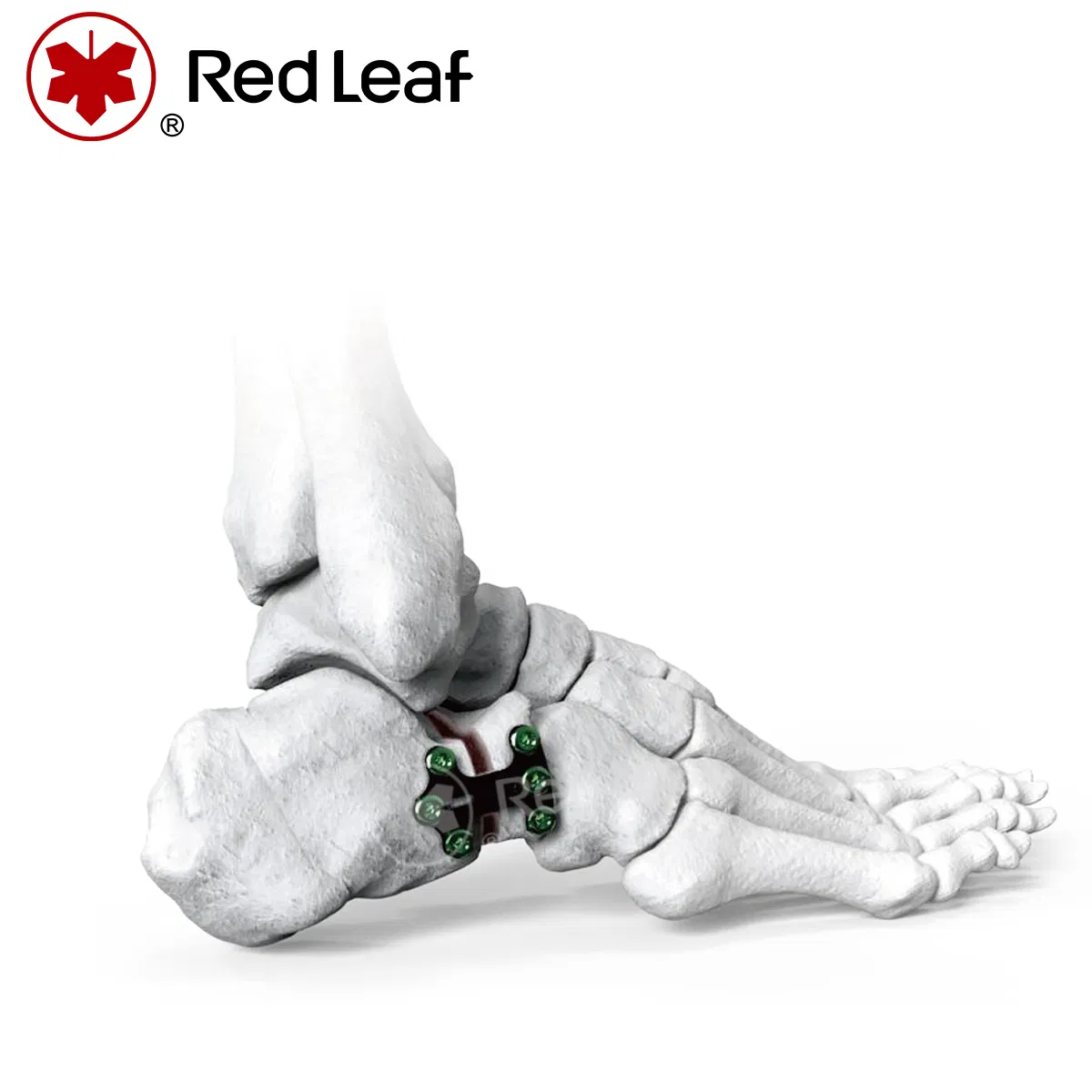

Suitable for flatfoot and valgus deformities.
Transverse osteotomy of calcaneal neck.
Optimized distance between osteotomy surface and calcaneocuboid joint (10-15mm).

Key Clinical Points:

Precision transverse osteotomy of the calcaneal neck.
Controlled cutting speed to protect inner soft tissue.
Parallel openings designed to promote bone ingrowth and prevent non-union.

Screw & Material Information:

Matching Screw: 3.5mm self-tapping locking screw.
Length Range: 6-40mm (2mm increments).
Kirschner Wire: 1.9mm.
Material: High-grade TC4 titanium alloy.

📊

Product Parameters

Specifications	Length (mm)	Width (mm)	Thickness (mm)	Step Width	Cushion Height
Big	36.0	23.0	2.0	6/8/10	6/8/10
Middle	30.0	23.0	2.0	4/6/8	4/6/8
Small	26.0	23.0	2.0	2/4/6	2/4/6

❓

Frequently Asked Questions

Are you a factory or trading company?

We are a professional manufacturer specializing in orthopedic implants, emergency rescue equipment, and rehabilitation therapy products.

What are the available payment and trading terms?

We typically accept T/T (30% deposit, 70% balance against B/L) or L/C. Standard lead time is 15-25 days after deposit receipt. Shipping is usually handled via Shanghai port.

What kind of after-sales service do you provide?

We offer a 12-month warranty from the date of receipt. During this period, we provide free spare parts and technical guidance for any necessary replacements.

Which quality certifications do your products hold?

Our products are fully certified with international standards including CE, FDA, ISO9001, ISO13485, and EN1865.

Can the osteotomy plates be customized?

We offer multiple specifications (Small, Middle, Big) with various step widths and cushion block heights to meet different surgical requirements.

What material is used for the Evans locking plate?

The plates are manufactured using high-quality TC4 titanium alloy, ensuring excellent biocompatibility and mechanical strength.
