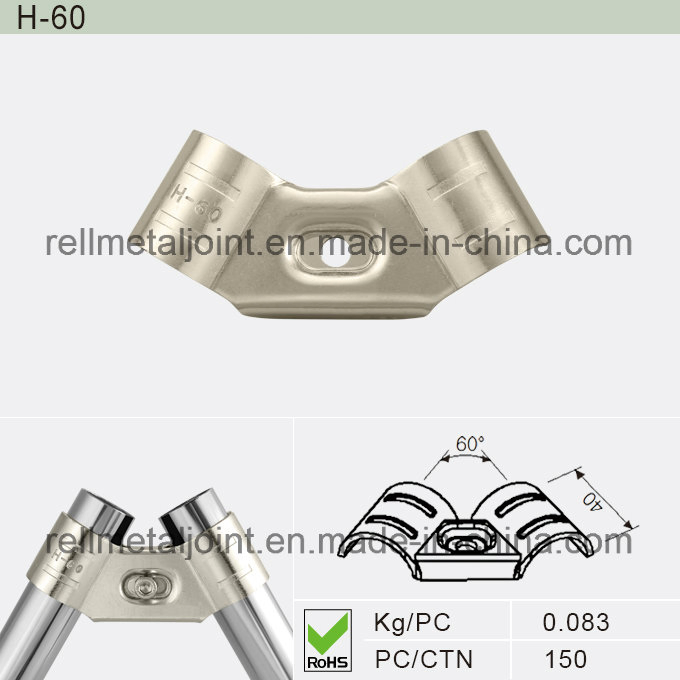

Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
1 / 5
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)

Nickel Plated Joint and Pipe Racking System (H-60)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.H-60SPCC25NP-N
Product NameMetal Joint
ProcessStamp
MaterialSPCC Steel
Surface TreatmentNickel Plated
Wall Thickness2.5mm
Diameter28.0mm
Connection MethodFastener
ApplicationWorktable/Trolley/Rack
Production Capacity100,000 PCS/Day
🛠️

Product Description

Nickel Plated joints are designed for high-efficiency pipe and joint racking systems. They are compatible with Φ28mm SUS pipes, aluminum alloy pipes, ABS/PE coated pipes, and galvanized pipes. These components are essential for lean production environments.
✓ Reusable ✓ High Flexibility ✓ Easy to Operate ✓ Strong Extensibility ✓ High Glossy Finish
Nickel Plated Joint and Pipe Racking System
📋

Technical Specifications

Description Metal joints Material SPCC (Q/TB201-2011)
Model H-60SPCC25NP-N Tension Test ≥80Kg (Q/RELL002-2012)
Surface Nickel Plated Salt-Spray Test ≥24h (Q/RELL001-2012)
Net Weight 0.083 Kg Packing 150 PCS / CTN
Package Size 280*225*160 mm RoHS Compliant (OK)
❓

Frequently Asked Questions

What is the primary material of the H-60 metal joint?
The joint is made of high-quality SPCC steel with a thickness of 2.5mm and features a Nickel Plated surface treatment for durability and aesthetic appeal.
Which pipe sizes are compatible with these joints?
These metal joints are specifically designed for use with pipes having an outer diameter of 28.0mm, including SUS, aluminum, and coated pipes.
Can these joints be reused if the structure is dismantled?
Yes, one of the key advantages is their reusability. They can be easily assembled and disassembled, making them ideal for flexible lean production lines.
What is the load-bearing capacity of the connection?
According to the tension test (Q/RELL002-2012), the metal joint can withstand a tension of ≥80Kg, ensuring stable and secure racking structures.
Are these products environmentally friendly?
Yes, the products are RoHS and SGS compliant, meeting international standards for environmental safety and material quality.
What are the typical applications for this racking system?
Common applications include industrial worktables, trolleys, storage racks, and production line setups across various manufacturing sectors.
