Basic Information
Product Description

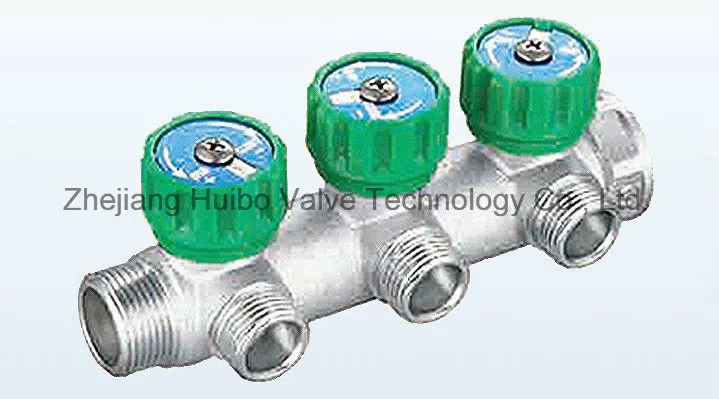

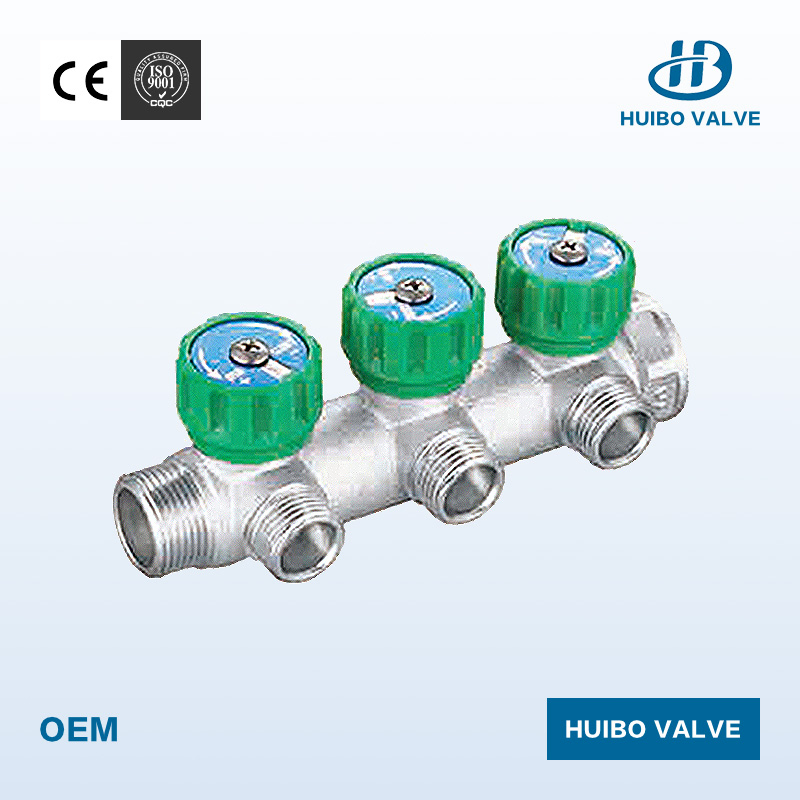

Nickel Plated Brass Manifold for Floor Heating System
Technical Reference
Dimensions
| WAYS | SIZE | G | A | B | C | D | F | L |
|---|---|---|---|---|---|---|---|---|
| 2 | 3/4"x½ | 3/4" | 105 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 3 | 3/4"x½ | 3/4" | 150 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 4 | 3/4"x½ | 3/4" | 195 | 40.5 | 45 | 29.5 | 34.5 | 14 |
| 5 | 3/4"x½ | 3/4" | 240 | 40.5 | 45 | 29.5 | 34.5 | 14 |
Specifications
| Product Name | Brass Manifold Valve |
|---|---|
| Model | HB-M101002 |
| Size | 3/4" |
| Material | Brass body with surface nickel plated |
| Working Pressure | 16 bar |
| Handle Color | Green |
| Certificate | SGS, ISO9001, ISO14001, CE |
| Valve Guarantee | 10 Years |
| Function | Industrial, Kitchen, Home, Commercial, Garden and General |

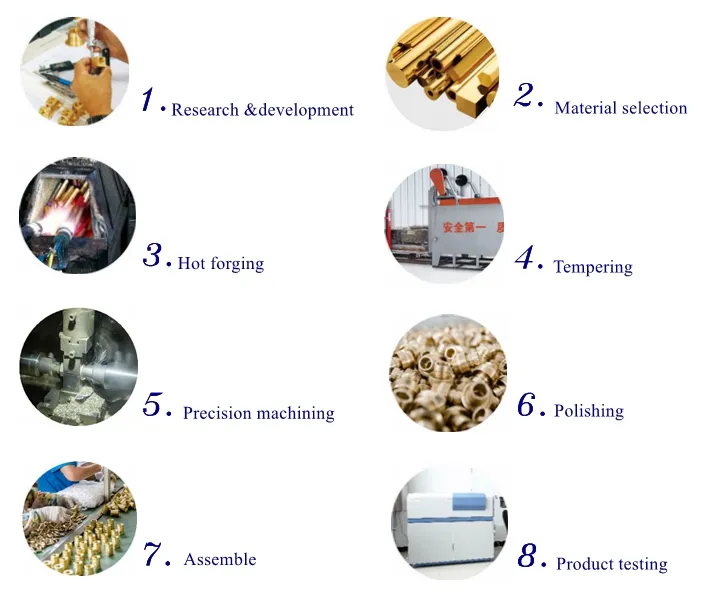

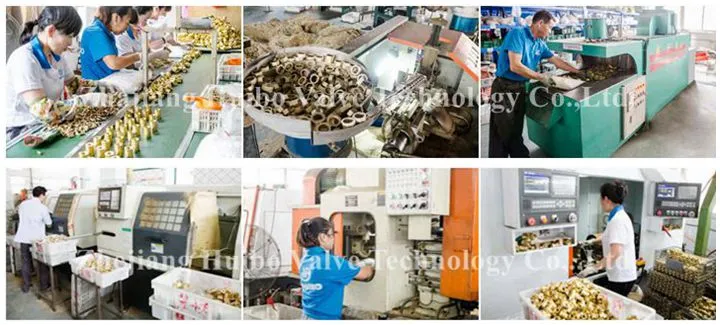

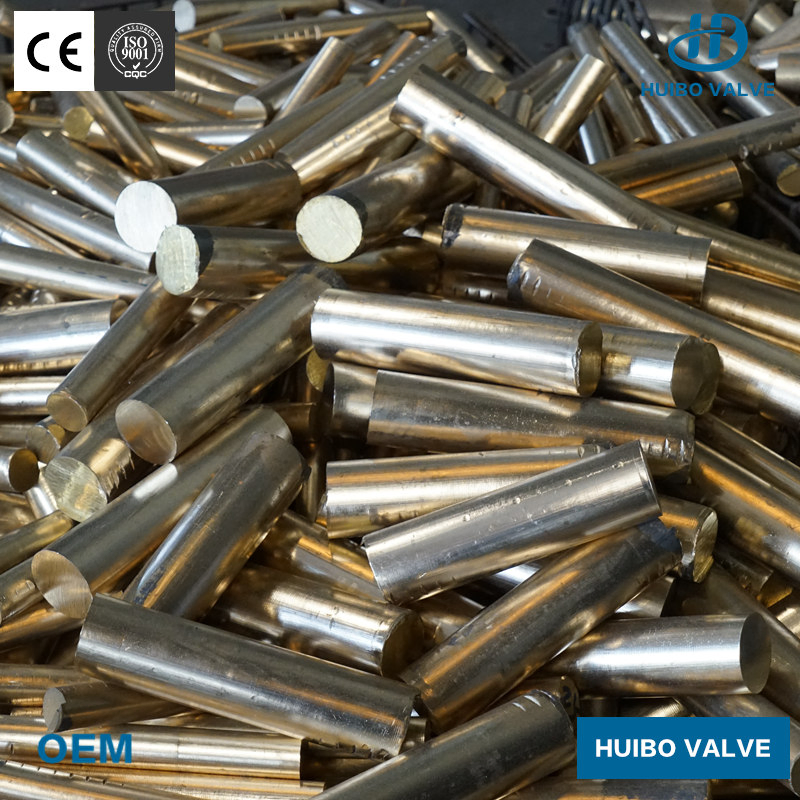

Technological Process & Production

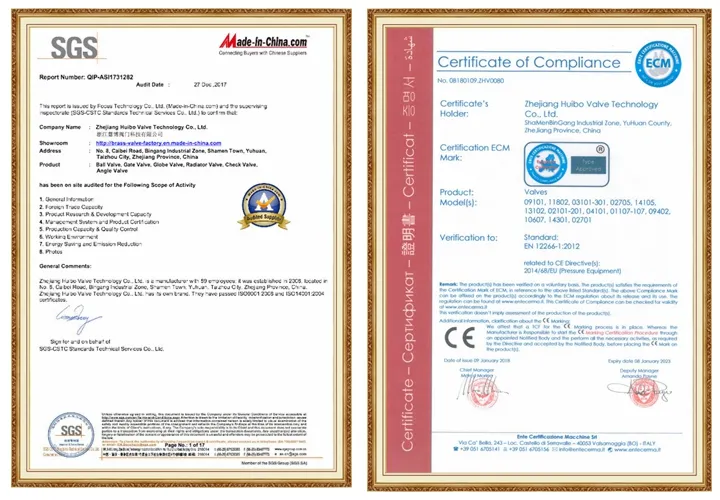

Quality Certification
Frequently Asked Questions
