Joint Soft Tissue Ligament Repair Arthroscopy Orthopedic Instrument Set Suture Anchor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TY-SA

Material

Steel

Feature

Reusable

Certification

CE, ISO13485

Group

Adult

Classification

Class II

Warranty

1 Year

Package

Sterile Package

Rated Voltage

100V-240V

HS Code

9021100000

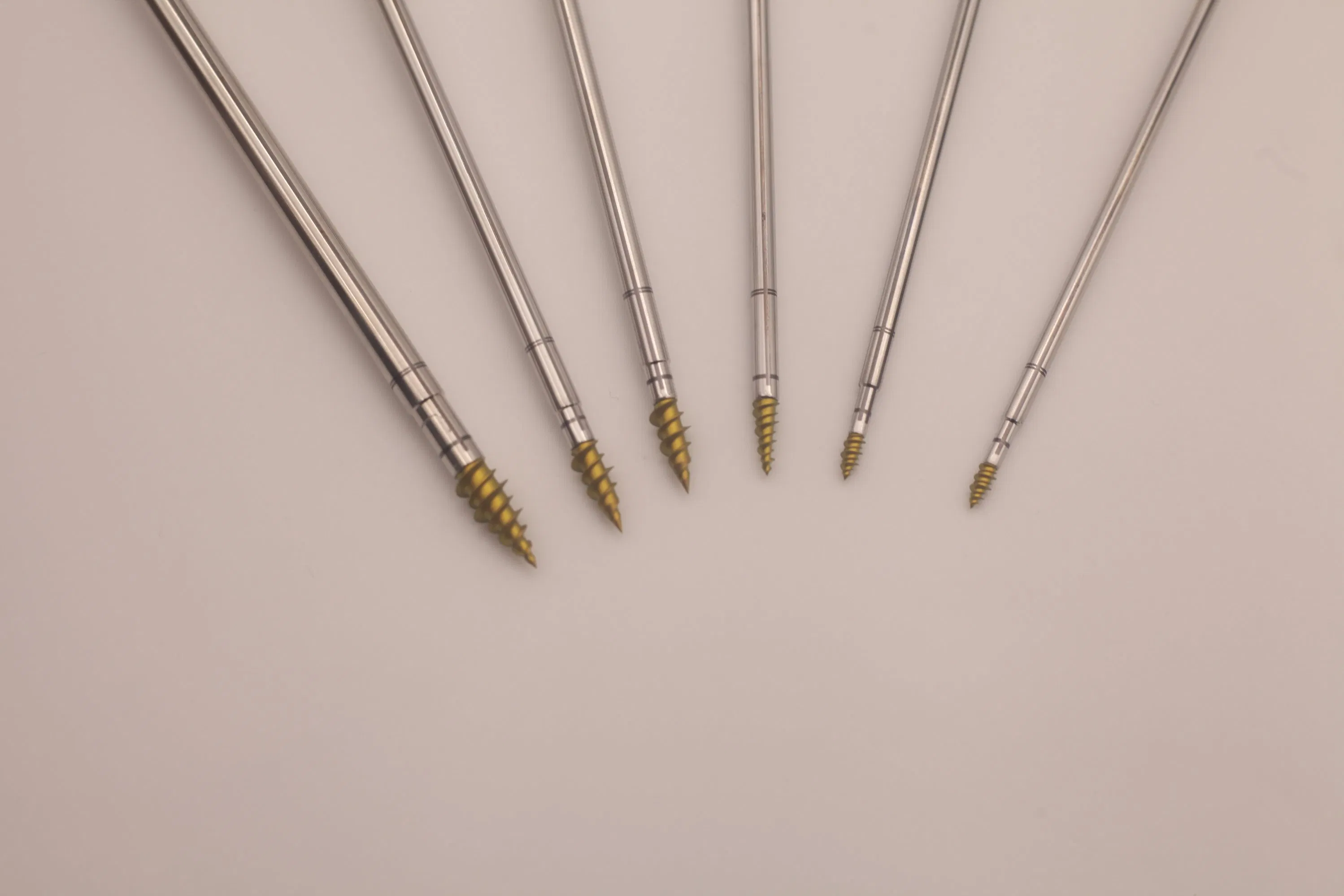

Suture Anchor for Joint Tendon Repair

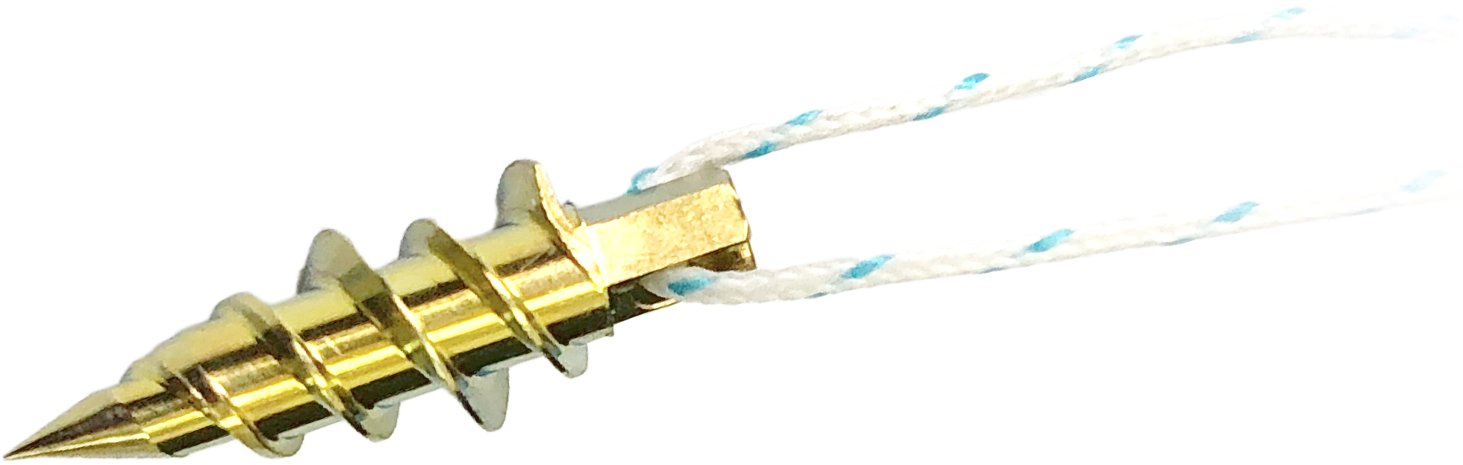

A suture anchor is a precision-engineered surgical implant designed to fix sutures into the bone, facilitating the reconnection of soft tissue and bone. This fully threaded anchor features integrated suture holes through its center, providing surgeons with enhanced flexibility during the suturing process. Its design allows for reduced bone removal during guide hole creation without compromising pullout strength.

Product Specifications

Model	Anchor Details (mm)			Suture Details
Model	External Diameter	Anchor Length	Total Length	Specification
T20-φ2.0x7.5	φ2.0	7.5	184.3	2 0# sutures
T12-φ2.8x11.5	φ2.8	11.5	251.4	1 2# suture
T22-φ3.5x12	φ3.5	12	255.2	2 2# sutures
T22-φ5.0x15.5	φ5.0	15.5	257.5	2 2# sutures
T22-φ6.5x16.3	φ6.5	16.3	260.7	2 2# sutures

Core Advantages

✦

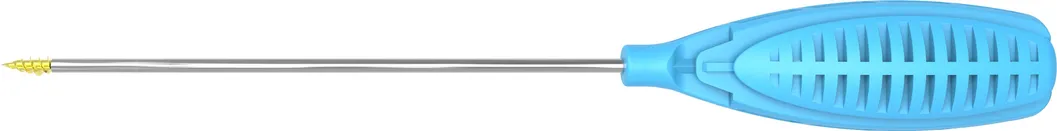

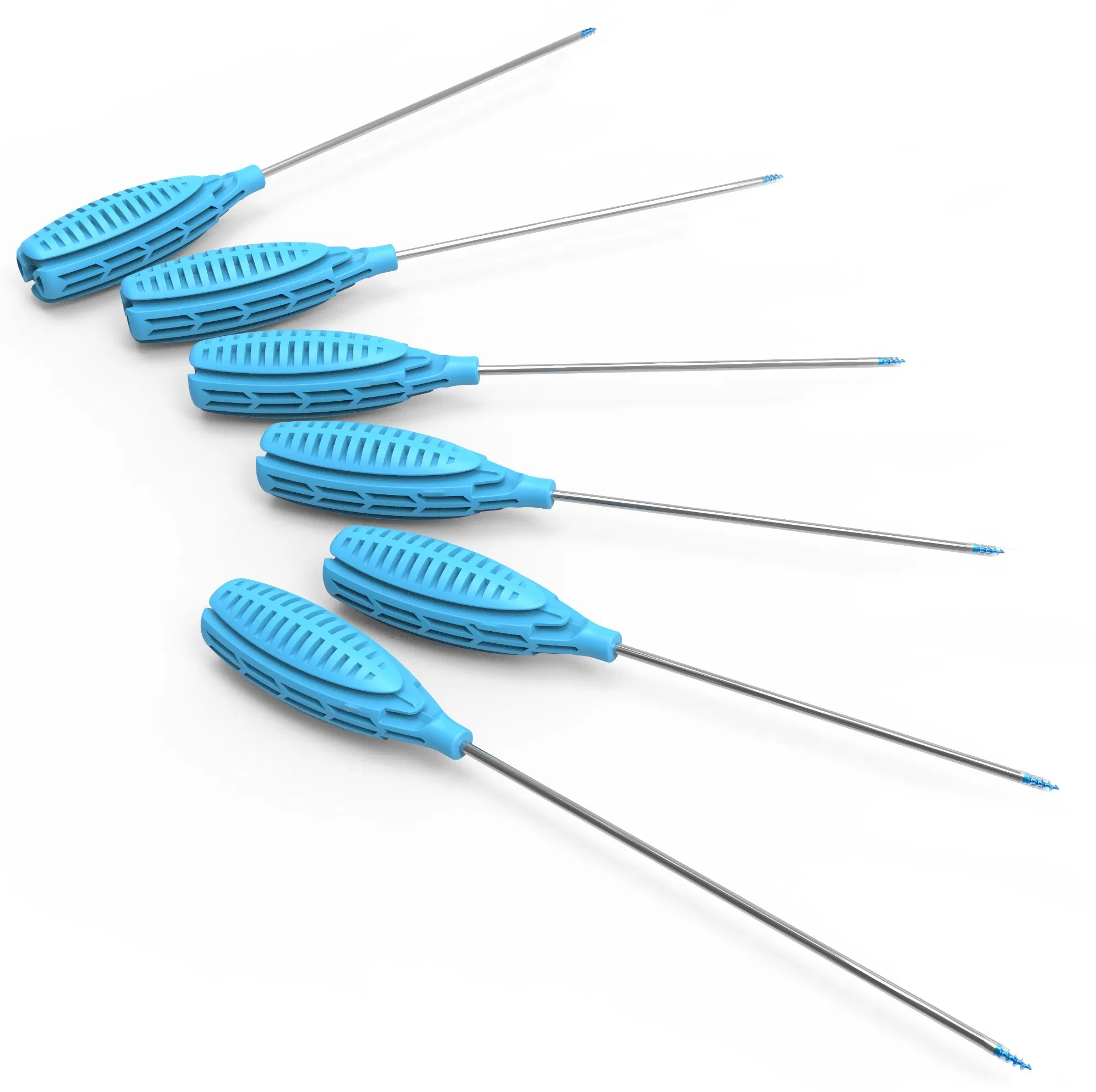

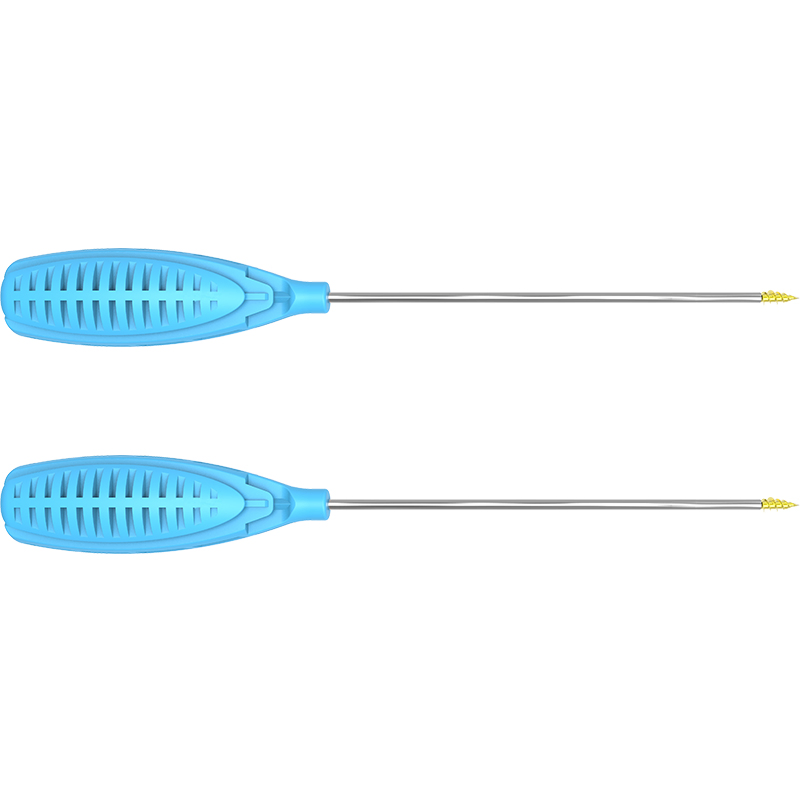

Hexagon Drive: Allows for easy operation and flexible multi-angle implantation.
✦
Head Design: Features a sharp anchor head for easier implantation without pre-drilling.
✦
Titanium Alloy: Provides excellent biocompatibility for medical safety.
✦
Double Thread: High and low thread design for superior torsional strength and pull-out resistance.
✦
Reduced Friction: Specialized suture hole edge design to protect materials during surgery.

Medical Tips & Usage

Scope of Use: These surgical implants are specifically utilized for attaching soft tissues (such as ruptured tendons and ligaments) to bone. Each anchor set typically includes the anchor body, the suture, and the "eyelet" interface.

Composition: The sutures are constructed from ultra-high molecular weight polyethylene and polyester composite braid. This combination ensures superior mechanical properties and a better tactile feel for more convenient surgical handling.

Frequently Asked Questions

What are Suture Anchors primarily used for?

They are surgical implants used to attach soft tissues, like ruptured tendons and ligaments, securely to the bone.

What material is the suture made of?

The suture is composed of an ultra-high molecular weight polyethylene and polyester composite braid, offering high strength and flexibility.

Does the anchor require pre-drilling before implantation?

No, the sharp head design allows for easier implantation without the mandatory requirement for pre-drilling.

What are the benefits of the hexagon drive system?

The hexagon drive enables easier operation, allowing for multi-angle implantation and the ability to adjust the placement during surgery.

How does the thread design impact performance?

The high and low double thread design provides stronger torsional strength, enhanced pull-out resistance, and quicker screw-in times.

What type of quality guarantees are provided?

Products are guaranteed for exchange in case of quality issues within one month, and free repair services are available for one year under standard operating conditions.
