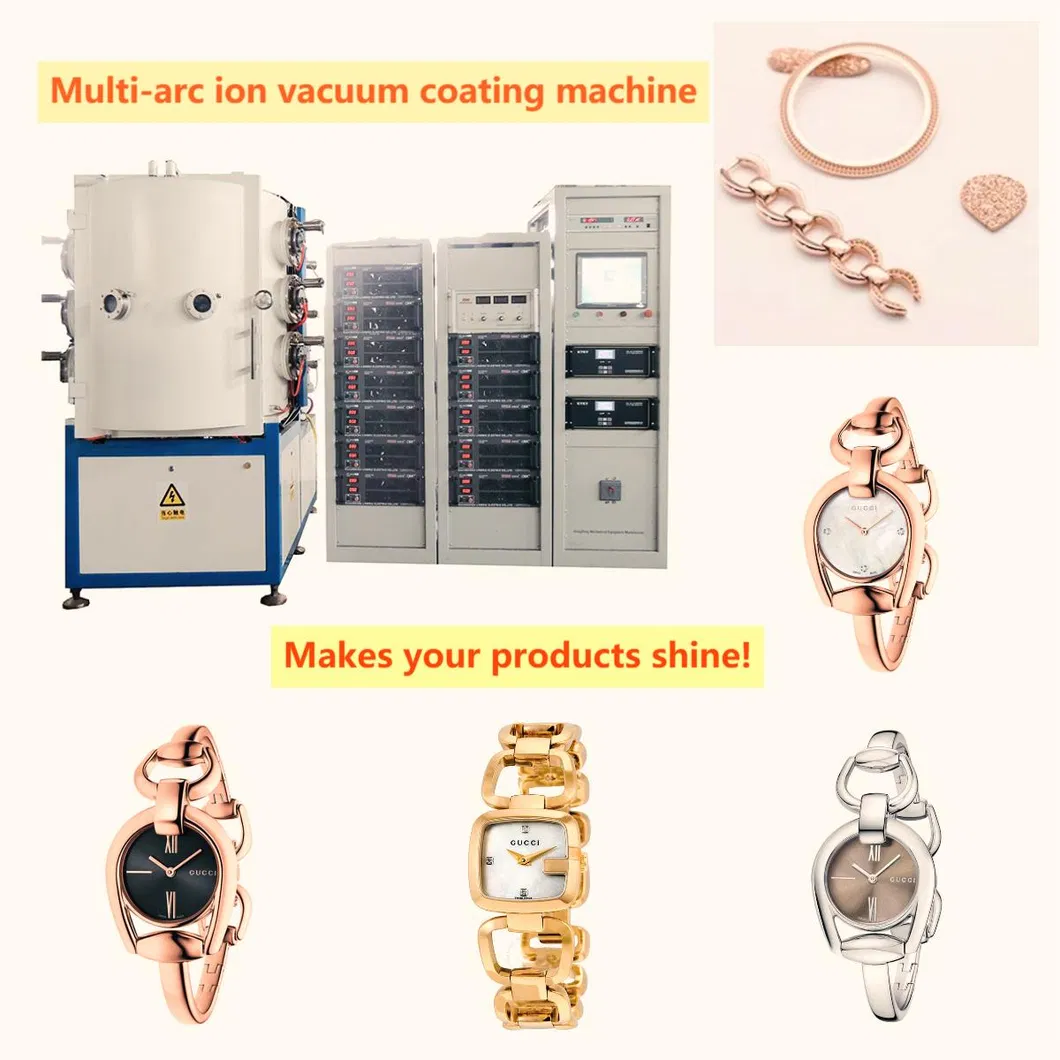

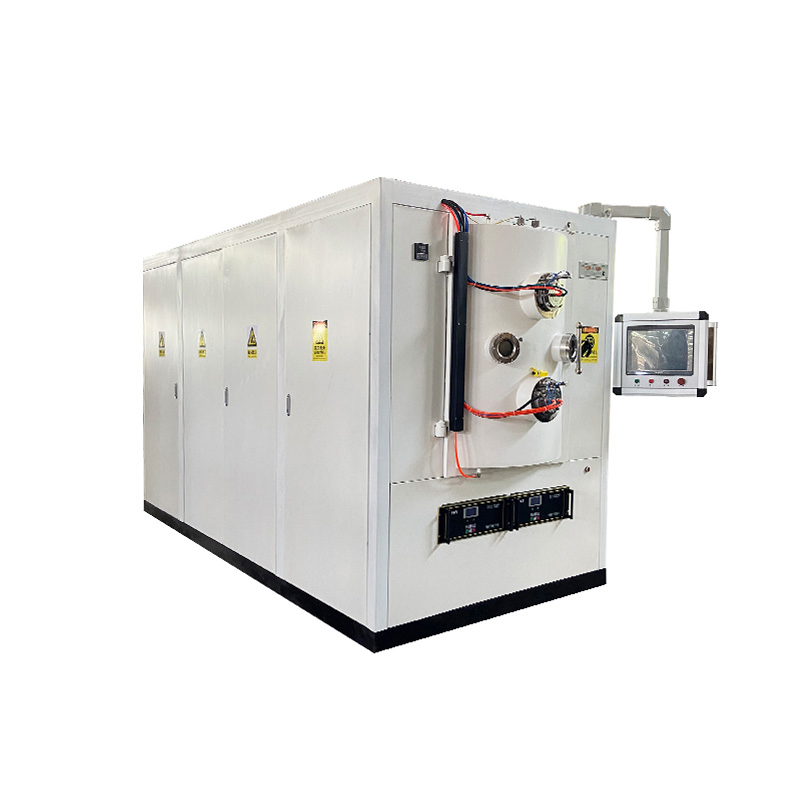

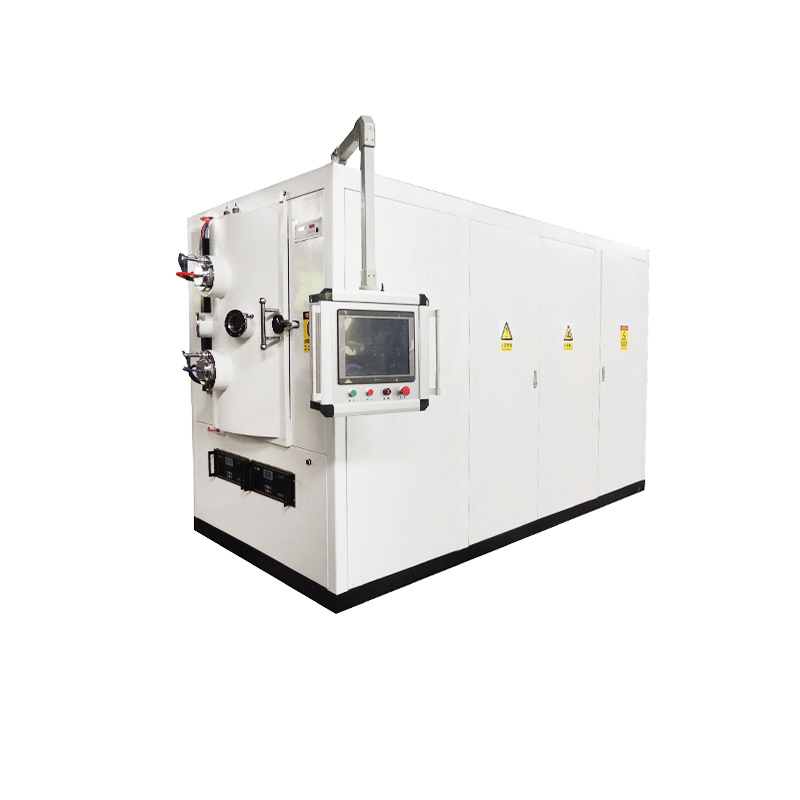

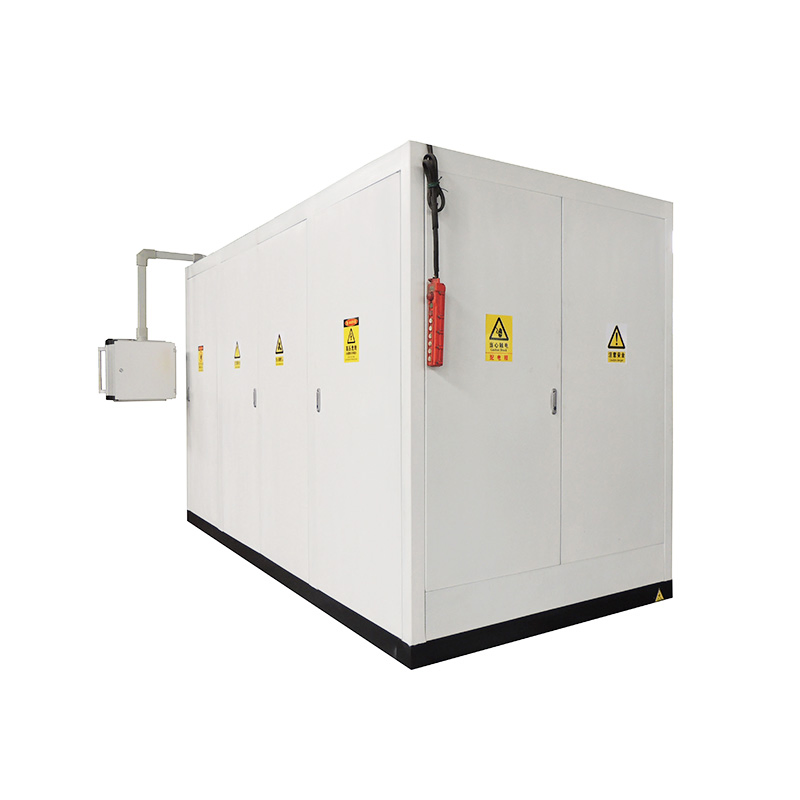

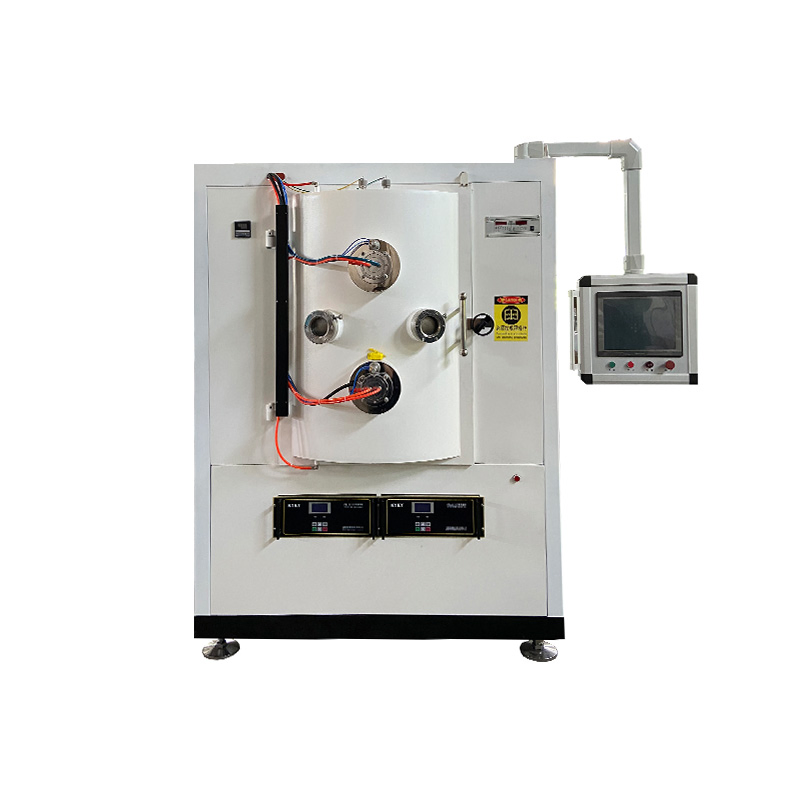

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

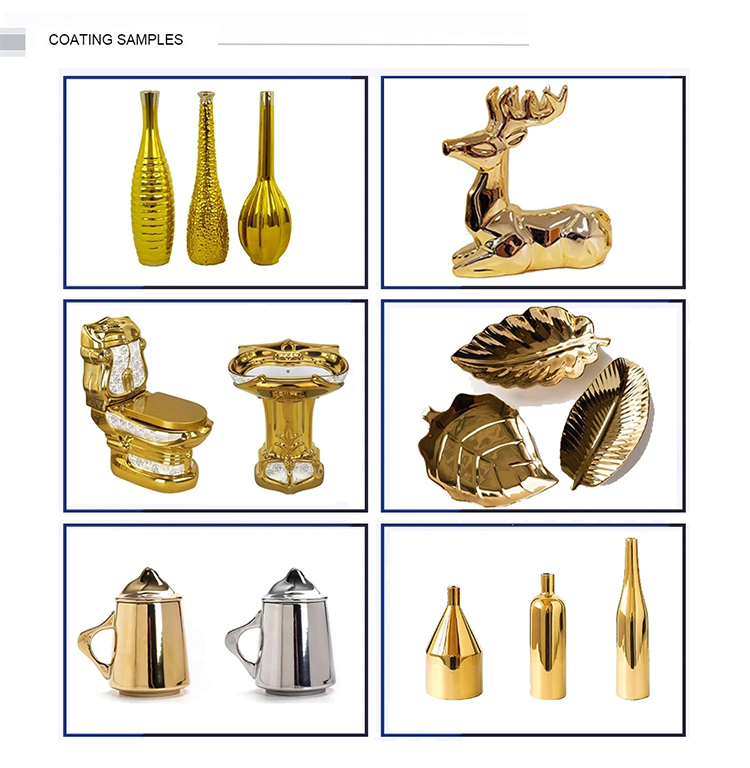

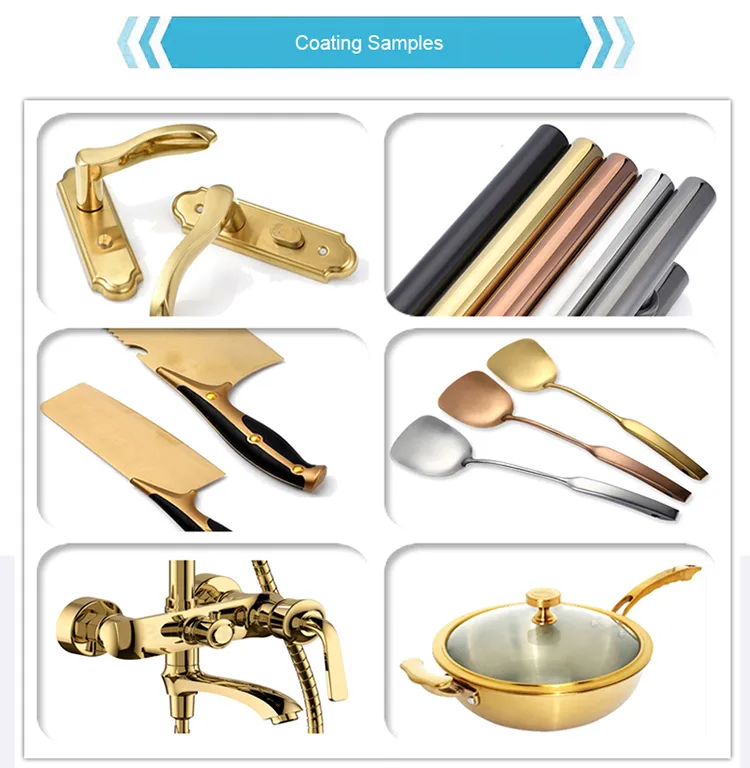

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. After coating by this machine, workpieces' hardness, wear resistance, and resistance are significantly improved. Application industries include the watch industry (strap, case, dial), glass ceramics industry (glass tableware, ceramic crafts), hardware industry (sanitary ware, door knobs, locks), architecture industry (stainless steel plate, stair railings, columns), precision mold industry (standard punch mold, forming mold), tools industry (drill bits, carbide cutters, broaches, shaving heads), automotive industry (piston, piston rings, alloy wheels) as well as pens and glasses. The resulting film makes the product's surface more beautiful and durable.
ARC series, based on arc deposition technology, are the most suitable coating systems for producing PVD hard coatings on metal tools, molds, and dies.
| Model | ARC series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Size | Customized based on needs |
| Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | 2 to 16 sets |
| Vacuum System | Roughing Pump, Diffusion/Turbo Molecular + Mechanical pumps |
| Ultimate Pressure | 5.0×10-4 Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10-3 Pa) |
| Substrate Heater | Up to 550°C (Max.) |
| Layout Dimensions | Approx. 5000mm(W)×6500mm(D)×3500mm(H) |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |
| Cooling Water Flow | 140 L/min or greater |
| Compressed Air | 0.5MPa or higher |
| Gross Weight | Approx. 8500kg |
In order to help you choose the best suitable PVD coating machine, please consider the following:
1. What is your product, and its maximum dimensions?
2. What is the material of your product and your desired daily production capacity?
