GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier

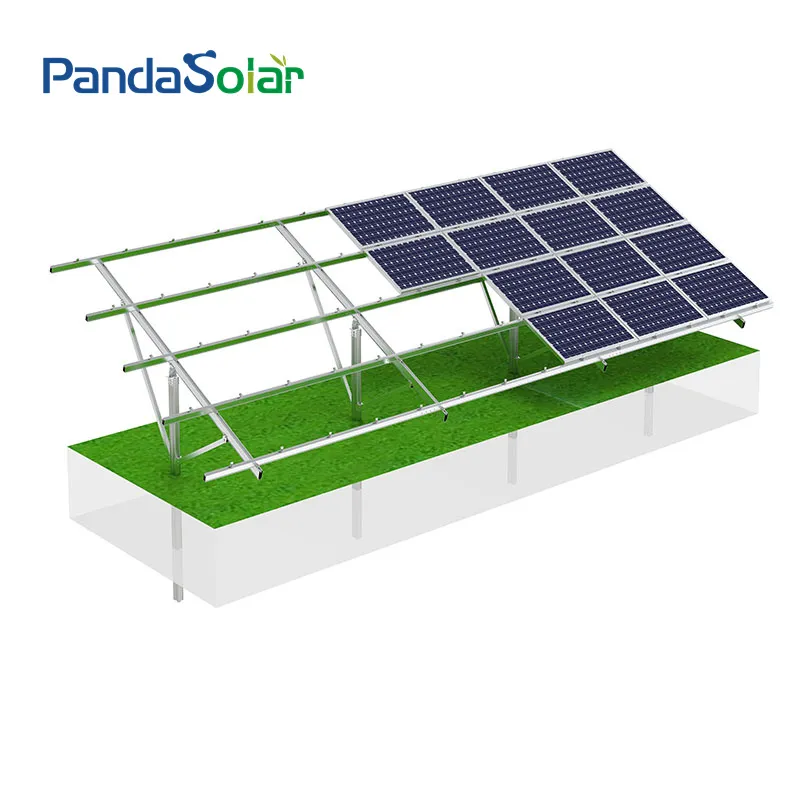

Our magnesium aluminum zinc ground mounting system is engineered precisely based on maximum wind speeds, snow loads, and specific solar panel requirements. This design ensures structural integrity while optimizing installation efficiency and reducing labor costs. Built for longevity, the system supports various foundation types including direct soil entry, ground screws, and cement piers.

The double column design can utilize ground bolts or piling columns. Ground screw posts offer precise height adjustments, while piling columns provide higher strength for demanding terrains. All components are treated with high-performance plating for superior corrosion resistance.

Installation Diagram & Steps:

Step 1: Installing Ground Screws
The system is anchored to the ground using specialized screws drilled into the soil. Depth is determined by soil type to ensure weight capacity.

Step 2: Install the Beams
Connect diagonal support poles to the vertical posts using high-strength bolts and nuts to create a stable framework.

Step 3: Installing Rails
Attach the horizontal rails that support the solar panels. Brackets and bolts ensure the rails remain perfectly level.

Step 4: Installing Solar Panels
Fasten the solar panels to the rail system using specialized mounting hardware, ensuring each panel is securely locked.

Our facilities include specialized workshops for both aluminum and steel materials. We handle cutting, drilling, stamping, and forging independently to ensure high precision and meet customization requirements.

Aluminum Workshop: Independent processing of high-precision components.
Steel Workshop: Equipped with 6 production lines and molding machines for S350GD/S450GD materials, with a monthly productivity of 40-50MW.
