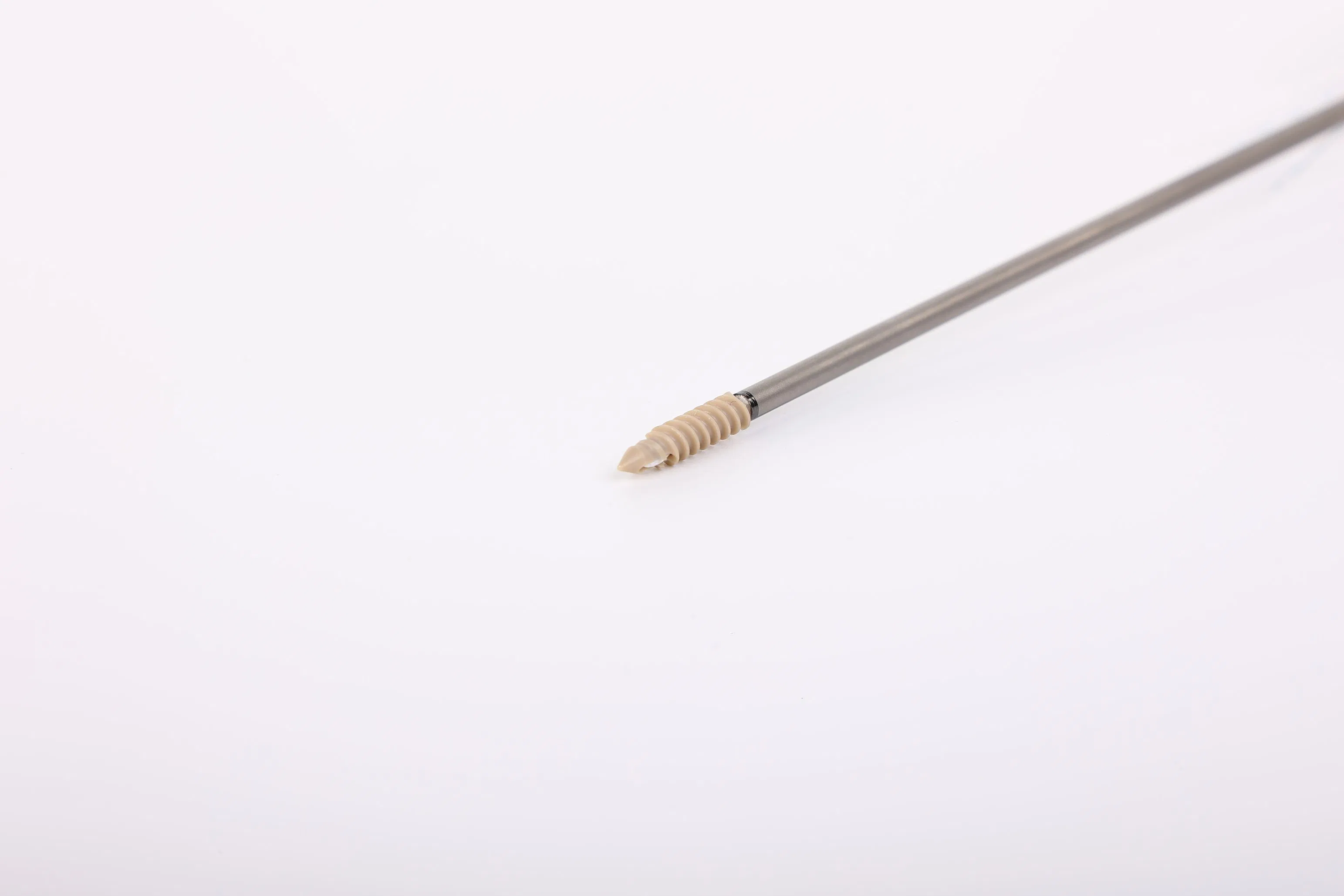

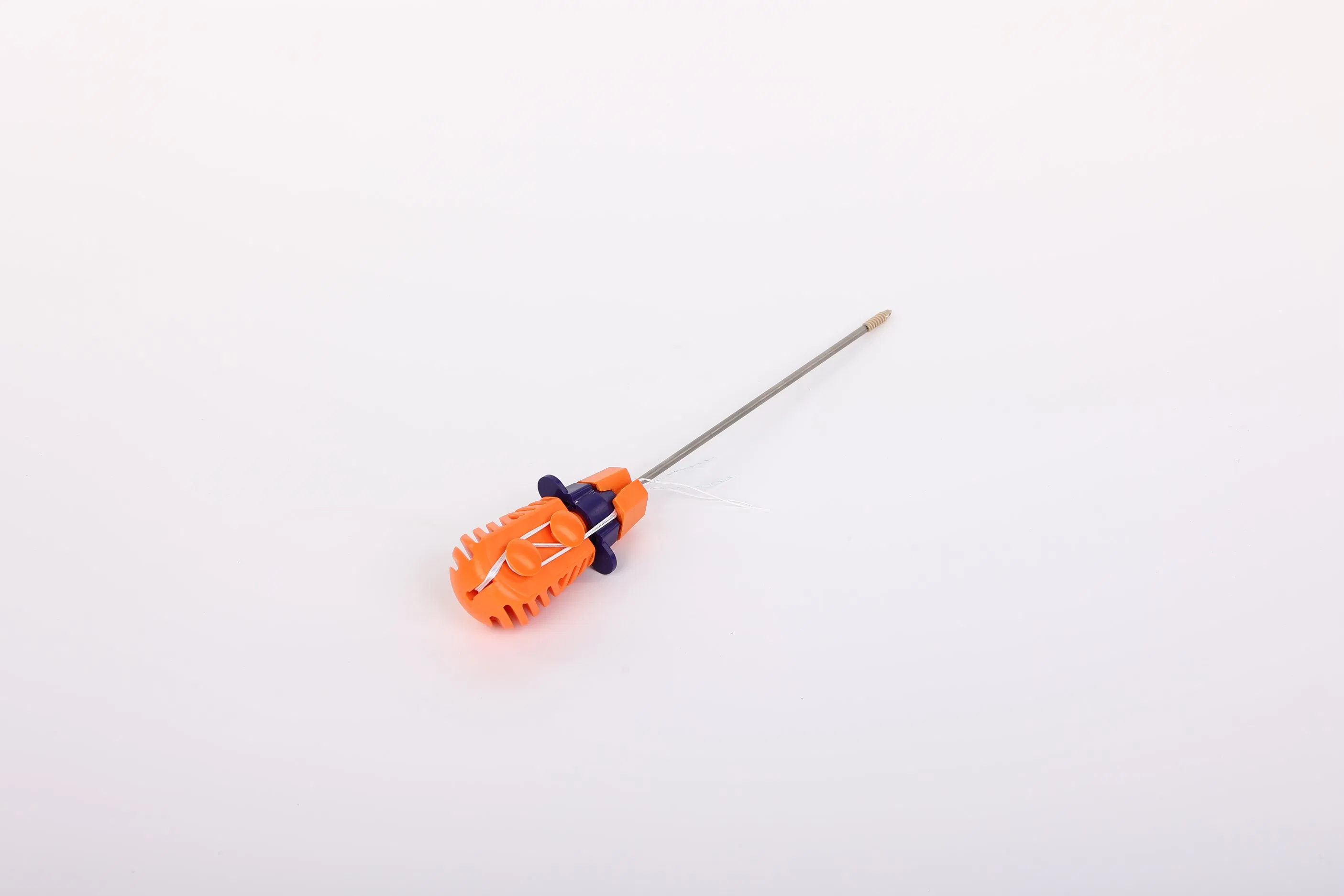

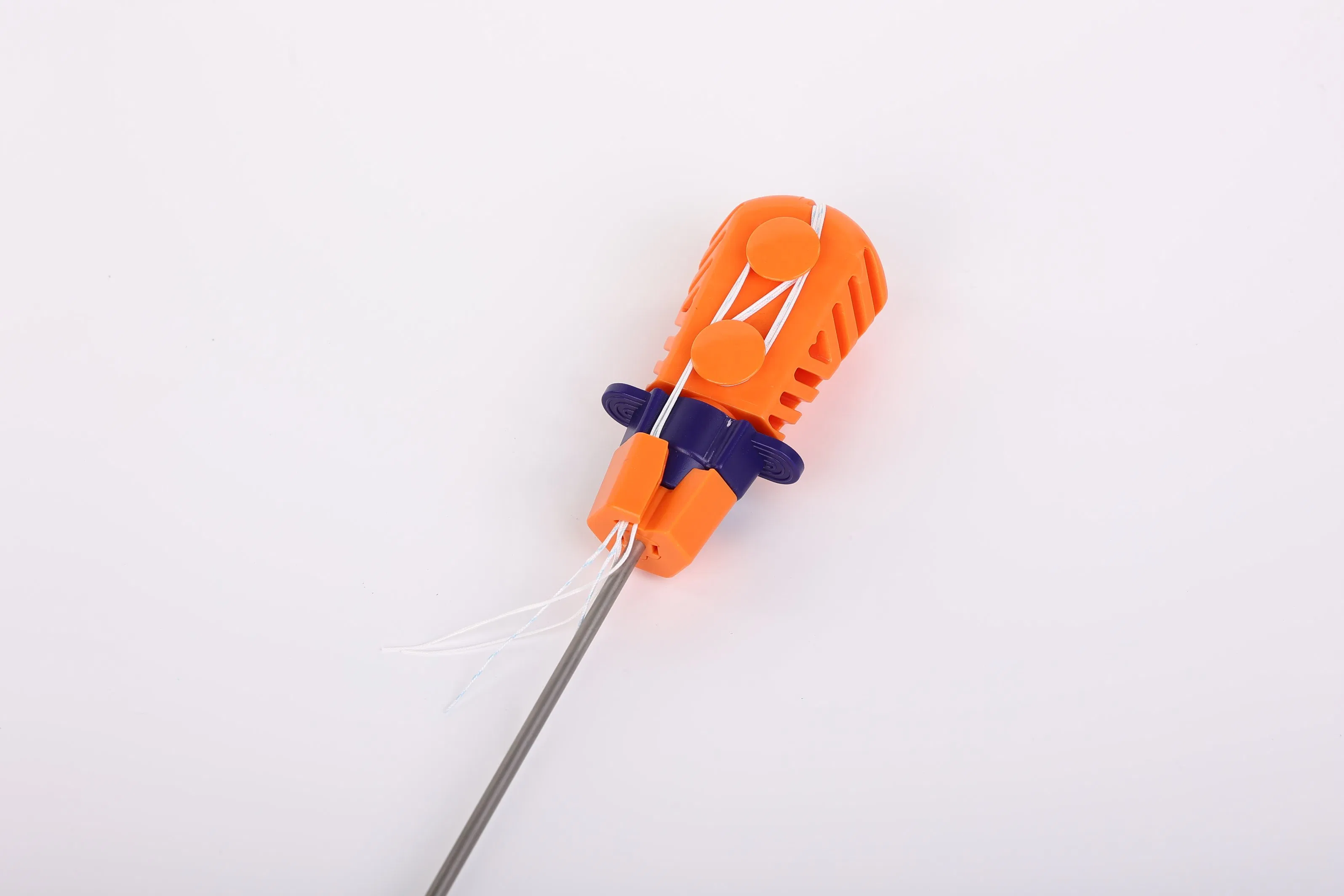

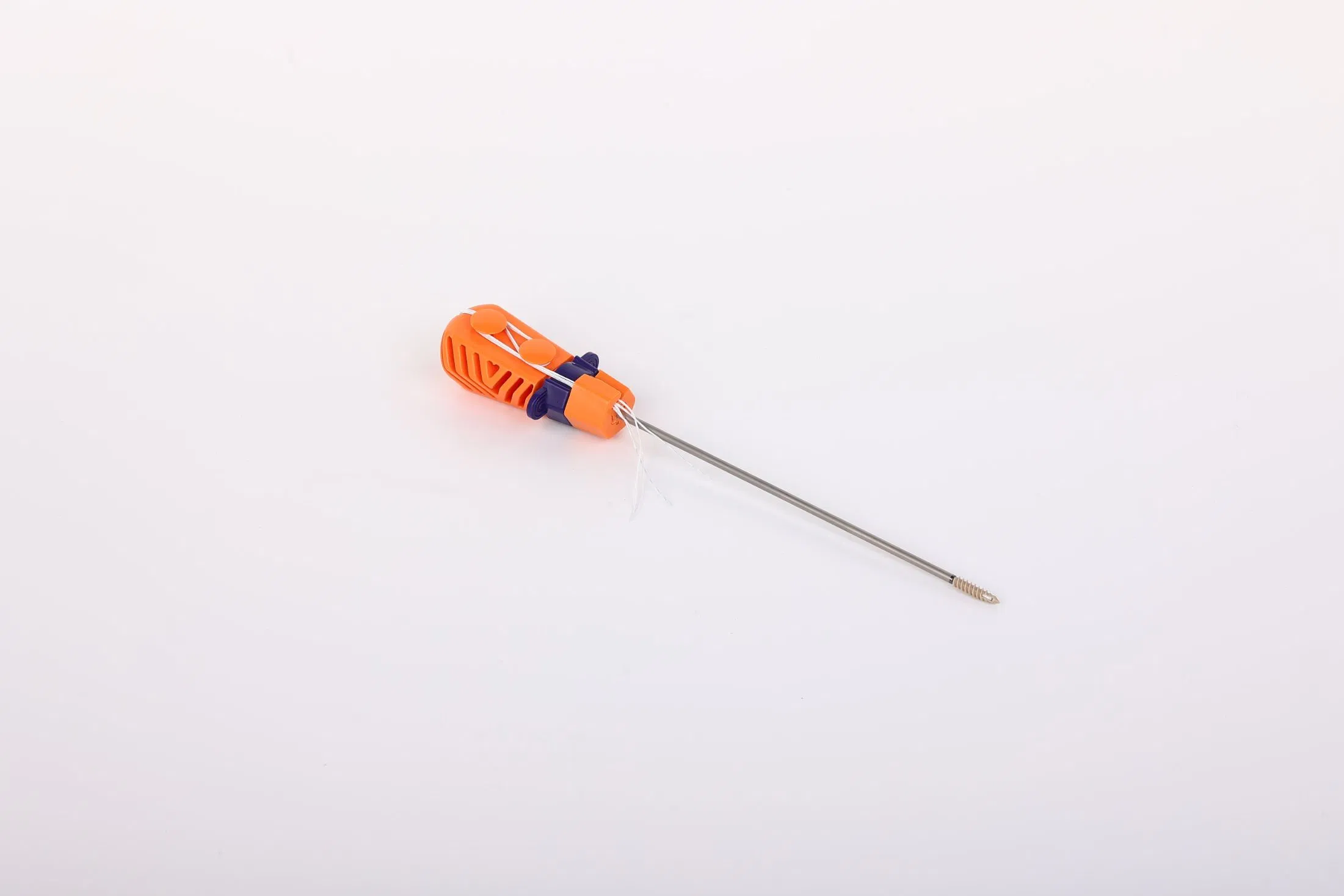

Factory Direct Price Secure & Stable Suture Anchor System for Joint Repair Surgery

Still deciding? Get samples of $ !
Request Sample

Product Description

Suture Anchor System Banner
📋

Basic Information

Model NO.
WZ-MDT-D-05
Certification
CE, ISO13485
Color
Silver and Orange
Usage
Orthopedic Surgery
Material
Peek, Titanium Screw
Sterile
Eo Sterile
Warranty
3 Years
Weight
0.3kg
HS Code
9021100090
Capacity
50000 Sets/Year
🔍

Product Description

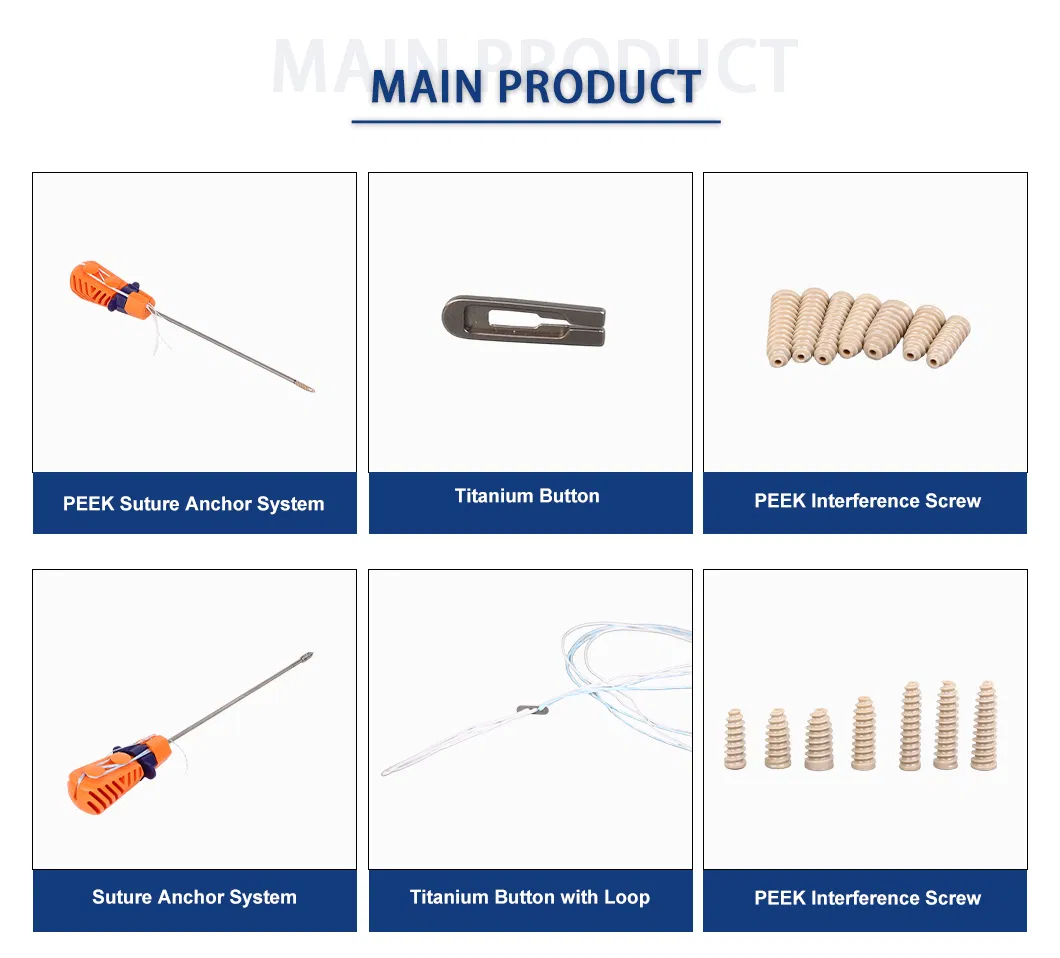

Suture Anchor System Details

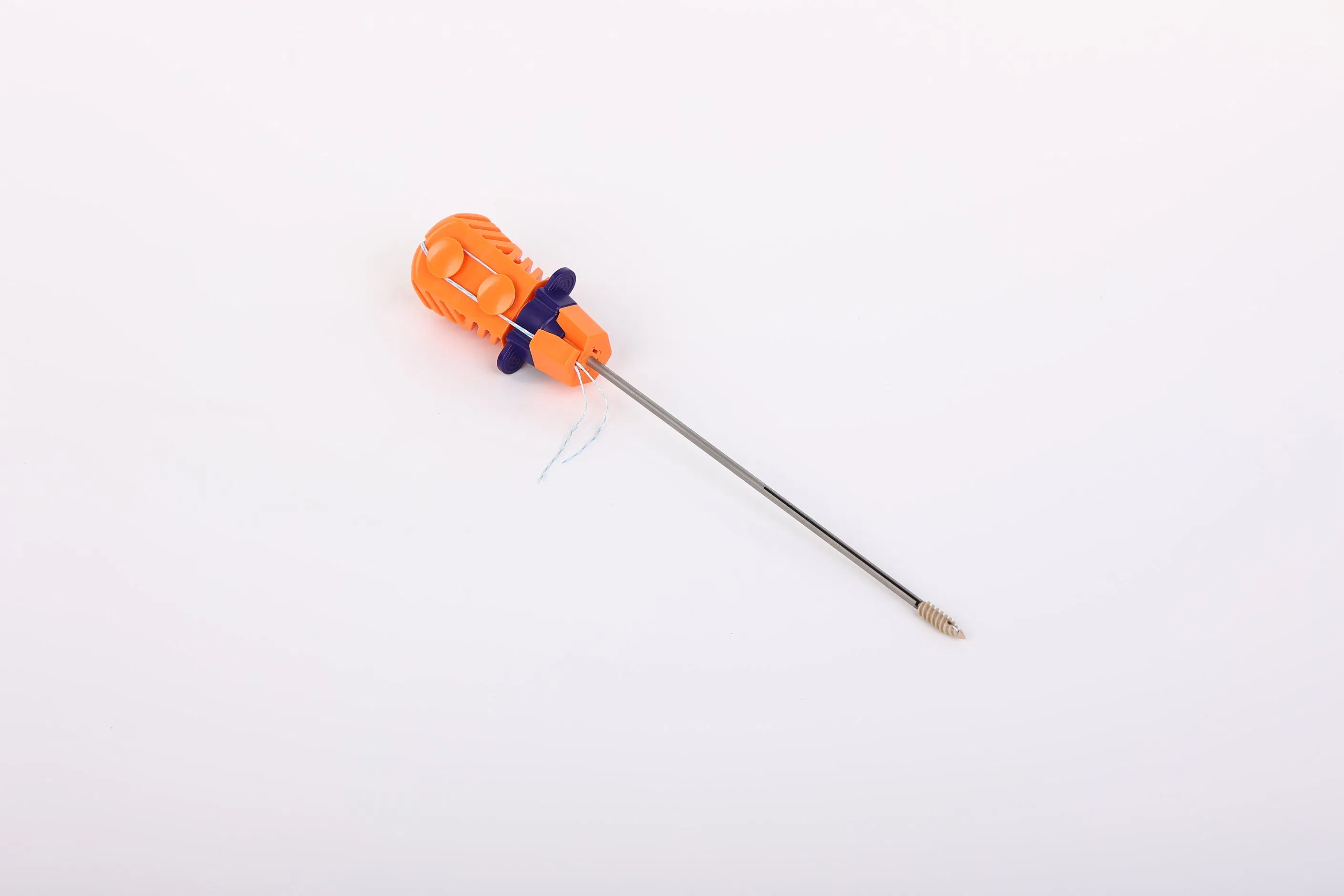

The Suture Anchor System consists of an anchor, nonabsorbable suture, and inserter. The anchor is constructed from Ti6Al4V alloy, meeting ISO 5832-3:2016 requirements for medical implants. The system is designed specifically to connect soft tissue and bone securely during surgical procedures.

The accompanying suture is manufactured from ultra-high molecular weight polyethylene (UHMWPE) material without coating. It is woven from several UHMWPE yarns, complying with ASTM F2848-17 standards. The blue suture variant is created using FDA-approved blue coloring material (Code 73.1015). For the inserter, the part contacting the human body is made of medical-grade stainless steel (ASTM F899-12b), while the handle is ergonomically designed using polycarbonate and ABS materials.

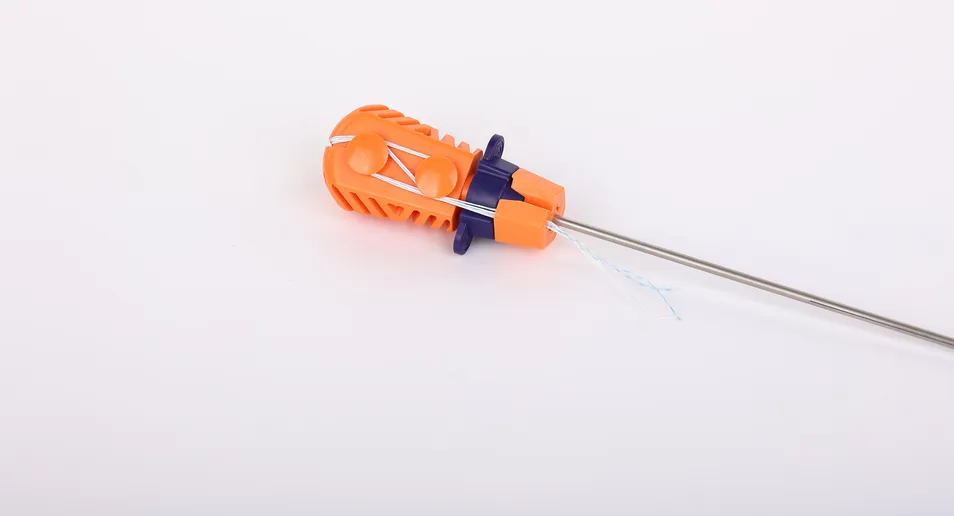

Product Components
⚙️

Technical Specifications

Available Sizes: 1.8mm, 2.8mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.5mm.

Packaging: Secure Blister Box + Outer Box for sterile transport.

Technical Drawing
🖼️

Product Display

Orthopedic Surgical Consumables 1
Orthopedic Surgical Consumables 2
Orthopedic Surgical Consumables 3

Frequently Asked Questions

What materials are used in the Suture Anchor System?
The system utilizes Ti6Al4V alloy for the anchors and Ultra High Molecular Weight Polyethylene (UHMWPE) for the sutures, ensuring high strength and biocompatibility.
Is the product provided sterile?
Yes, the products are EO (Ethylene Oxide) sterile and packaged in professional blister boxes to maintain sterility until use.
What certifications do these orthopedic instruments hold?
All products are fully compliant with CE certification and ISO 13485 international standards for medical devices.
Are different sizes available for various surgeries?
Yes, we offer a wide range of sizes including 1.8mm, 2.8mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, and 6.5mm to suit different clinical needs.
Do you offer OEM services?
Yes, professional OEM services are available, including custom designs and packaging solutions to meet specific requirements.
Can samples be provided for evaluation?
Yes, samples can be provided for quality testing and evaluation prior to placing bulk orders.
