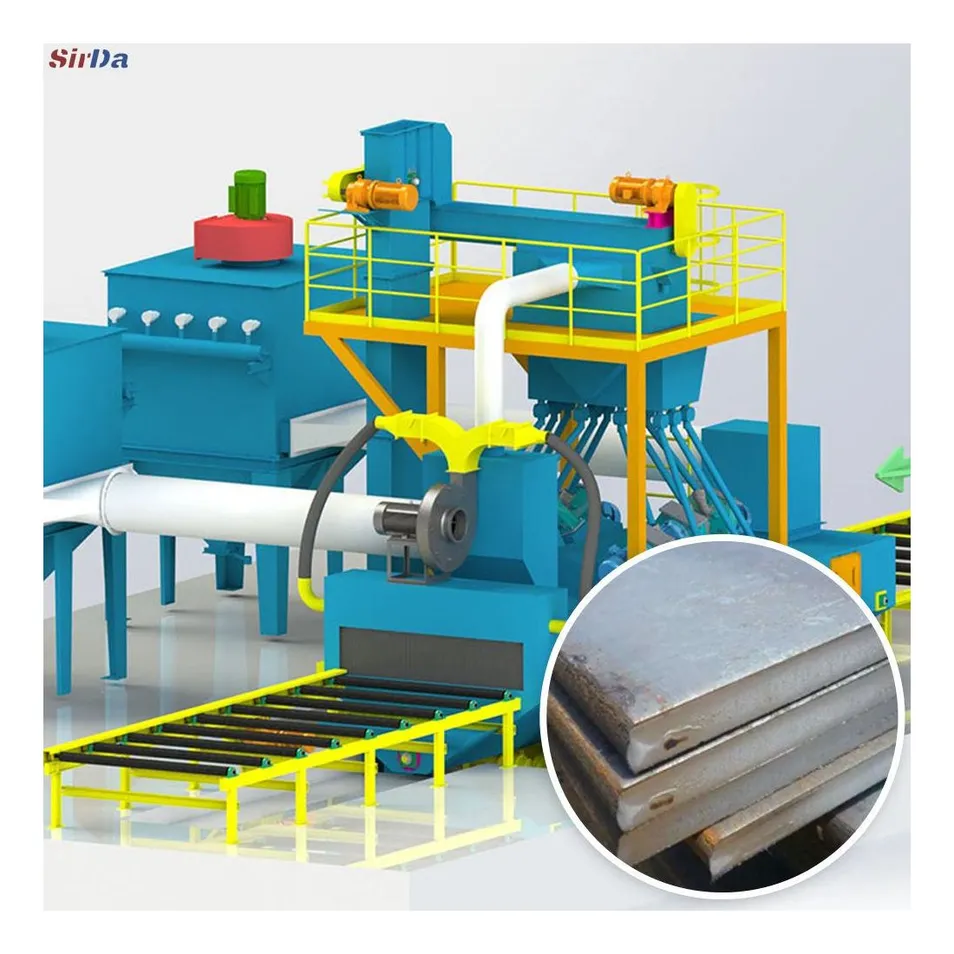

Q69 Series Roller Conveyor Type Shot Blasting Machine

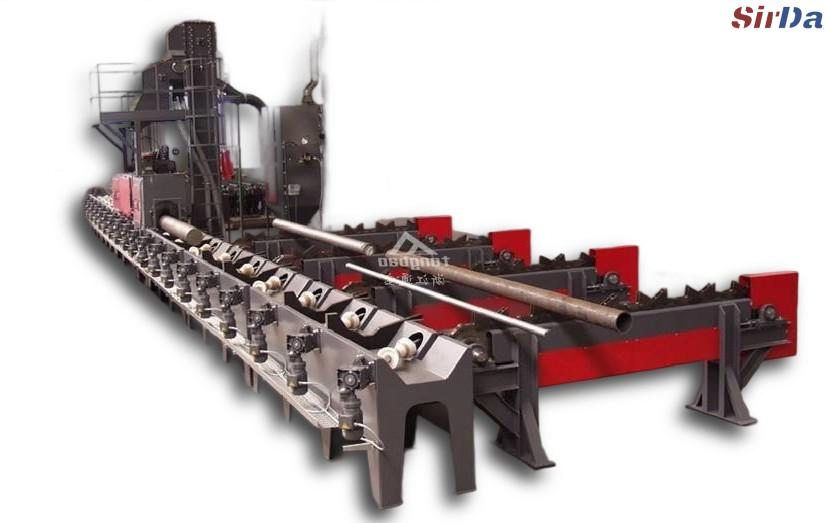

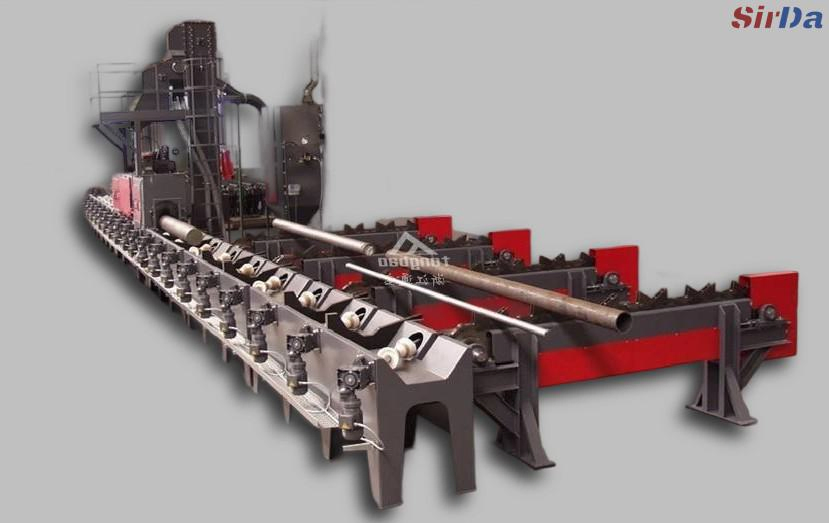

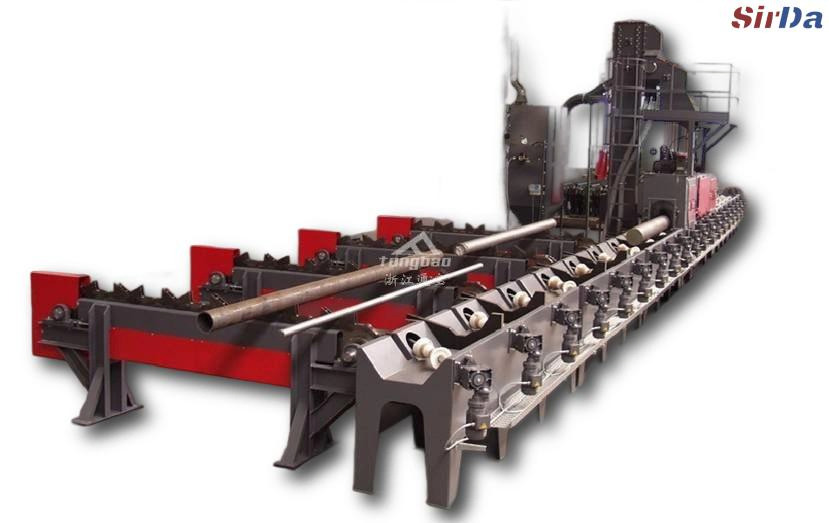

Q69 series roller conveyor type shot blasting machine is used to clean external surface of steel pipe, round bar, drilling rod etc. It can clean rust, oxide layers, paint film and intensify.

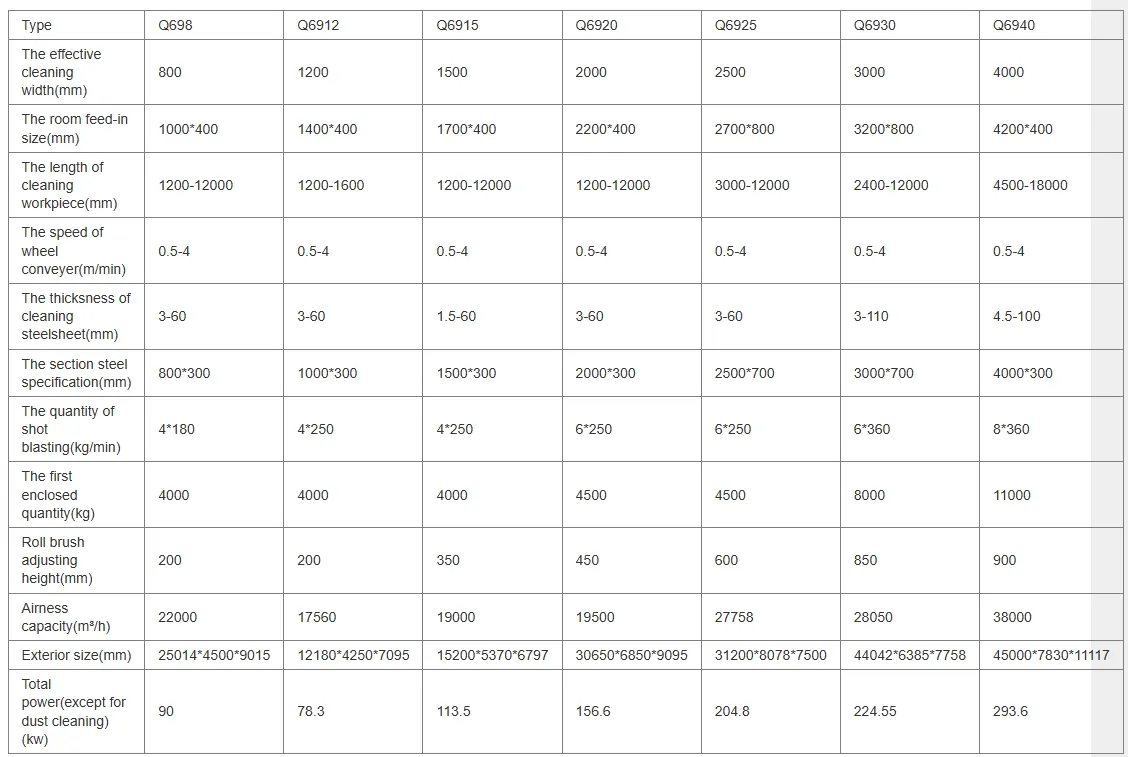

Basic Specifications
Model NO.
Q69 Shot Blast Machine
Application
Steel Plate Pre-Treatment
Cleanliness
High Cleanliness (SA 2.5)
Automation
Automatic PLC Control
Electric Parts
Siemens, Omron, Chint...
Core Applications

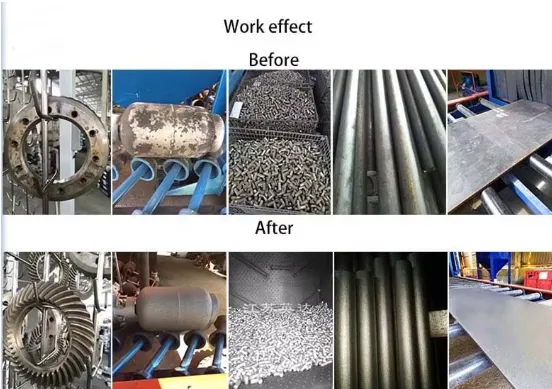

- Removing scale and rust from metal profiles and sheet metal components.
- Surface treatment of H-beams, steel plates, profiles, angle steel, pipes, etc.
- Sandblasting cleaning of complex welded structures (top/bottom plates, welded ribs).
- Key industries: Steel, shipbuilding, automotive, bridges, and heavy machinery.
Technical Features

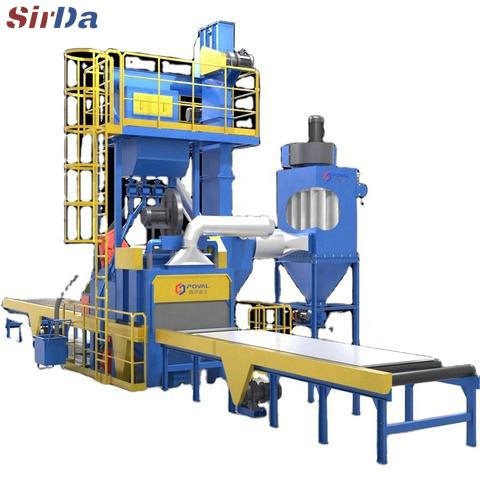

Roller Conveyor System:
Includes feed, intermediate, and discharge rollers with a load capacity of 2 tons/meter. Rollers within the cabinet are protected by special alloy sleeves, ensuring a service life exceeding 4,000 hours.

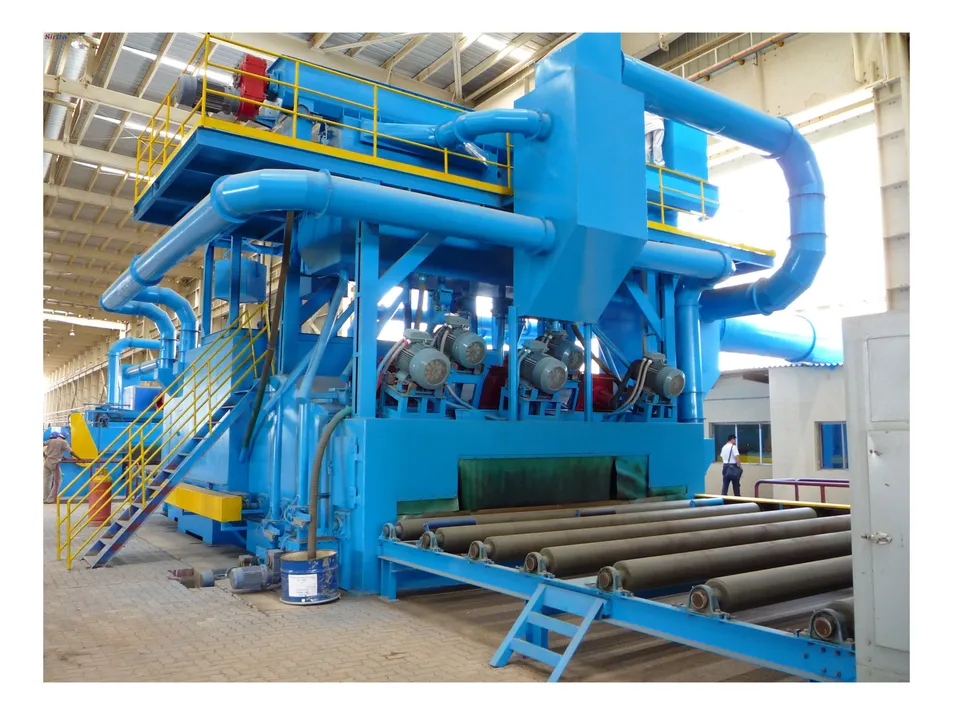

Blast Chamber Construction:
Composed of a main chamber and two auxiliary chambers with four layers of rubber curtains. Walls are protected by SPMn13 and 65Mn modular lining for easy replacement.
Environmental Efficiency

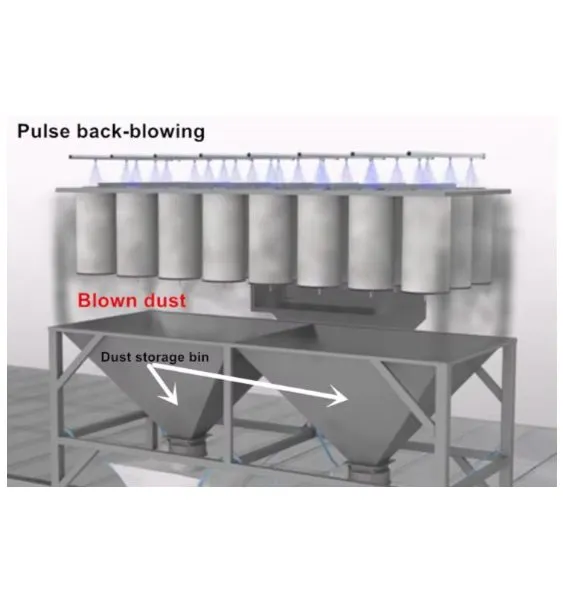

The dust removal system utilizes cartridge collectors and high-pressure ventilators (30 kW). Emission standards are effectively reduced to 80 grams per cubic meter with an airflow rate of 26,000 m³/h.
Frequently Asked Questions
Q1: How long is the production lead time for this machine?
Standard machines are often in stock for immediate delivery. For customized designs, the process from engineering to completion typically takes 30 to 50 days.
Q2: What are your quality control procedures?
We prioritize quality from start to finish. Each unit is fully assembled and undergoes rigorous testing before being approved for shipment.
Q3: What is the warranty period for the equipment?
The quality guarantee period is one year (12 months) from the date of commissioning. We use world-renowned component brands to ensure long-term reliability.
Q4: Do you provide overseas installation and training?
Yes, we provide overseas technical support. We can dispatch 1-2 technicians to assist with installation, commissioning, and staff training.
Q5: What documentation is provided with the machine?
We supply comprehensive English documentation, including foundation drawings, operation manuals, electrical wiring diagrams, and maintenance guides.
Q6: Can the machine be customized for specific steel dimensions?
Absolutely. We specialize in designing and manufacturing non-standard pretreatment equipment based on the specific dimensions and requirements you provide.
