Tandir Orthopedic Implants
Tandir Orthopedic Implants

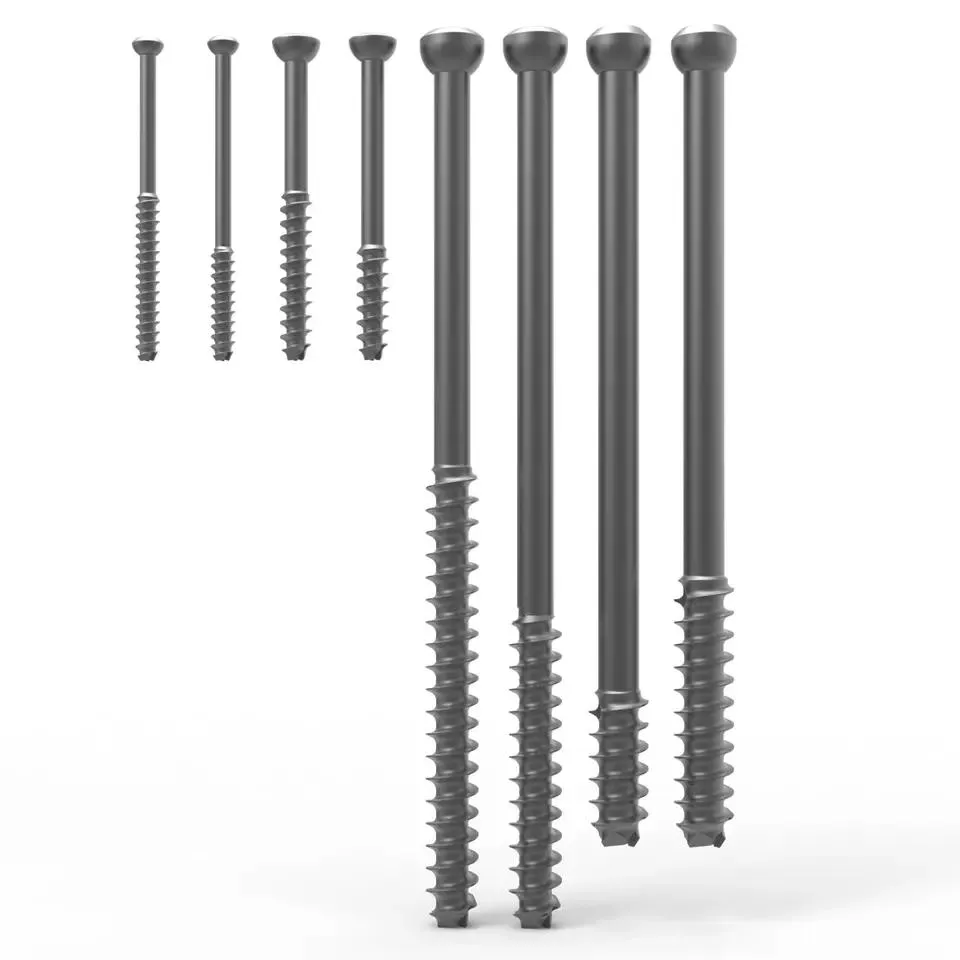

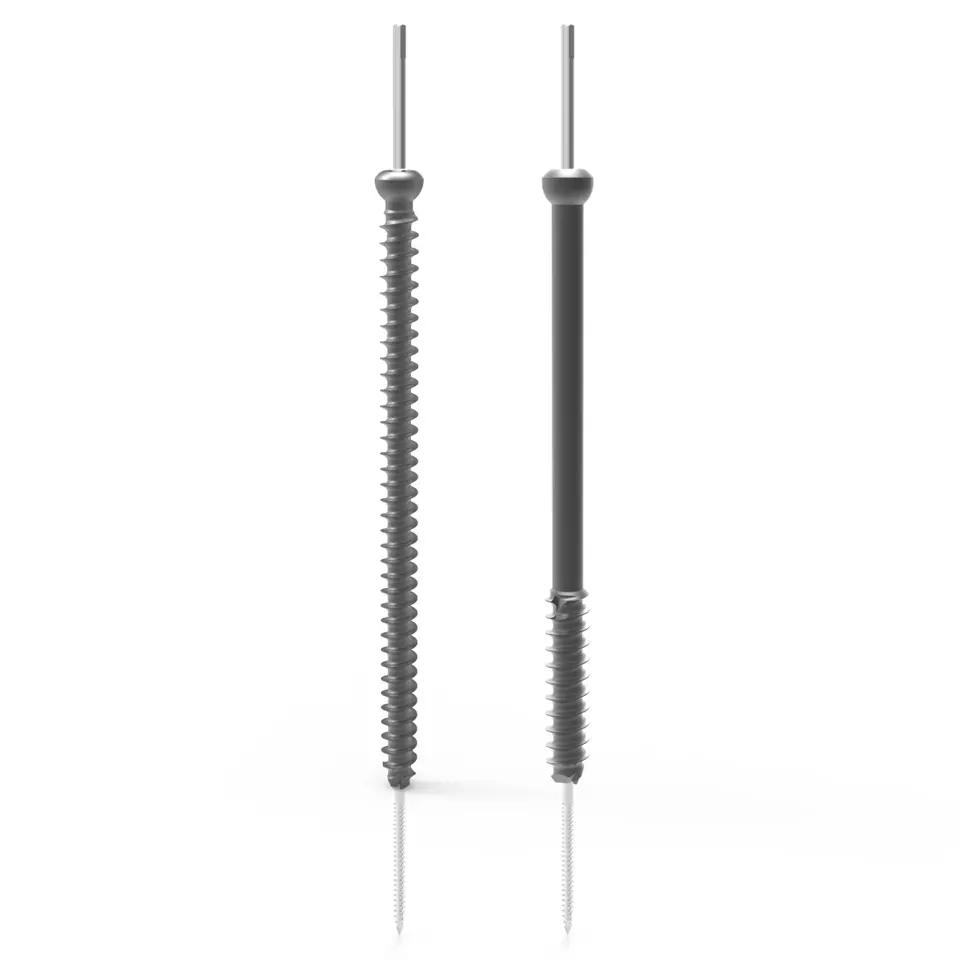

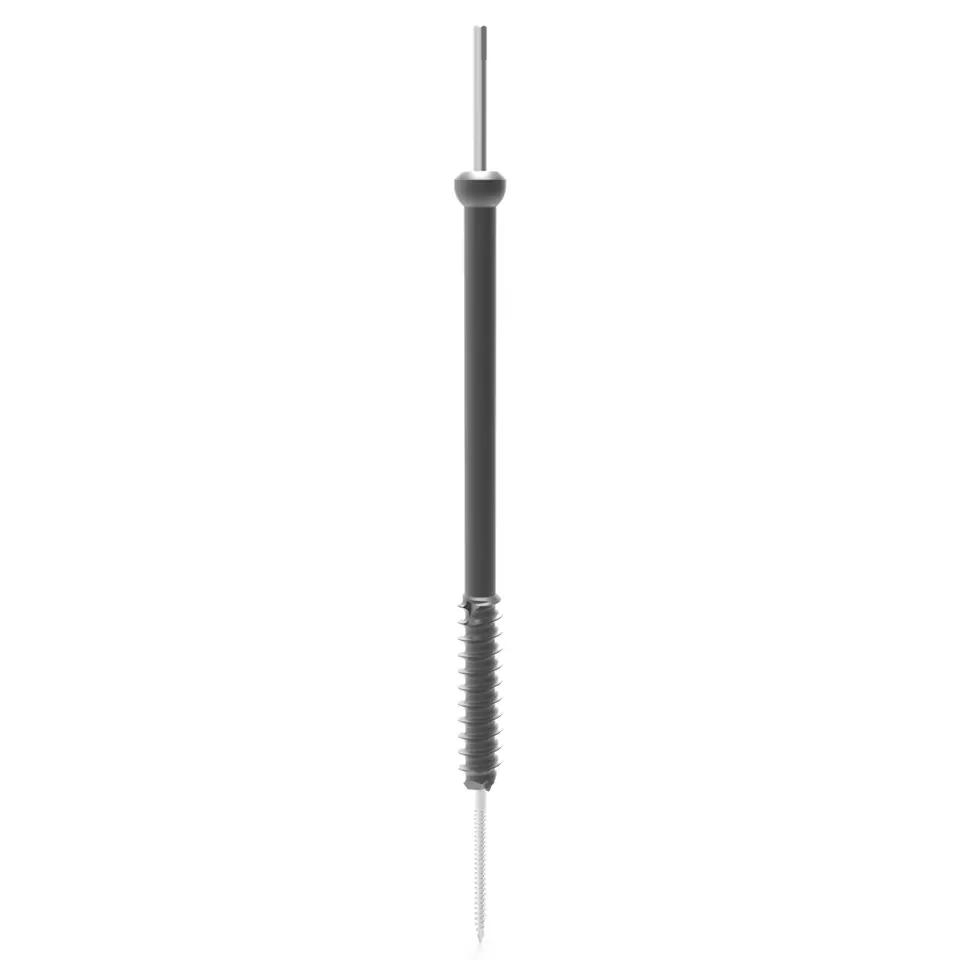

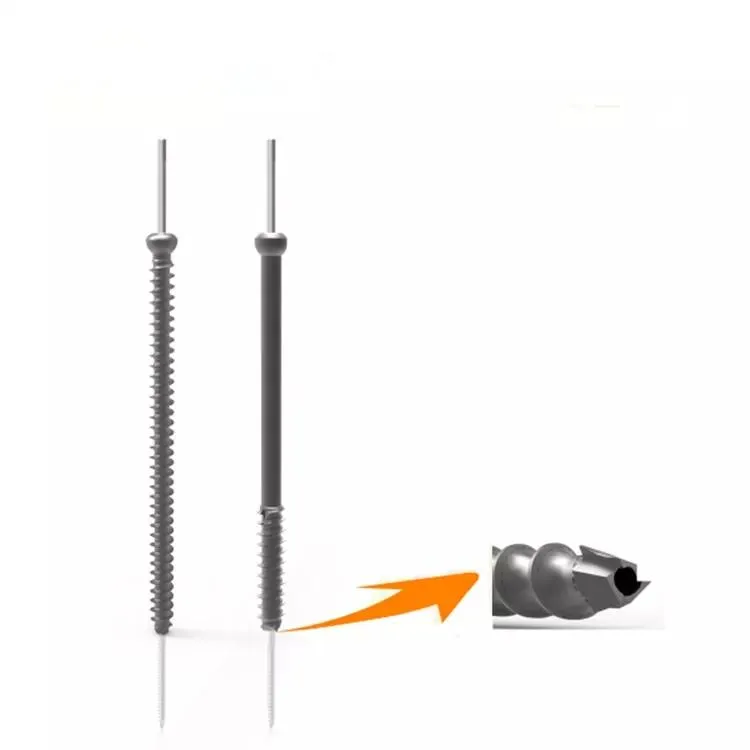

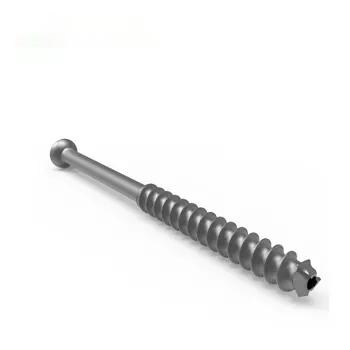

Cannulated Compression Screw
🔹 Compared with the conventional screw thread, Double head screw thread is deeper, the spiral angle is bigger.
🔹 The proximal thread pitch is 30% smaller than the distal thread and can make effectively pressure to the fracture.
🔹 Deeper and more sharp tooth design, easy to penetrate cortical bone, improve the gripping force.
🔹 Torx head can be better controlled and prevent skidding.
| Types | Diameter | Length |
|---|---|---|
| 3.0 1/3 Thread 1/2 Thread |
Stem 2mm Thread Bottom 3mm Diameter 2mm |
14-40mm (2mm intervals) |
| 4.0 1/3 Thread 1/2 Thread |
Stem 2.9mm Thread Bottom 4mm Diameter 2.4mm |
14-60mm (2mm intervals) 10-60mm (2mm intervals) |
| 6.5 1/2 Thread 1/3 Thread Full Thread |
Stem 4.5mm Thread Bottom 6.5mm Diameter 4mm |
45-100mm (5mm intervals) |
| 7.3 Short Thread Long Thread |
Stem 5mm Thread Bottom 7.3mm Diameter 4.8mm |
50-120mm (5mm intervals) Thread length 18mm/32mm |
*All the prices are only for reference. Exact price will be based on the latest quotation.
